Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Position the front end sheet metal diagonal brace to the radiator support and to the inner fender.

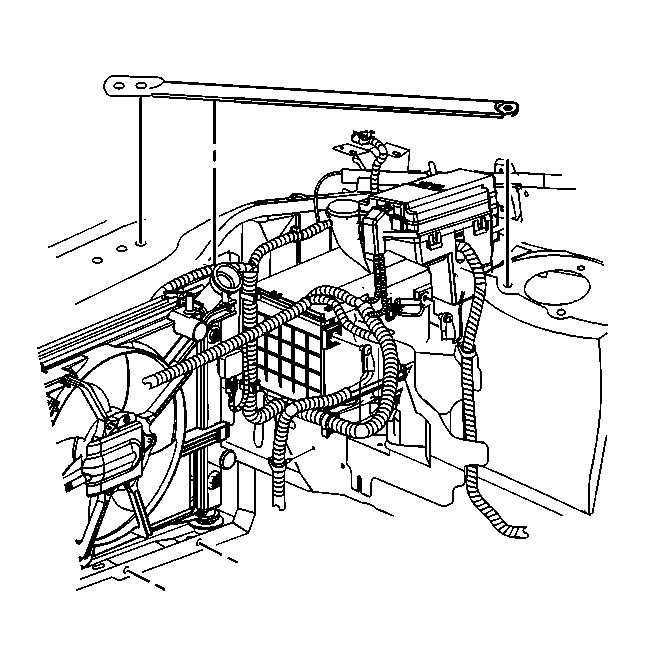

Fig 1: Front End Sheet Metal Diagonal Brace
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the bolts to the front end sheet metal diagonal brace at the radiator support.
Tighten: Tighten the front end sheet metal diagonal brace at radiator support bolts to 10 N.m (89 lb in).

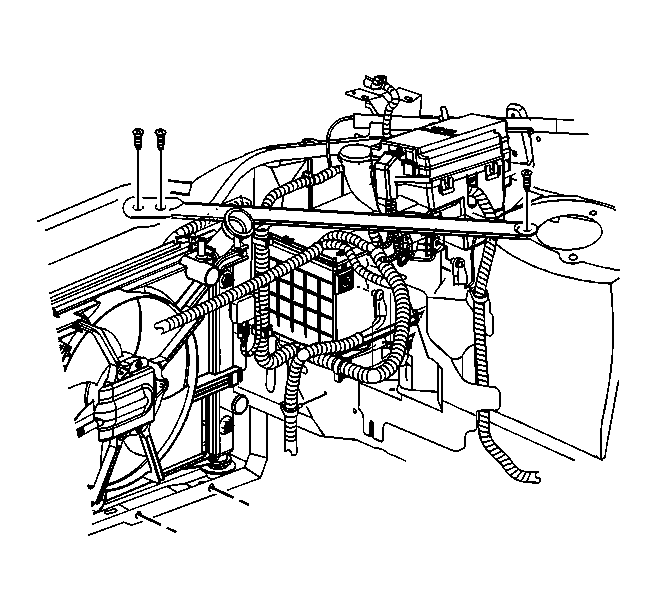

Fig 2: Locating Front End Sheet Metal Diagonal Brace Bolts
Courtesy of GENERAL MOTORS CORP.
Install the bolts to the front end sheet metal diagonal brace at the inner fender.
Tighten: Tighten the front end sheet metal diagonal brace to the inner fender bolts to 10 N.m (89 lb in).
Reposition the underhood wiring junction block to the front fender diagonal brace. Refer to Underhood Electrical Center or Junction Block Replacement in Wiring Systems.

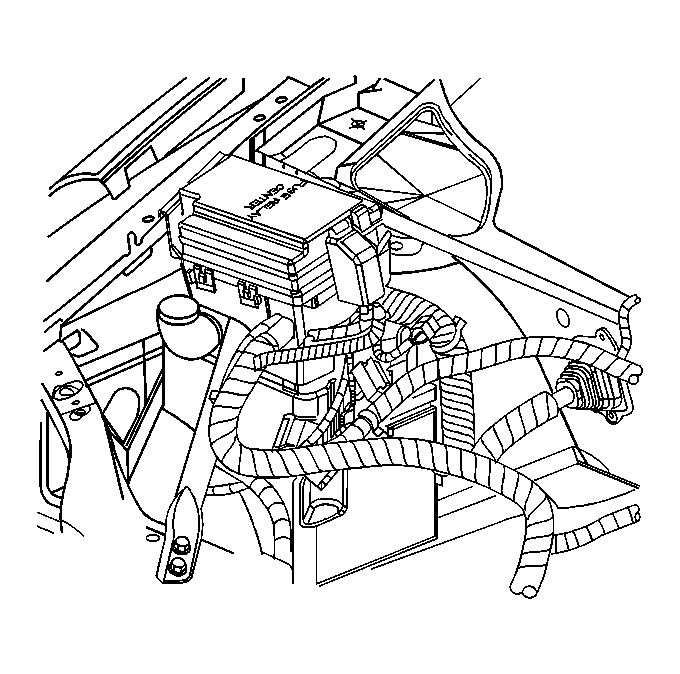

Fig 3: Identifying Underhood Wiring Junction Block
Courtesy of GENERAL MOTORS CORP.
Close the hood.
