Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front end sheet metal diagonal brace to the radiator support and to the inner fender.
    Fig 1: View Of Front End Sheet Metal Diagonal Brace
    GM621978Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts to the front end sheet metal diagonal brace at the radiator support.

    Tighten:  Tighten the front end sheet metal diagonal brace at radiator support bolts to 10 N.m (89 lb in).

    Fig 2: Locating Front End Sheet Metal Diagonal Brace To Inner Fender Bolt
    GM621973Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts to the front end sheet metal diagonal brace at the inner fender.

    Tighten:  Tighten the front end sheet metal diagonal brace to the inner fender bolts to 10 N.m (89 lb in).

  4. If removed, reposition the cruise control module to the front fender diagonal brace. Refer to Cruise Control Module Replacement in Cruise Control.

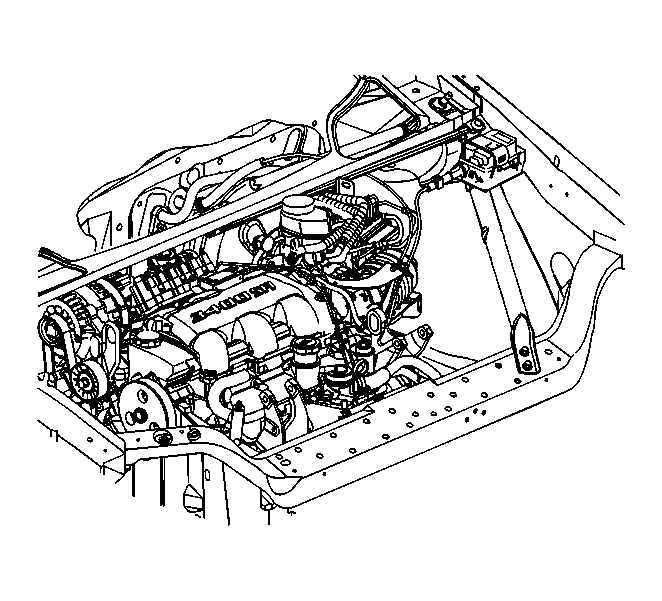

    Fig 3: View Of Cruise Control Module
    GM625105Courtesy of GENERAL MOTORS CORP.
  5. Reposition the engine coolant reservoir to the front fender diagonal brace. Refer to Coolant Recovery Reservoir Replacement in Engine Cooling.
    Fig 4: Identifying Engine Coolant Reservoir
    GM621975Courtesy of GENERAL MOTORS CORP.
  6. Install the engine coolant heater harness to the front fender diagonal brace, if equipped.
    Fig 5: View Of Engine Coolant Heater Harness
    GM621979Courtesy of GENERAL MOTORS CORP.
  7. Close the hood.
