Theft Deterrent System Wiring Schematics

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

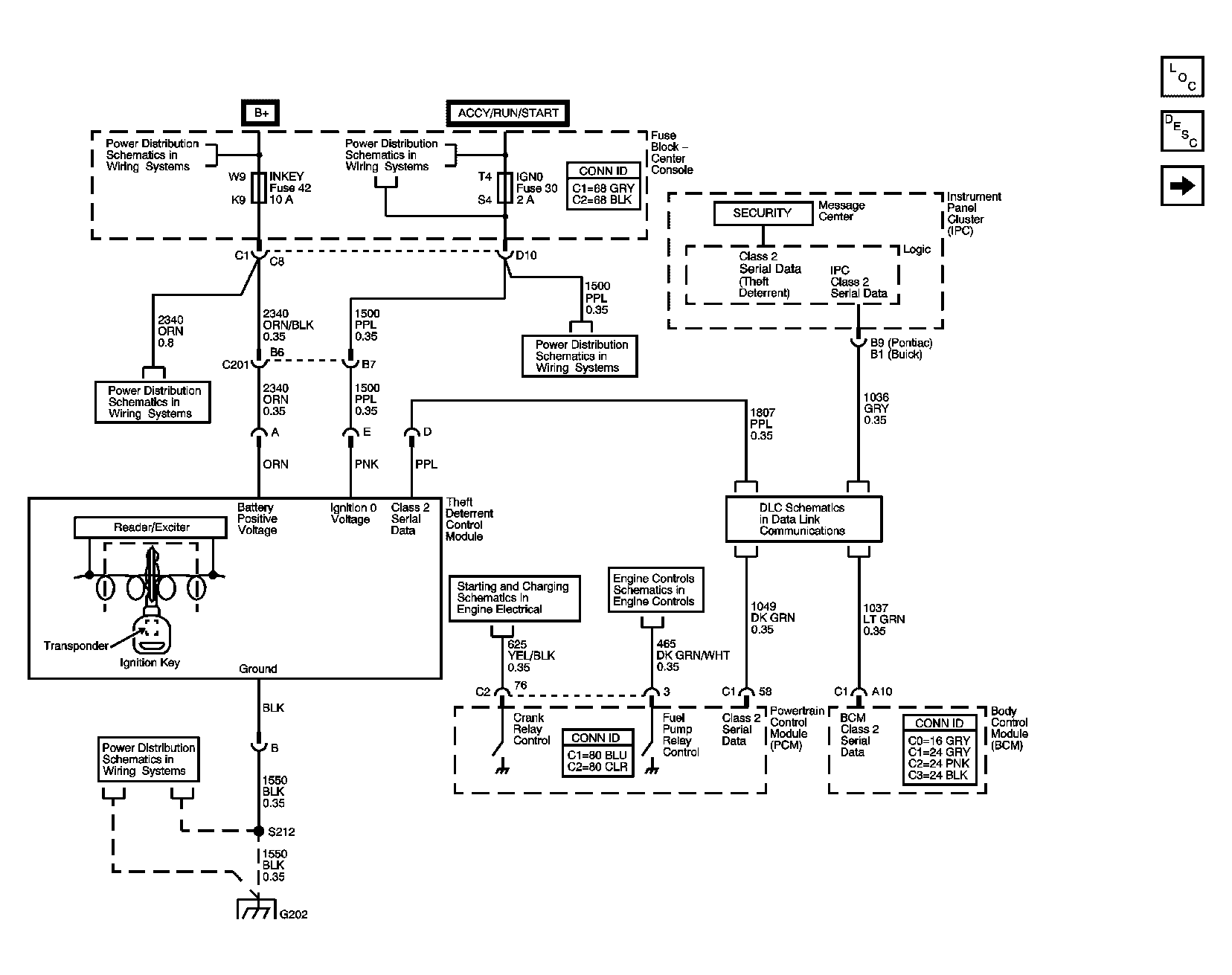

Fig 1: Fuel & Starter Disabling Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

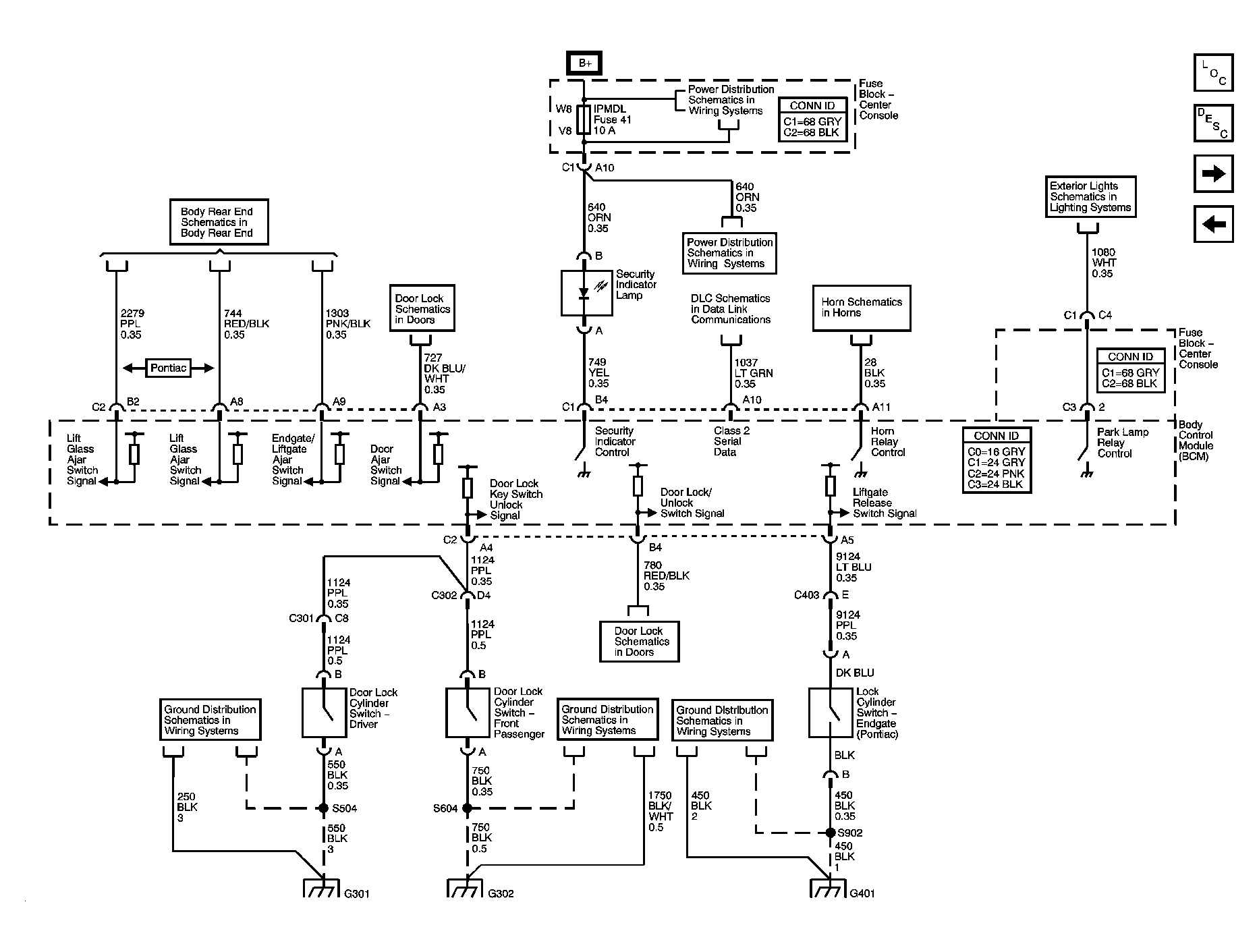

Fig 2: Indicators, Intrusion Detection & Warning Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Door Switches Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Lift Window, Endgate & Liftgate Switches Schematic Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
