Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the upper fascia to the lower fascia.

Fig 1: View of Upper & Lower Fascia (Aztek)
Courtesy of GENERAL MOTORS CORP.
Install the fascia outer support to the fascia.
Install the grilles. Refer to Fascia Grille Replacement (Aztek) or Fascia Grille Replacement (Rendezvous) .
Position the fascia to the vehicle.
Align the alignment pins of the fascia to the front fenders and moldings.
Install the push-in the retainers starting at the center, to the front upper bumper fascia support.

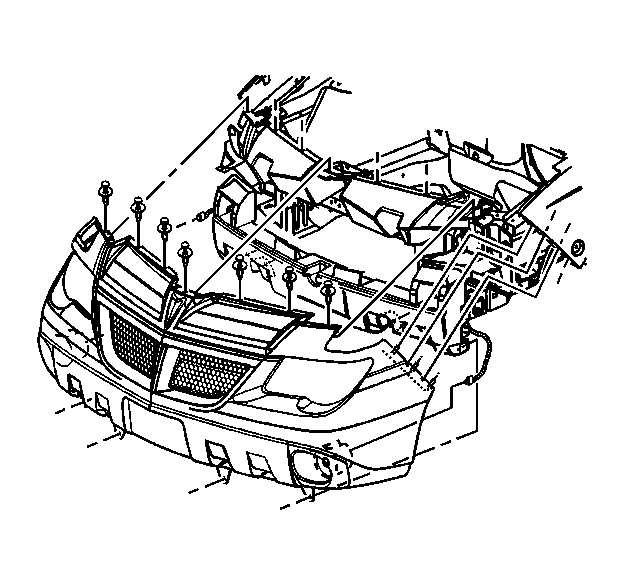

Fig 2: Identifying Upper Bumper Fascia Support Push-In Retainers (Aztek)
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the bolts to the front fascia at the front fenders.
Tighten: Tighten the front fascia bolts to 10 N.m (89 lb in).

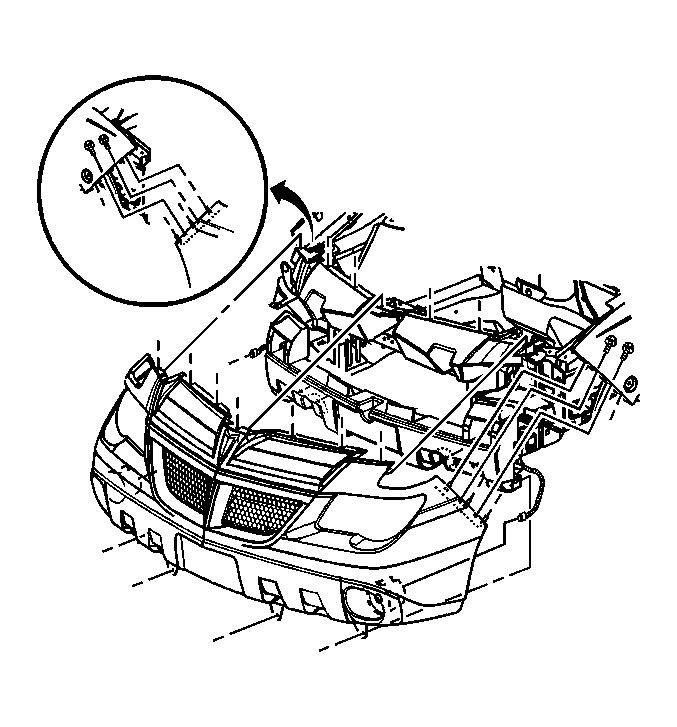

Fig 3: View Of Front Bumper Fascia Bolts (Aztek)
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Push the retainer tabs up and against the front bumper energy absorber.
Install the push-in retainers to the fascia at the energy absorber.

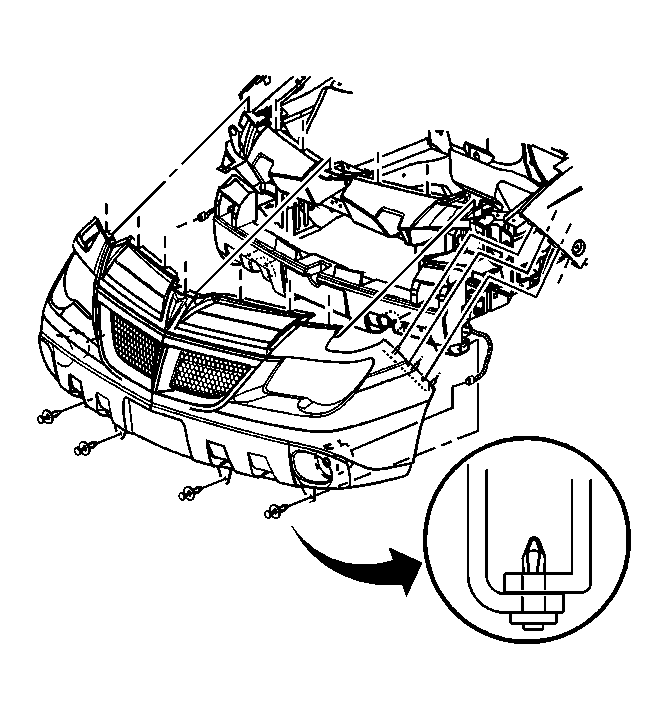

Fig 4: Locating Front Bumper Energy Absorber Push-In Retainers (Aztek)
Courtesy of GENERAL MOTORS CORP.
Install the fog lamps. Refer to Fog Lamp Replacement - Front (Aztek) or Fog Lamp Replacement - Front (Rendezvous) in Lighting Systems.
Install the headlamps. Refer to Headlamp Assembly or Headlamp Bulb Replacement (Aztek) or Headlamp Assembly or Headlamp Bulb Replacement (Rendezvous) in Lighting Systems.
Install the front fender liners. Refer to Front Fender Liner Replacement in Body Front End.
