Rear Parking Assist Component Views
WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

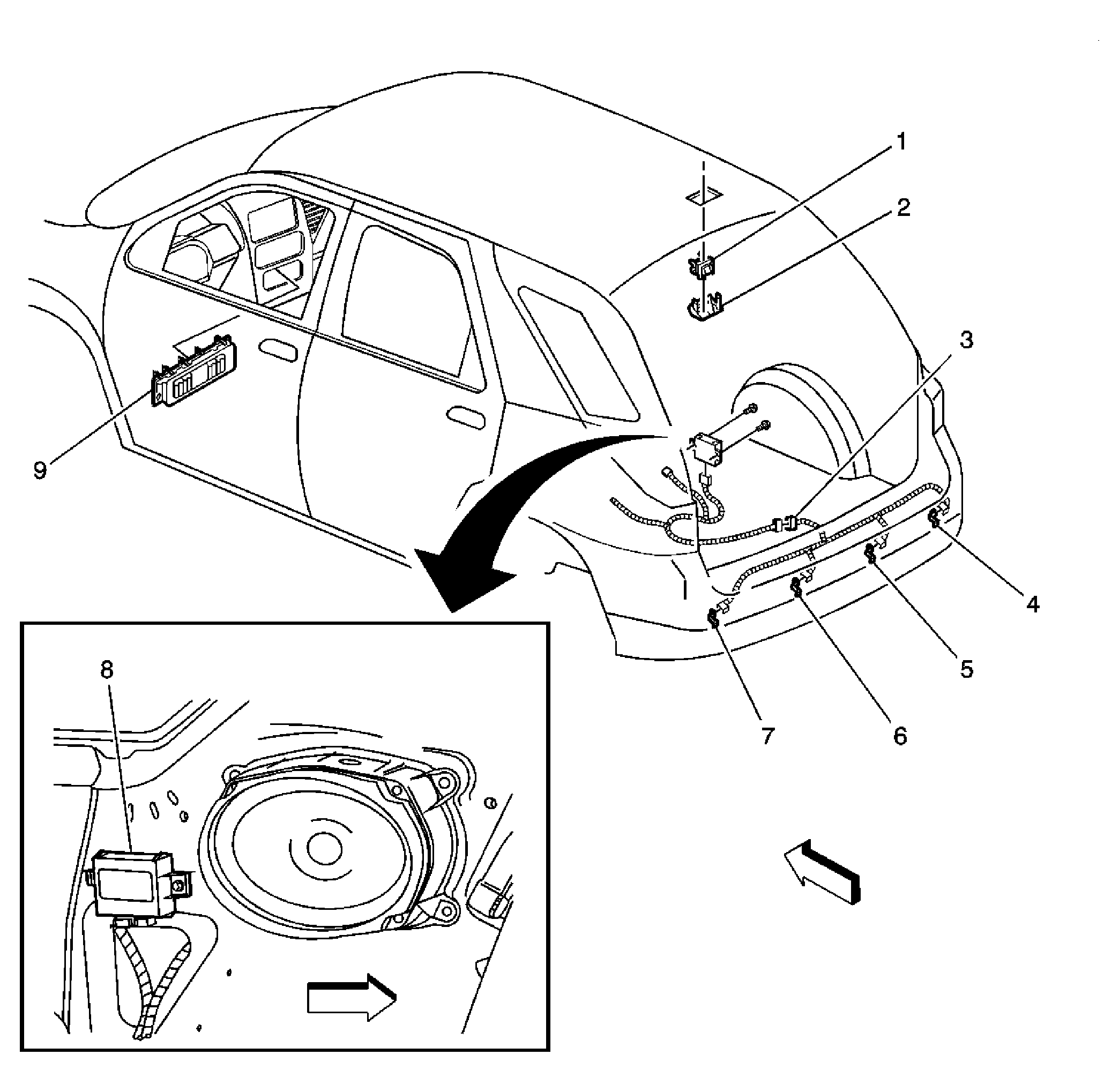

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Rear Parking Assist (RPA) Display |
| 2 |
Rear Parking Assist (RPA) Display Housing |
| 3 |
Connector C411 |
| 4 |
Object Sensor - RR Corner |
| 5 |
Object Sensor - RR Middle |
| 6 |
Object Sensor - LR Middle |
| 7 |
Object Sensor - LR Corner |
| 8 |
Rear Parking Assist (RPA) Module |
| 9 |
Rear Wiper/Washer, Liftgate Release and Rear Parking Assist (RPA) Switch Assembly |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Body Control Module (BCM) C2 |
| 2 |
Body Control Module (BCM) C1 |
| 3 |
Body Control Module (BCM) C0 |
| 4 |
Fuse Block - Center Console C2 |
| 5 |
Fuse Block - Center Console C1 |
| 6 |
Rear Parking Assist (RPA) Diagnostic Connector |
