Passenger Seat Schematics

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

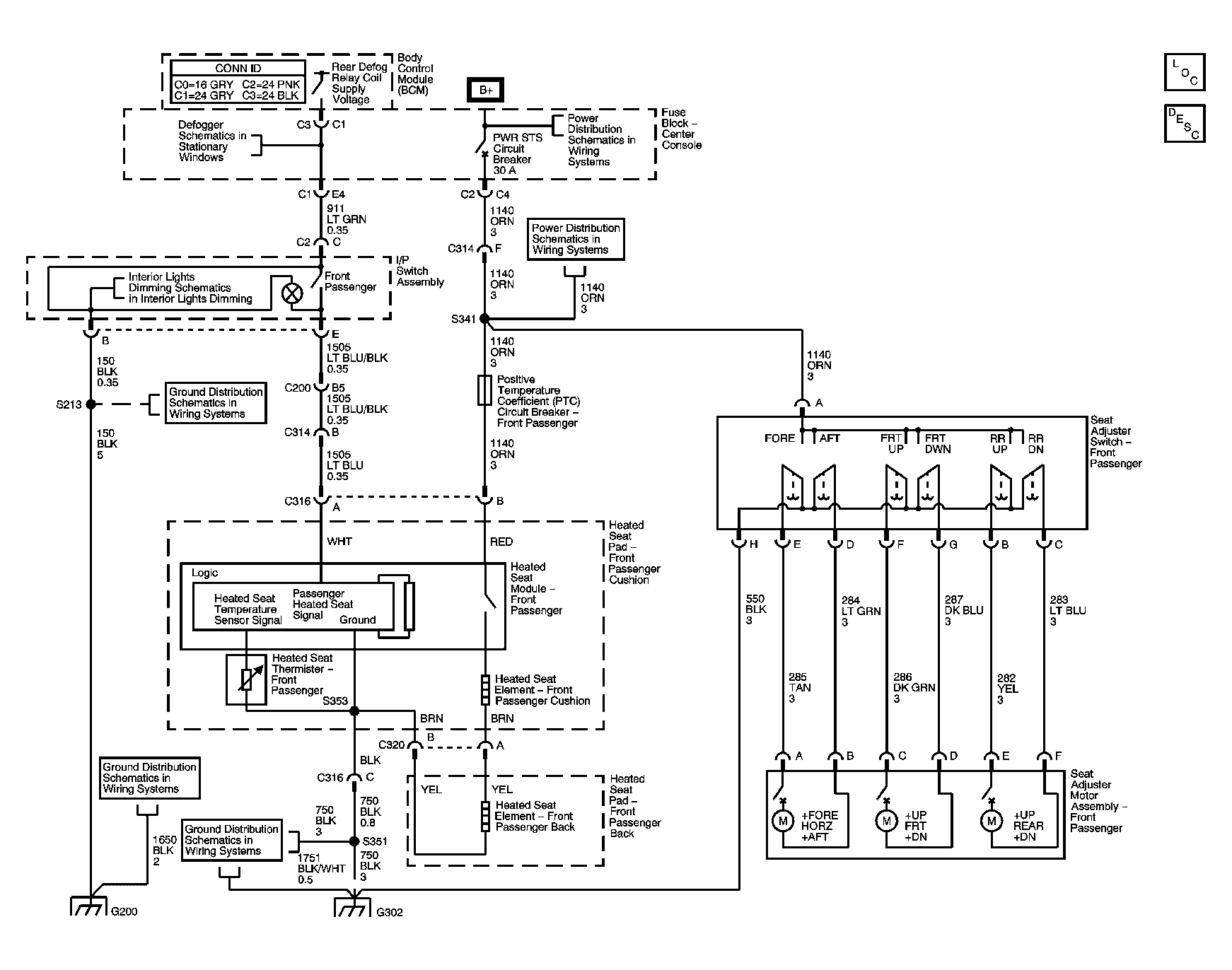

Fig 1: Passenger Power and Heated Seat Schematic

Courtesy of GENERAL MOTORS CORP.
