Body Rear End Schematics

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

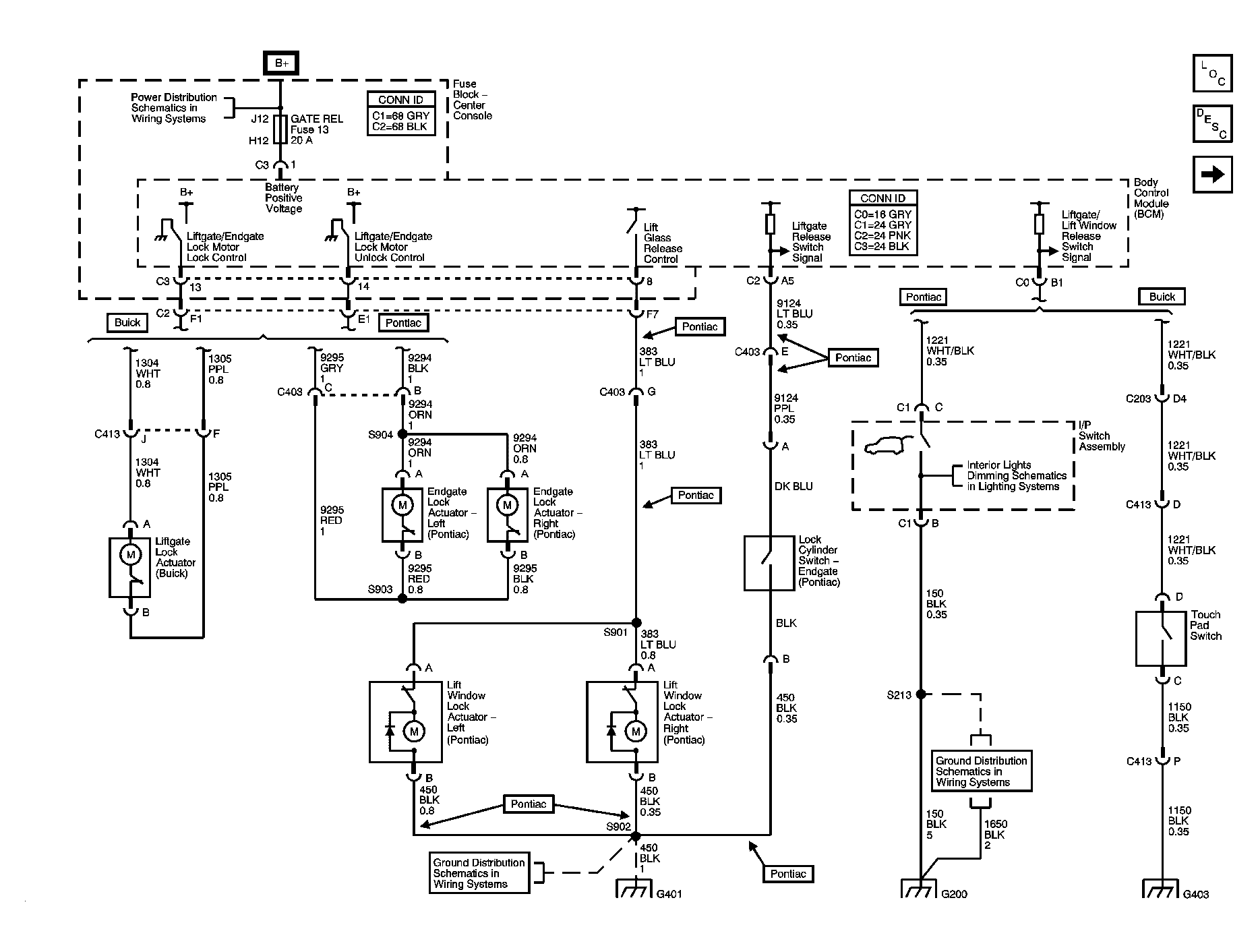

Fig 1: Lift Window, Endgate & Liftgate Actuators Schematics
GM1394255Courtesy of GENERAL MOTORS CORP.

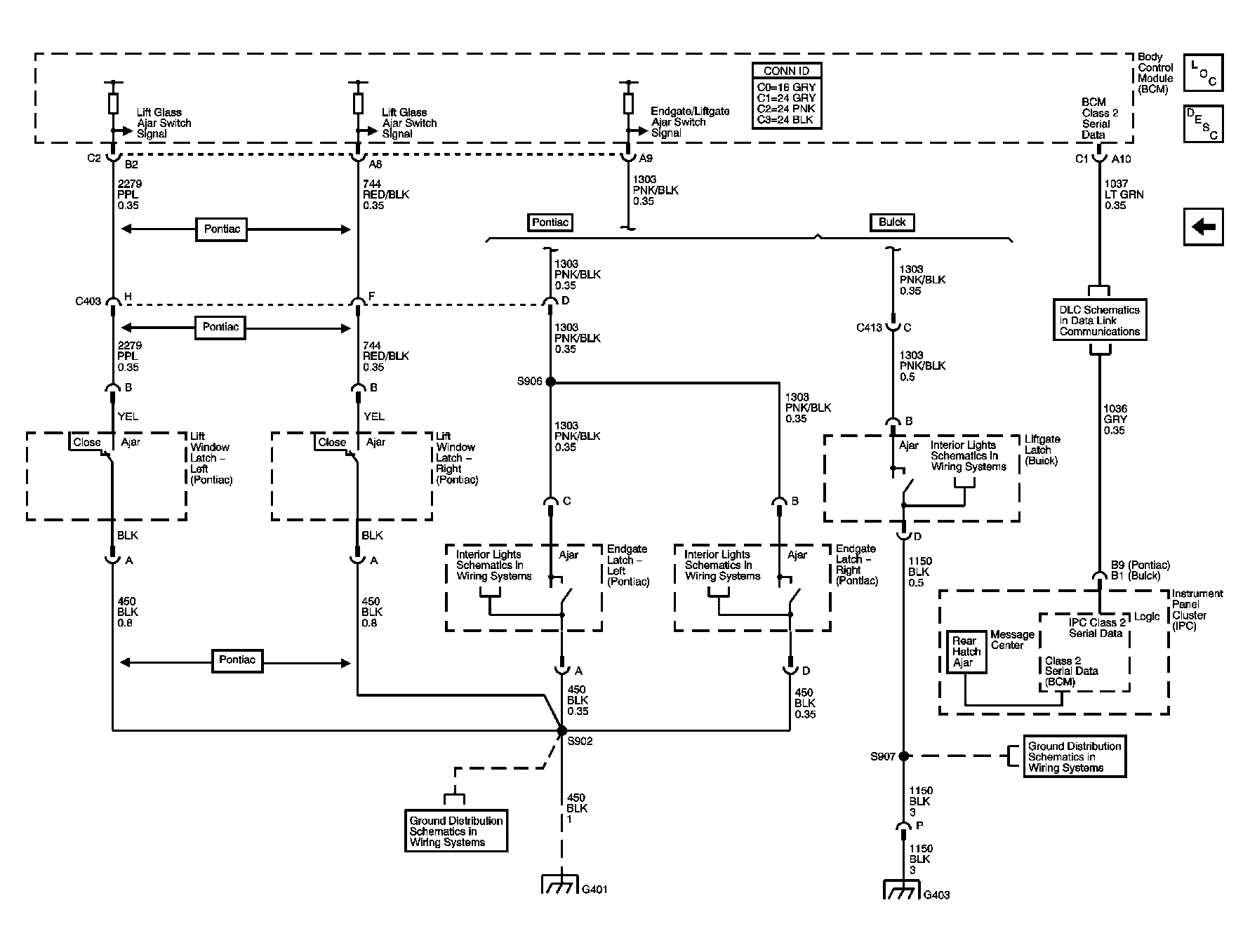

Fig 2: Ajar Indicators Schematics
GM845282Courtesy of GENERAL MOTORS CORP.
