Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the endgate sill plate. Refer to Door Sill Plate Replacement - Endgate in Interior Trim.
  3. Pull the liftgate weatherstrip from the liftgate opening pinch-weld flange.

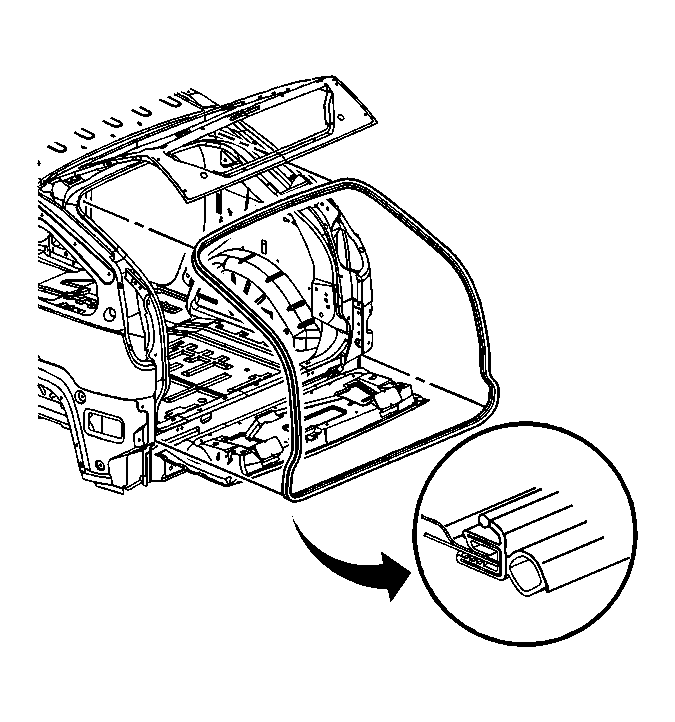

    Fig 1: Identifying Liftgate Weatherstrip (Aztek)
    GM621908Courtesy of GENERAL MOTORS CORP.
  4. Clean all the adhesive from the liftgate opening pinch-weld flange using GM P/N 8984 adhesive remover or equivalent.
