Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the endgate.
  2. Support the endgate in the open position.
  3. Remove the bolts from the endgate support cable.
  4. Remove the endgate support cable from the endgate.

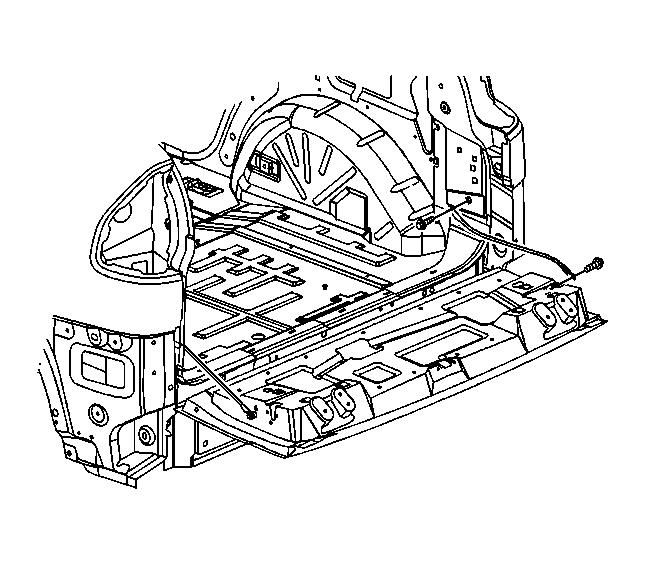

  5. Fig 1: View Of Endgate Support Cable
    GM621898Courtesy of GENERAL MOTORS CORP.
