Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
  1. Open the endgate.
    NOTE: Refer to Liftgate/Hood Assist Rod Notice in Cautions and Notices.
  2. Lift up the retainer clips on the endgate assist rods using a small flat-bladed tool.
    Fig 1: Releasing Endgate Assist Rod Retainer Clips Using Small Flat-Bladed Tool
    GM625168Courtesy of GENERAL MOTORS CORP.
  3. Remove the upper end of the assist rods from the ball joint.

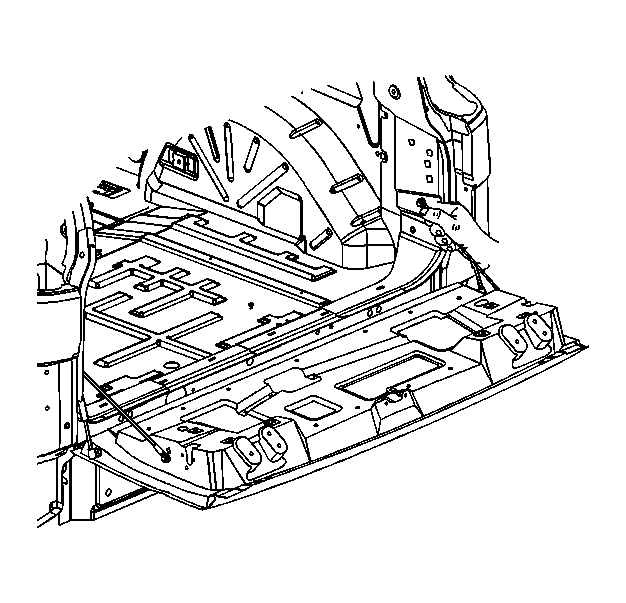

    Fig 2: Locating Upper End Of Assist Rods
    GM625166Courtesy of GENERAL MOTORS CORP.
  4. Remove the lower end of the assist rods from the ball joint.
    Fig 3: Locating Lower End Of Assist Rods
    GM625164Courtesy of GENERAL MOTORS CORP.
  5. Remove the assist rods from the endgate.
    Fig 4: Assist Rod View
    GM625163Courtesy of GENERAL MOTORS CORP.
