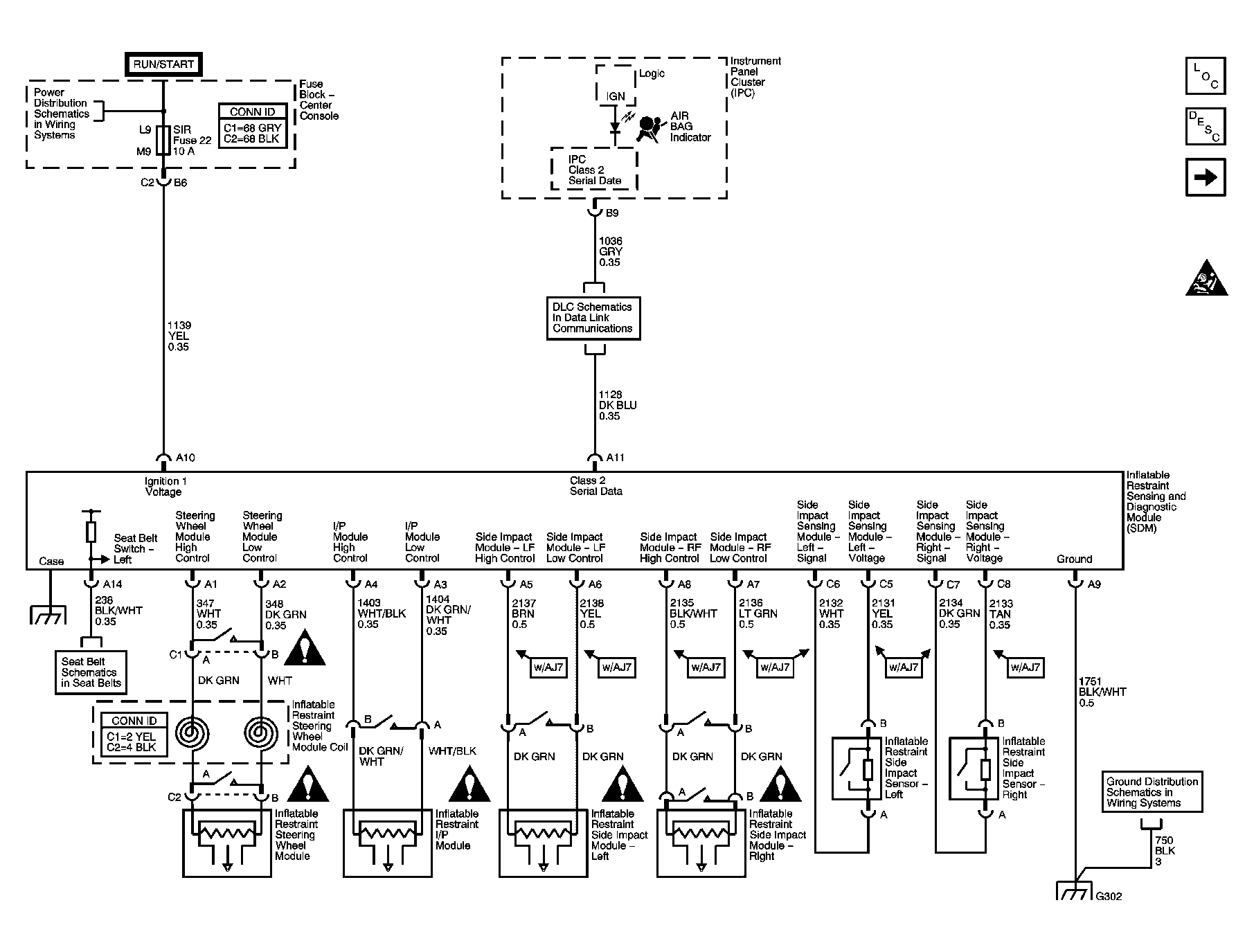

Fig 1: Pontiac Schematic
Courtesy of GENERAL MOTORS CORP.

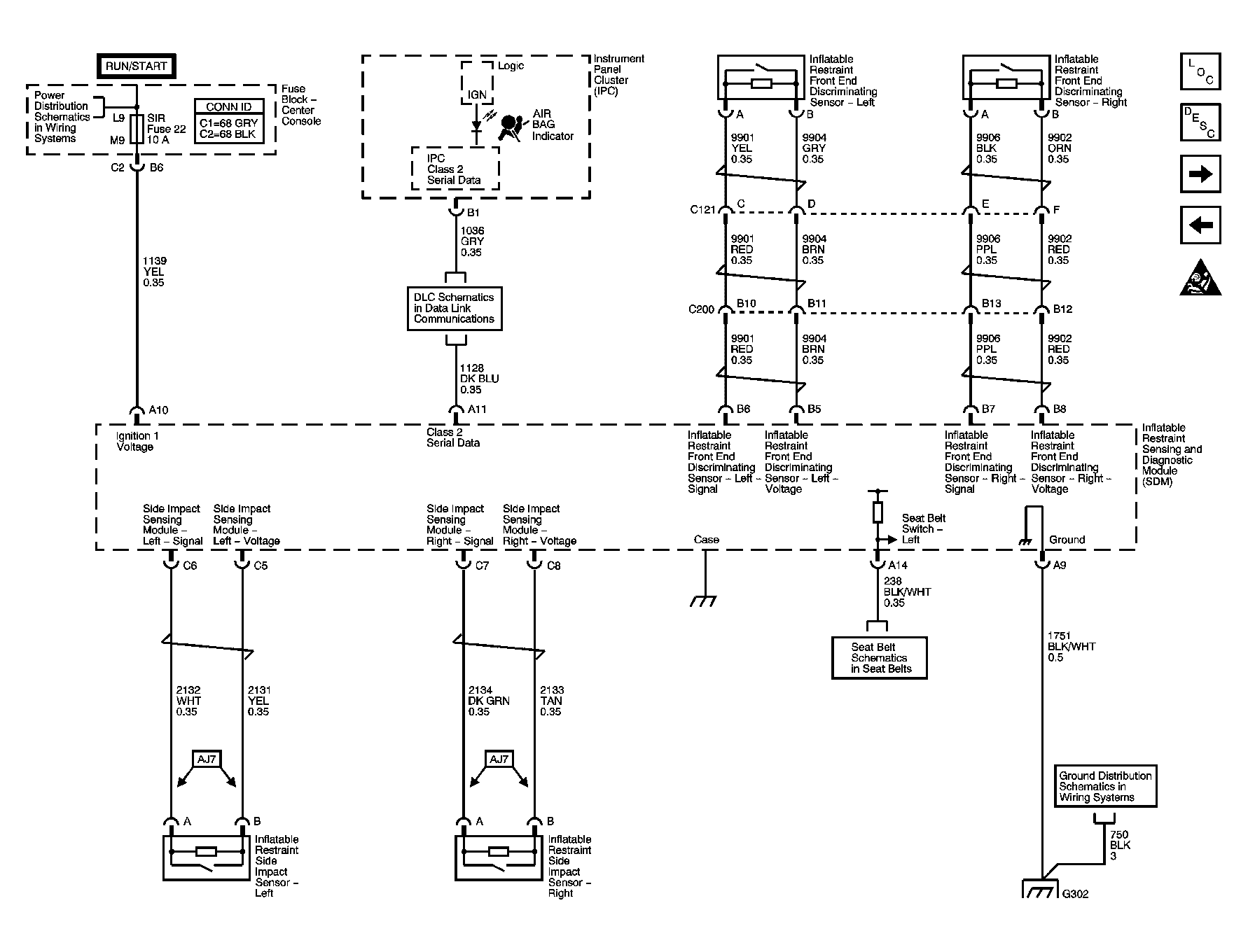

Fig 2: Power, Ground, Class 2 Serial Data and Inflatable Restraint Sensors Schematic - Buick
Courtesy of GENERAL MOTORS CORP.

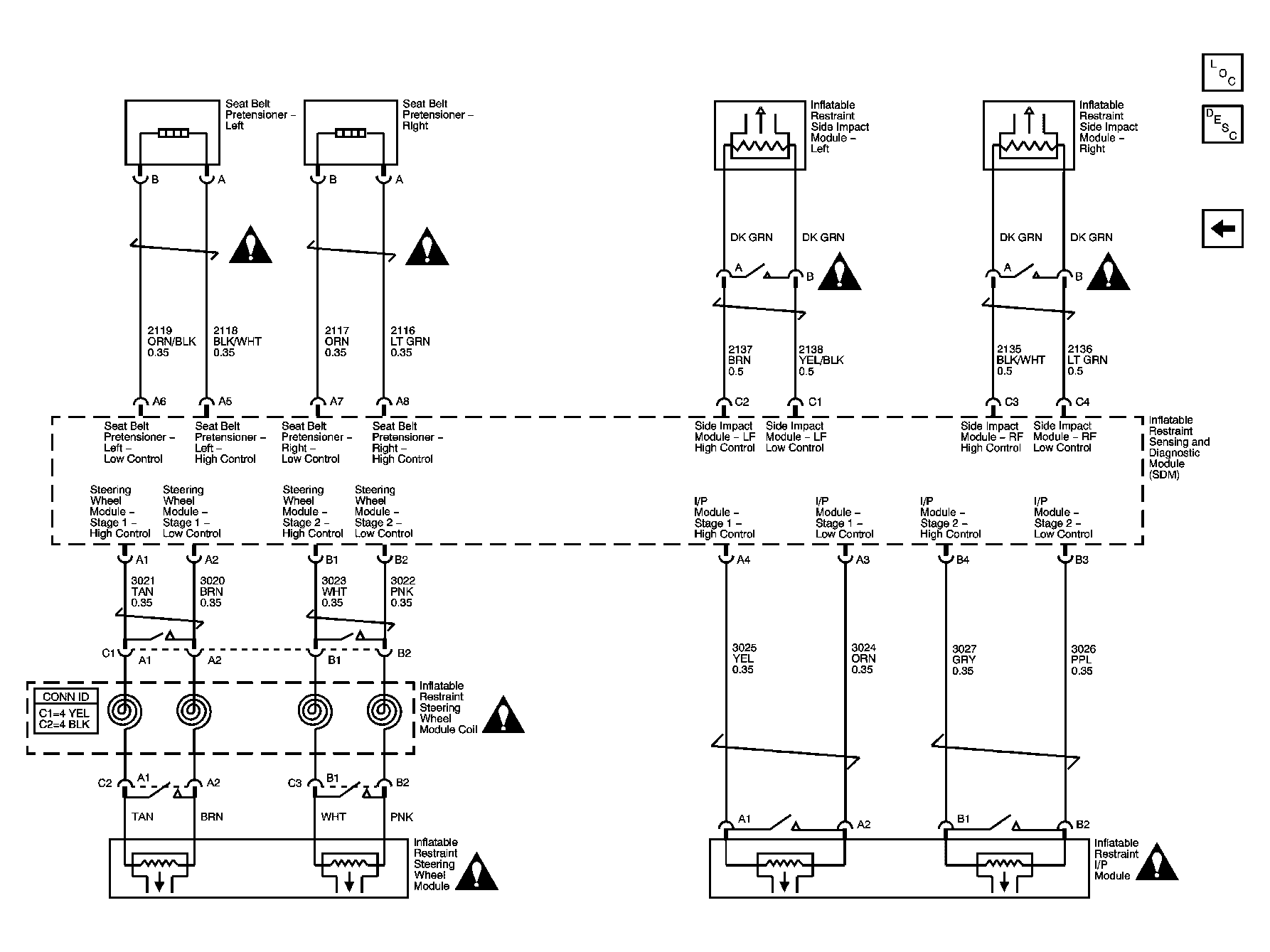

Fig 3: Seat Belt Pretensioners and Inflatable Restraint Modules Schematic - Buick
