Transaxle Control Module: Removal
WARNING: This page is about a different car, the 2003 Saturn Vue and 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

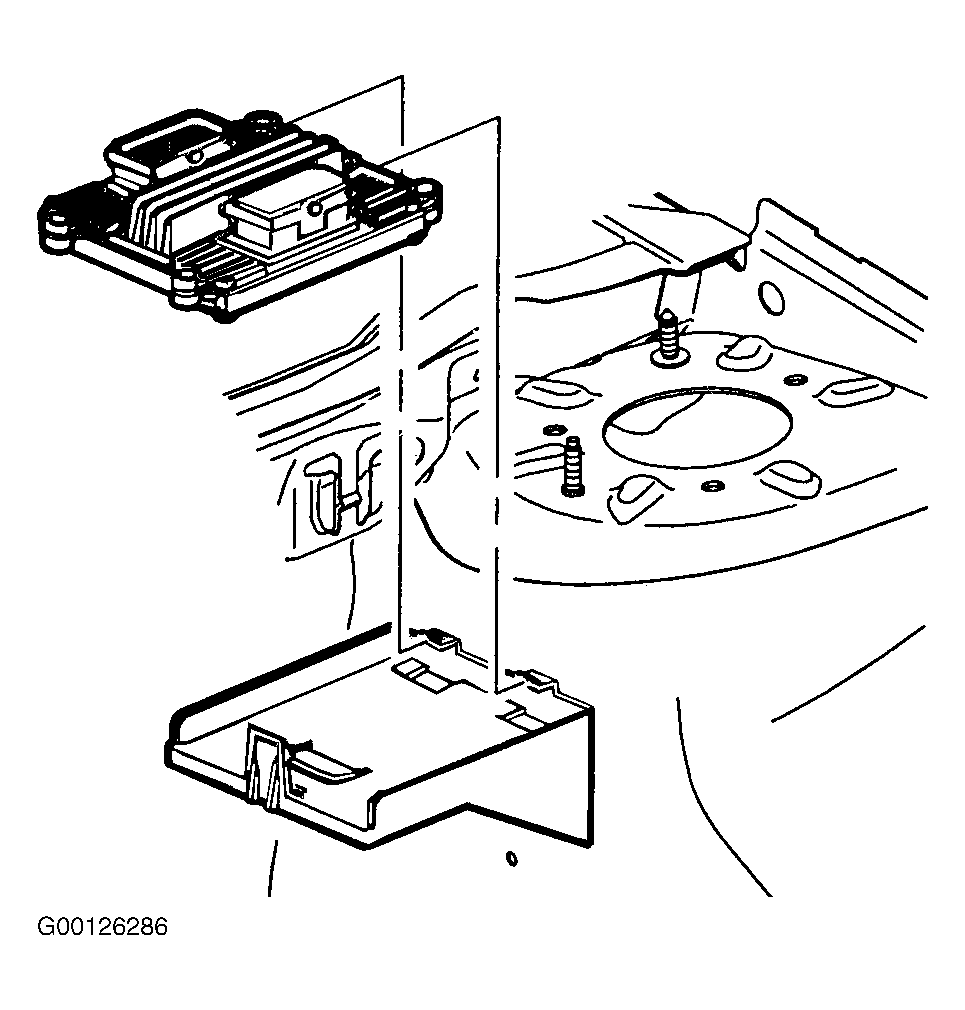

Turn ignition off. Pull retaining tang from the TCM and rotate the TCM up. Remove the TCM from bracket. Disconnect TCM harness connectors. See Figure .
