Removal Passenger-side

WARNING: This page is about a different car, the 2000 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, See AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

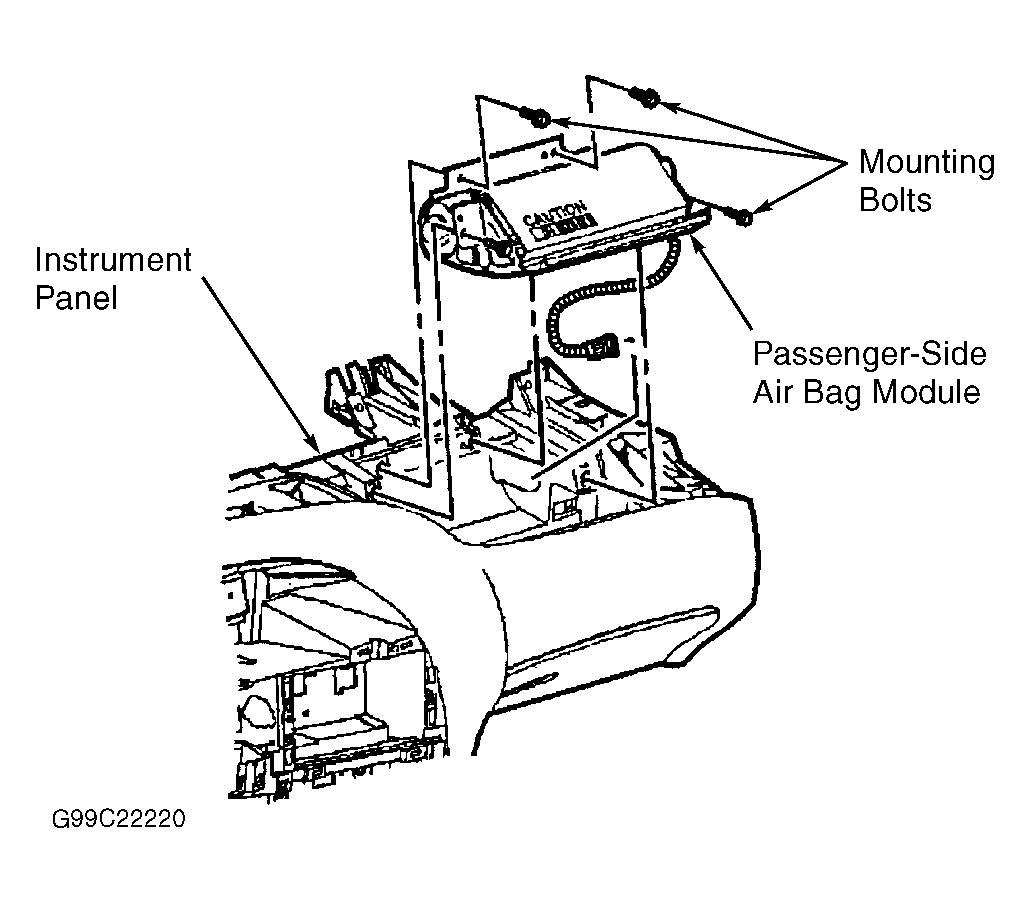

  2. Remove instrument panel trim pad. See INSTRUMENT PANEL UPPER TRIM PAD . Remove air bag module mounting fasteners. Remove air bag module from instrument panel cross-beam. See Figure.
