Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wire harness to the steering column.

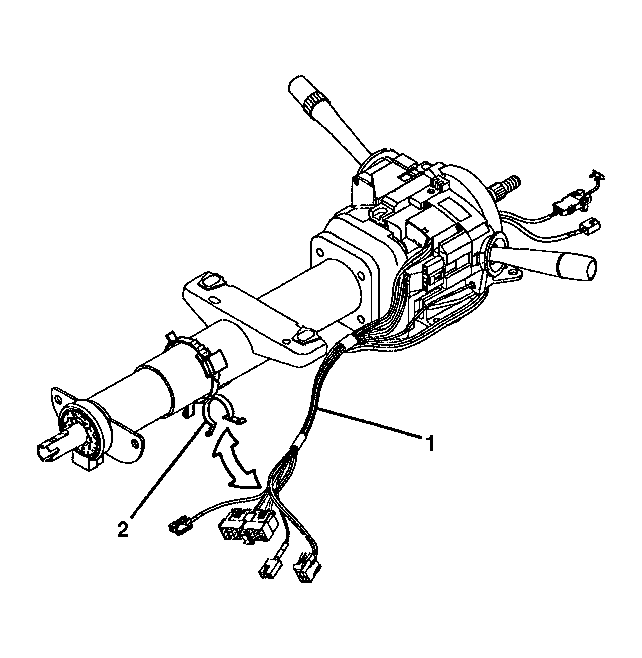

    2. Fig 1: View Of Wiring Harness In Steering Column Harness Strap
    GM322946Courtesy of GENERAL MOTORS CORP.
  2. Replace all the tie straps (2).
  3. Connect all the electrical connectors.
  4. Install the steering column. Refer to Steering Column Replacement .
