Steering Wheel and Column Component Views
WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

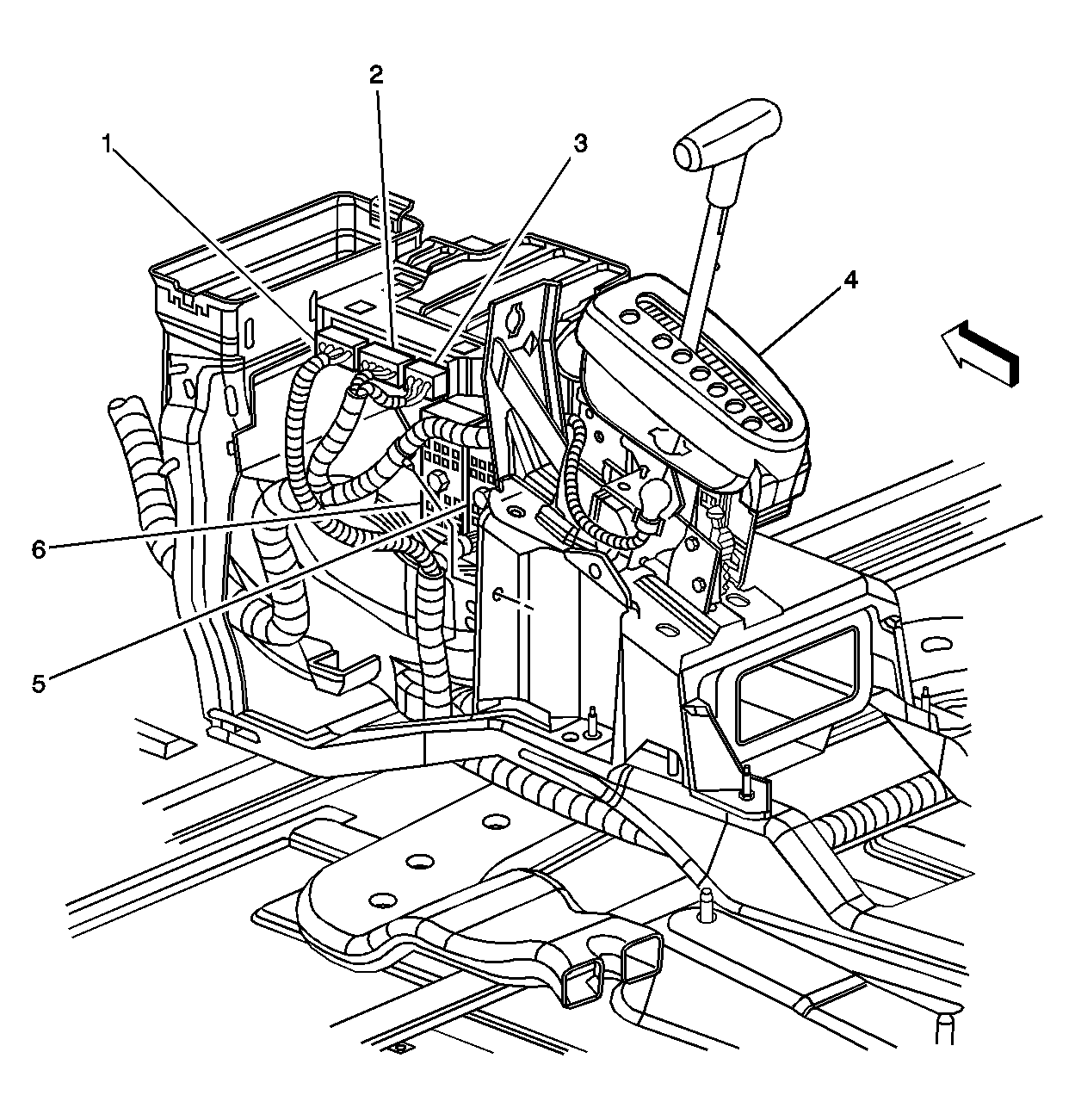

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Body Control Module (BCM) C2 |
| 2 |
Body Control Module (BCM) C1 |
| 3 |
Body Control Module (BCM) C0 |
| 4 |
Automatic Transmission Floor Shift Control |
| 5 |
Fuse Block - Center Console C2 |
| 6 |
Fuse Block - Center Console C1 |

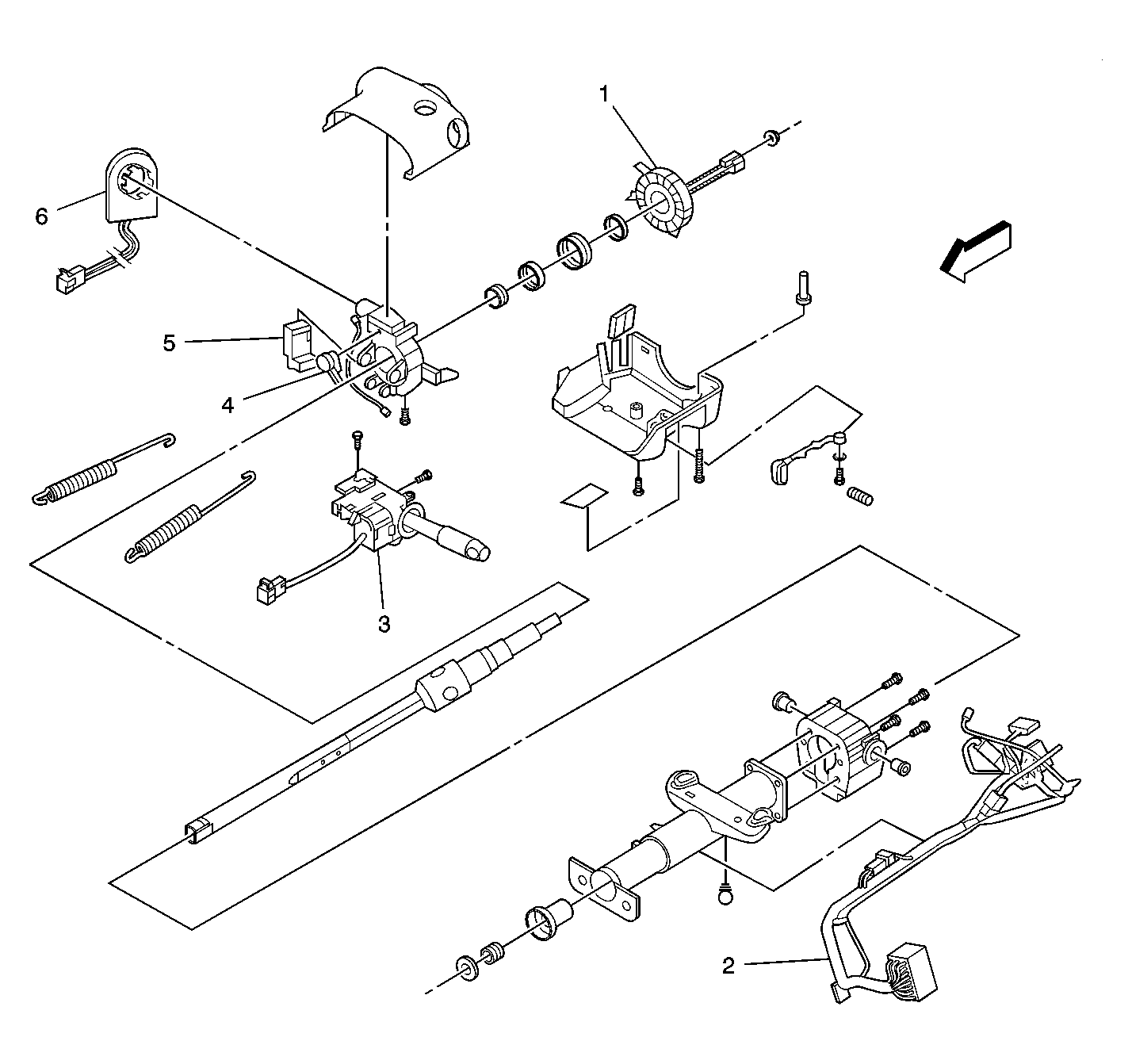

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inflatable Restraint Steering Wheel Module |
| 2 |
Wire Harness Assembly |
| 3 |
Multifunction Switch |
| 4 |
Ignition Lock Cylinder Control Actuator |
| 5 |
Ignition Switch |
| 6 |
Theft Deterrent Module |
