Installation Procedure

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

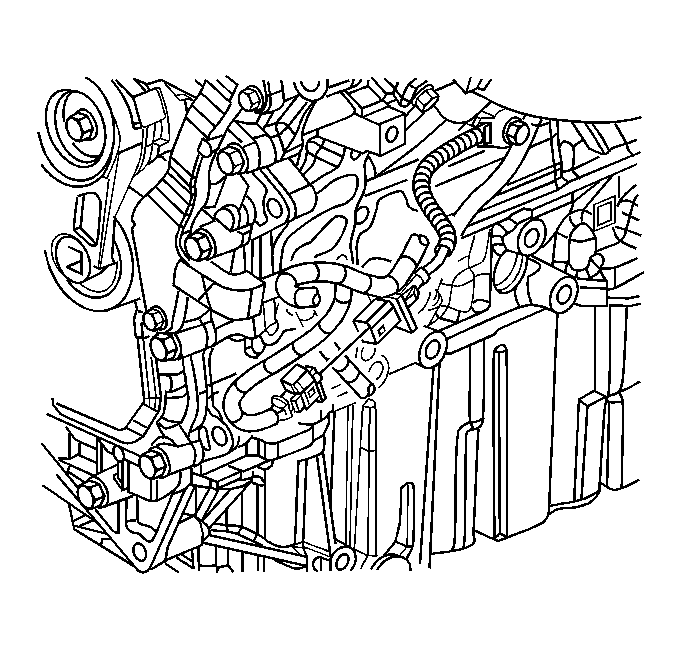

    Fig 1: View Of KS Electrical Connector
    GM1394033Courtesy of GENERAL MOTORS CORP.
  1. Connect the KS electrical connector.
    2. Fig 2: Locating Knock Sensor (KS) Electrical Connector Bracket Bolt
    GM1404028Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the KS and the knock sensor bolt.

    Tighten:  Tighten the KS bolt to 23 N.m (17 lb ft).

  3. Install the KS electrical connector bracket and the bracket bolt (2).

    Tighten:  Tighten the KS electrical connector bracket bolt (2) to 65 N.m (48 lb ft).

  4. Lower the vehicle.
