Removal Procedure
WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition OFF.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
- Remove the catalytic converter. Refer to Catalytic Converter Replacement in Engine Exhaust.
- Disconnect the intermediate steering shaft from the steering gear. Refer to Intermediate Steering Shaft Replacement in Steering Wheel and Column.
- Position a utility stand beneath the rear center section of the frame in order to support the powertrain.
- Remove the frame rear bolts.
- Carefully lower the powertrain in order to provide access.

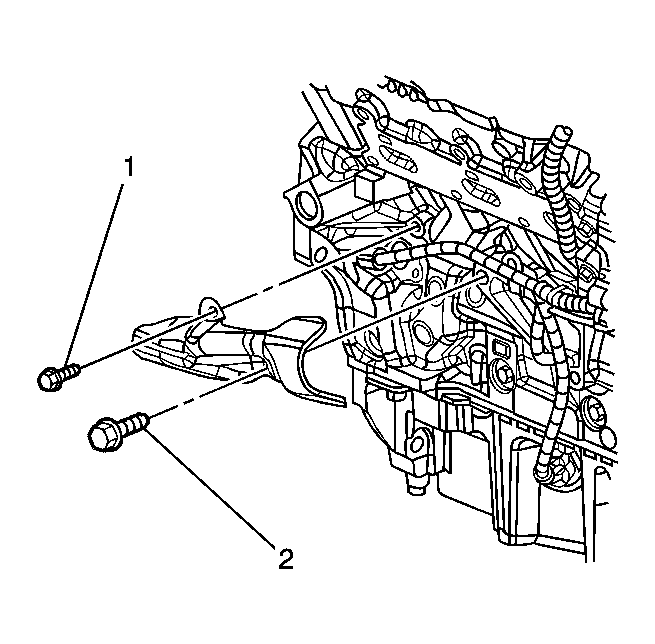

- Remove the crank sensor heat shield bolts (1, 2) and the heat shield.
- Remove the crankshaft position (CKP) sensor bolt.
- Use a long flat-bladed tool in order to carefully remove the CKP sensor and harness.
- Disconnect the wiring harness from the CKP sensor.
IMPORTANT:
The catalytic converter does not have to be removed from the vehicle, relocate to the side.
IMPORTANT:
Do not lower the powertrain more than 100 mm (4 in).
IMPORTANT:
Use a universal or swivel socket with a long extension in order to remove the bolts.
IMPORTANT:
Use a universal or swivel socket with a long extension in order to remove the bolt.
IMPORTANT:
It may be necessary to use a long flat-bladed tool in order to carefully remove the CKP sensor.
