Installation Procedure

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

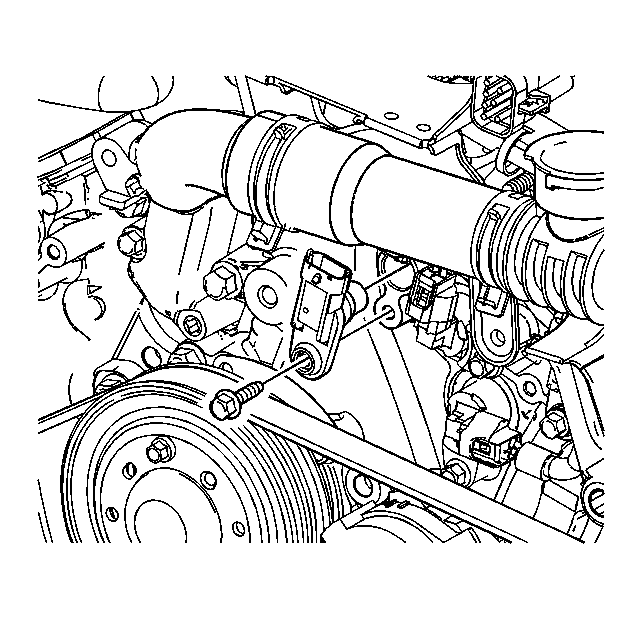

    Fig 1: Identifying CMP Sensor Bolt
    GM1395984Courtesy of GENERAL MOTORS CORP.
  1. Install the CMP sensor.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the CMP sensor bolt.

    Tighten:  Tighten the CMP sensor bolt to 10 N.m (89 lb in).

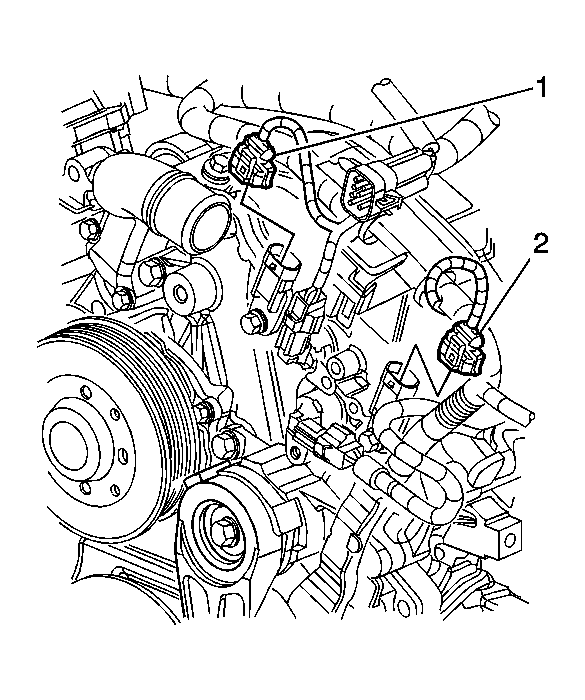

    3. Fig 2: Locating Camshaft Position (CMP) Sensor Electrical Connector
    GM1394061Courtesy of GENERAL MOTORS CORP.
  3. Connect the CMP sensor electrical connector (1).
