Installation Procedure

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

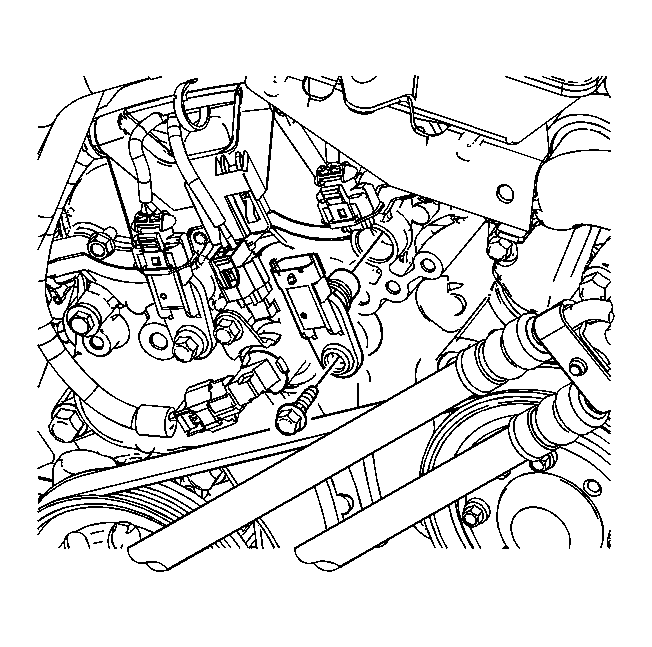

Fig 1: Locating CMP Sensor Bolt

Courtesy of GENERAL MOTORS CORP.

Install the CMP sensor.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the CMP sensor bolt.
Tighten: Tighten the CMP sensor bolt to 10 N.m (89 lb in).

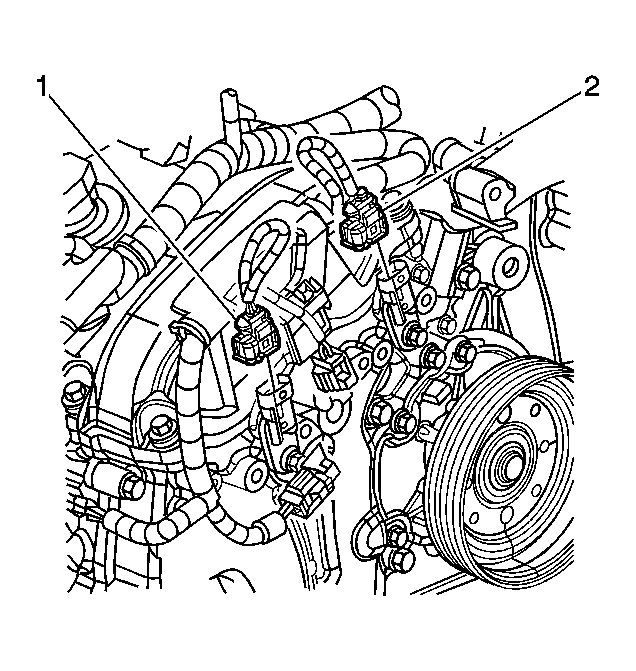

Fig 2: View Of Camshaft Position (CMP) Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the CMP sensor electrical connector (2).
Install the power steering pressure hose bracket and nut as necessary. Refer to Power Steering Pressure Pipe/Hose Replacement (LA1) or Power Steering Pressure Pipe/Hose Replacement (LY7) in Power Steering System.
