Removal Procedure

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

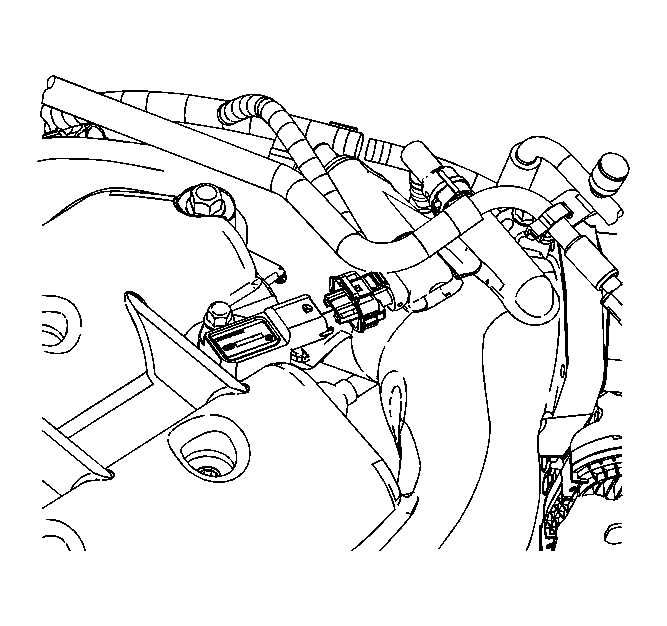

    Fig 1: View Of Barometric Pressure (BARO) Sensor Electrical Connector
    GM1401472Courtesy of GENERAL MOTORS CORP.
  1. Turn the ignition OFF.
  2. Remove the sensor electrical connector.

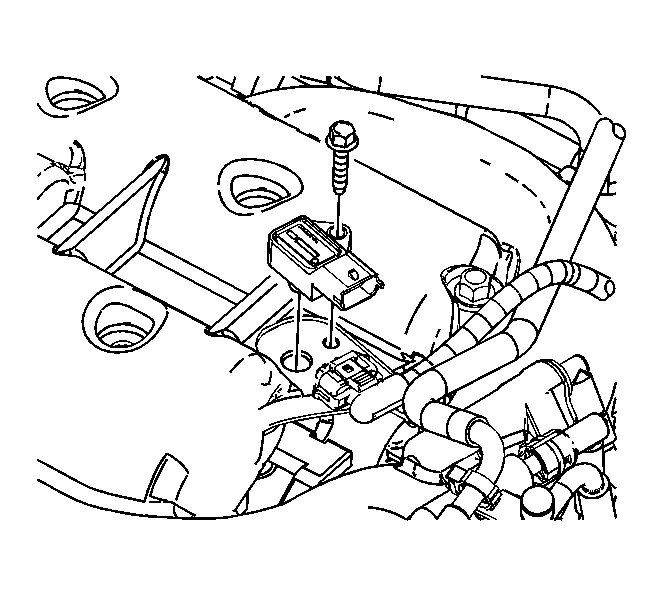

    3. Fig 2: Locating Barometric Pressure (BARO) Sensor & Bolt
    GM1395942Courtesy of GENERAL MOTORS CORP.
  3. Remove the barometric pressure sensor bolt.
  4. Remove the barometric pressure sensor.
