Removal Procedure

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

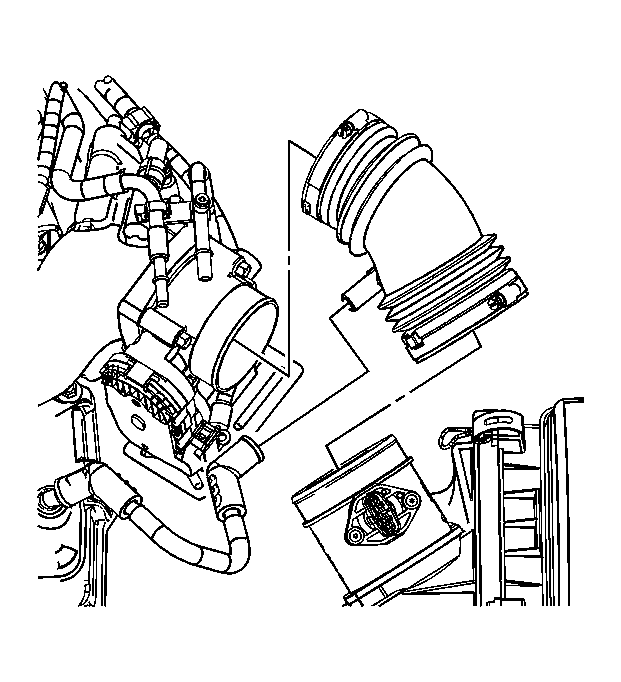

    Fig 1: Locating Intake Air Duct
    GM1404636Courtesy of GENERAL MOTORS CORP.
  1. Loosen the intake air duct clamps.
  2. Disconnect the positive crankcase ventilation (PCV) tube from the air intake duct.
  3. Remove the air intake duct from the throttle body and the mass air flow (MAF) sensor.
  4. Remove the air intake duct.
