Instrument Panel, Gages, and Console Component Views

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Instrument Panel and Center Console Component View - Pontiac

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Cluster
2	Driver's Information/HUD Switches
3	A/C Sunload Sensor (CJ2)/Ambient Light Sensor (CJ3/C60)
4	Security Indicator Lamp
5	Inflatable Restraint I/P Module
6	HVAC Control Module
7	Fuse Block-Center Console
8	Cigar Lighter
9	Auxiliary Power Outlet-Center Console Lower (2002 and earlier)
10	Auxiliary Power Outlet-Center Console Upper
11	Radio
12	Ignition Switch
13	Turn Signal, Wiper, Washer, Cruise and High Beam Switch

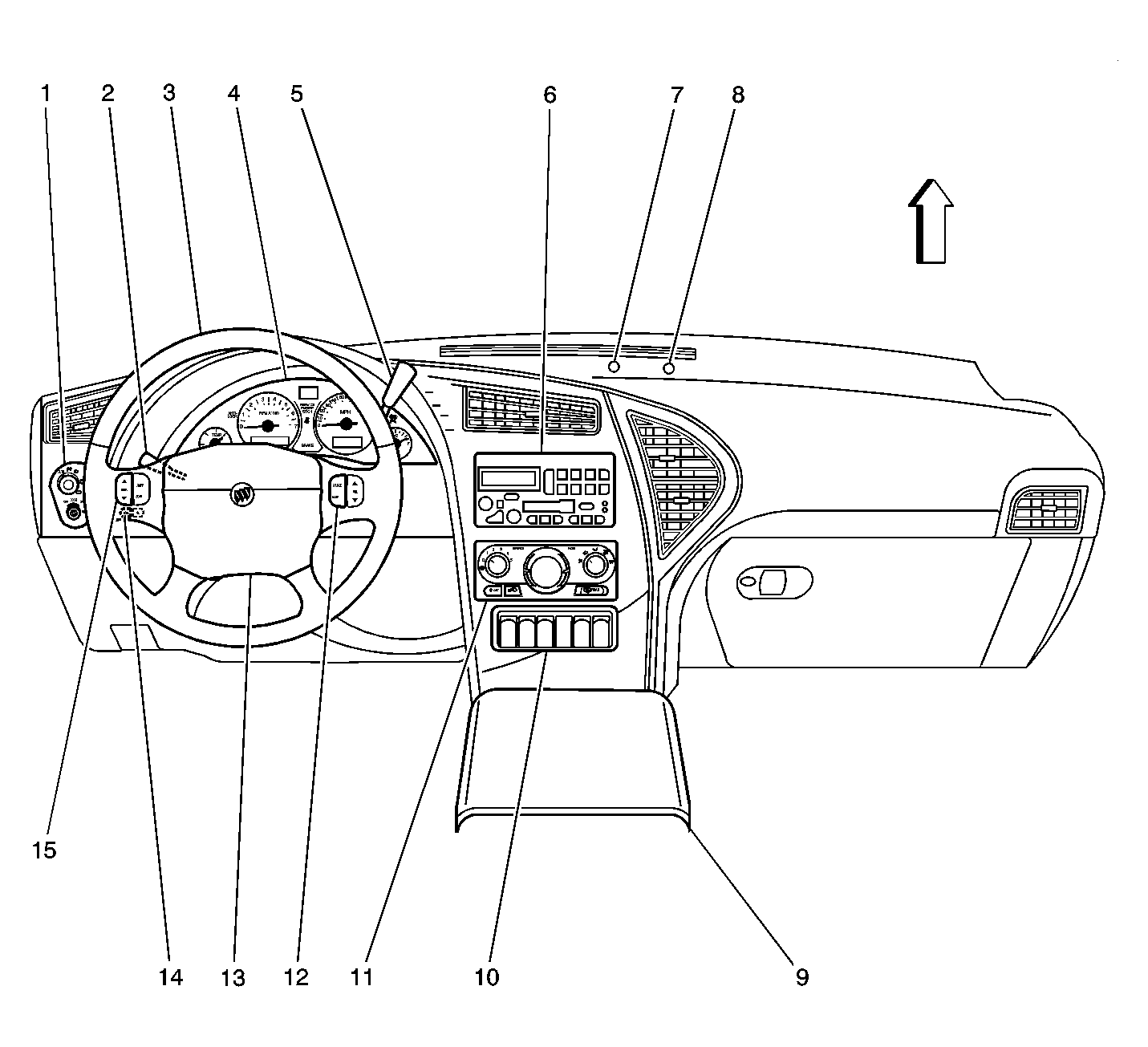

Fig 2: Instrument Panel Component View - Buick

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Turn Signal Switch/Multifunction Switch
3	Hazard Switch
4	Instrument Panel Cluster (IPC)
5	Automatic Transmission Shift Lever
6	Radio
7	A/C Sunload Sensor (CJ2)/Ambient Light Sensor (CJ3/C60)
8	Alarm LED
9	Fuse Block - Center Console
10	Center Console Switchbank
11	HVAC Control Module
12	Steering Wheel Controls - Right
13	Ignition Switch
14	Head Up Display (HUD) Switch and Driver Information Center (DIC) Switch
15	Steering Wheel Controls - Left

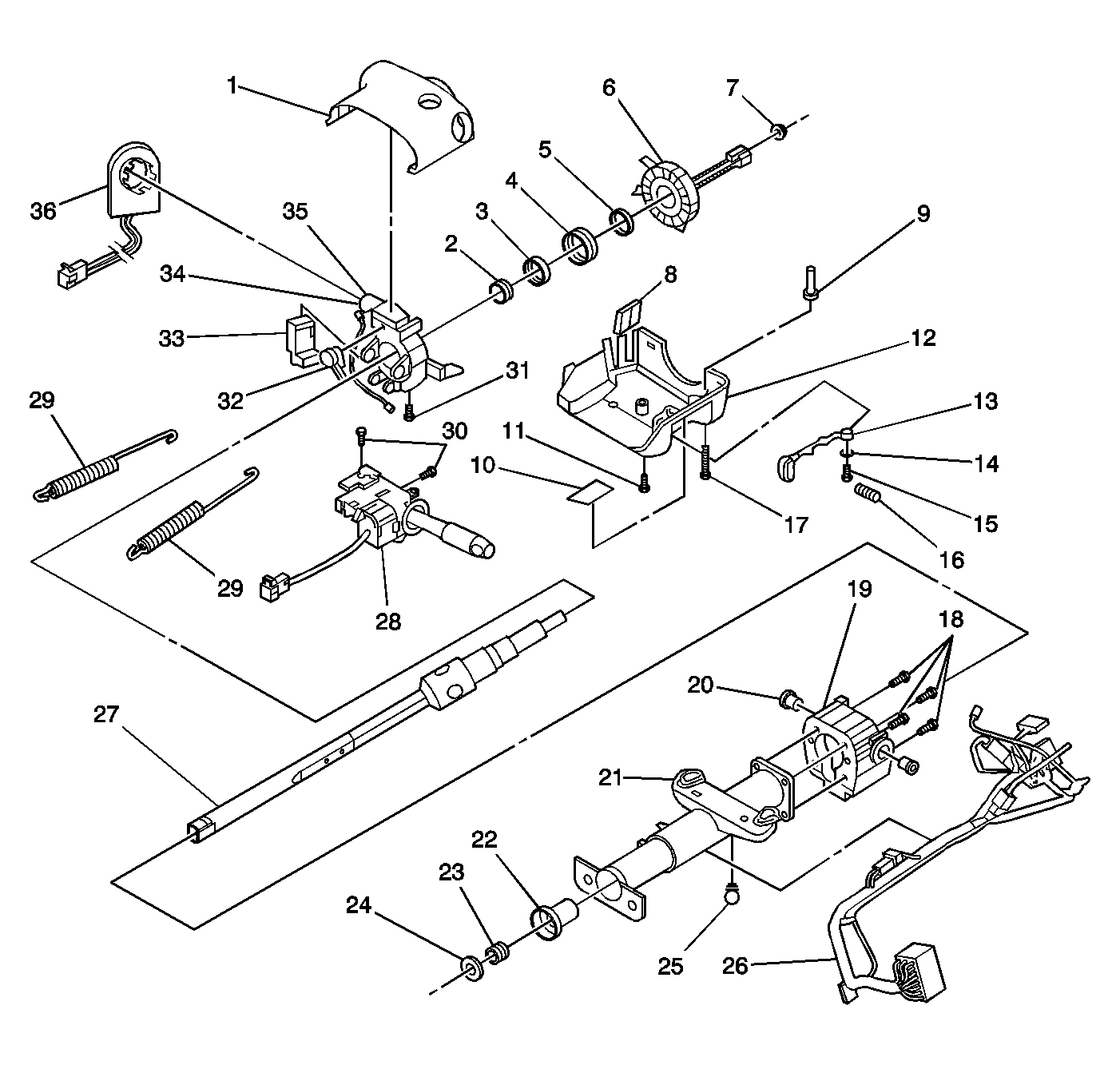

Fig 3: Steering Column Component View - Pontiac

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Trim Cover
2	Upper Bearing
3	Upper Bearing Seat
4	Steering Shaft Upper Bearing Spring
5	Inflatable Restraint Steering Wheel Module Coil
6	Bearing Retainer
7	Steering Wheel Nut
8	Trim Cover Protector
9	Sleeve
10	Cover, Housing Trim Extension
11	Lower Trim Cover Screws
12	Lower Trim Cover
13	Tilt Lever
14	Tilt Lever Spring
15	Tilt Lever Bolt
16	Tilt Lever Spring
17	Lower Trim Cover Screw
18	Lower Tilt Head Mounting Bolts
19	Lower Tilt Head
20	Tilt Head Pivot Pins
21	Steering Column Jacket Assembly
22	Adapter and Bearing Assembly
23	Lower Bearing Seat
24	Lower Bearing Retainer
25	Wire Harness Retainer
26	Wire Harness Assembly
27	Shaft Assembly
28	Multifunction Switch
29	Tilt Head Springs
30	Multifunction Switch Screws
31	Trim Cover Screw
32	Actuator, Automatic Transmission Shift Lock Control
33	Ignition Switch
34	Ignition Key Alarm Switch
35	Upper Tilt Head
36	Theft Deterrent Module

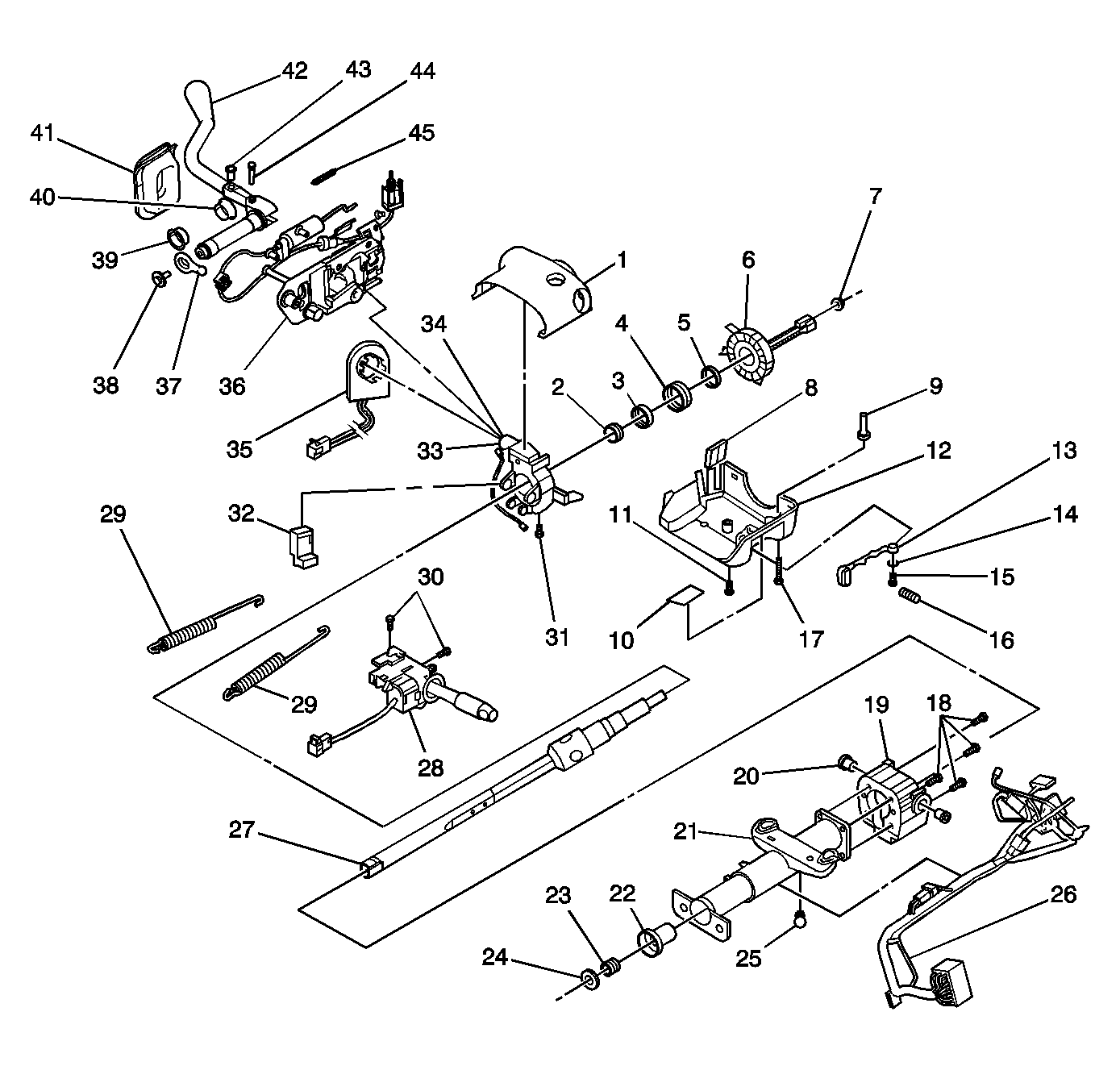

Fig 4: Steering Column Component View - Buick

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Trim Cover
2	Upper Bearing
3	Upper Bearing Seat
4	Steering Shaft Upper Bearing Spring
5	Bearing Retainer
6	Inflatable Restraint Steering Wheel Module Coil
7	Steering Wheel Nut
8	Trim Cover Protector
9	Sleeve
10	Cover, Housing Trim Extension
11	Lower Trim Cover Screws
12	Lower Trim Cover
13	Tilt Lever
14	Tilt Lever Spring
15	Tilt Lever Bolt
16	Tilt Lever Spring
17	Lower Trim Cover Screw
18	Lower Tilt Head Mounting Bolts
19	Lower Tilt Head
20	Tilt Head Pivot Pins
21	Steering Column Jacket Assembly
22	Adapter and Bearing Assembly
23	Lower Bearing Seat
24	Lower Bearing Retainer
25	Wire Harness Retainer
26	Wire Harness Assembly
27	Shaft Assembly
28	Multifunction Switch
29	Tilt Head Springs
30	Multifunction Switch Screws
31	Trim Cover Screw
32	Ignition Switch
33	Ignition Key Alarm
34	Upper Tilt Head
35	Theft Deterrent Module
36	Control Assembly
37	Shift Lever Pivot Pin
38	Pivot Pin Bolt
39	Lower Shift Lever Bushing
40	Upper Shift Lever Bushing
41	Steering Column Boot
42	Shift Lever
43	Shift Lever Screw
44	Shift Lever Pin
45	Shift Lever Spring

Fig 5: Theft Deterrent Control Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Theft Deterrent Control Module
2	Ignition Key Housing
3	Key Warning Switch

Fig 6: Lower Front Of Engine (LA1) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Position (CKP) Sensor A Connector and Bracket
2	Knock Sensor (KS) Connector
3	Engine Oil Pressure (EOP) Switch Connector
4	Fusible Links (Starter)
5	A/C Compressor Clutch Diode

Fig 7: Fuel Tank Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pump and Sender Assembly
2	Fuel Pump
3	Canister Vent Solenoid
4	EVAP Canister
5	Fuel Level Sender
