Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

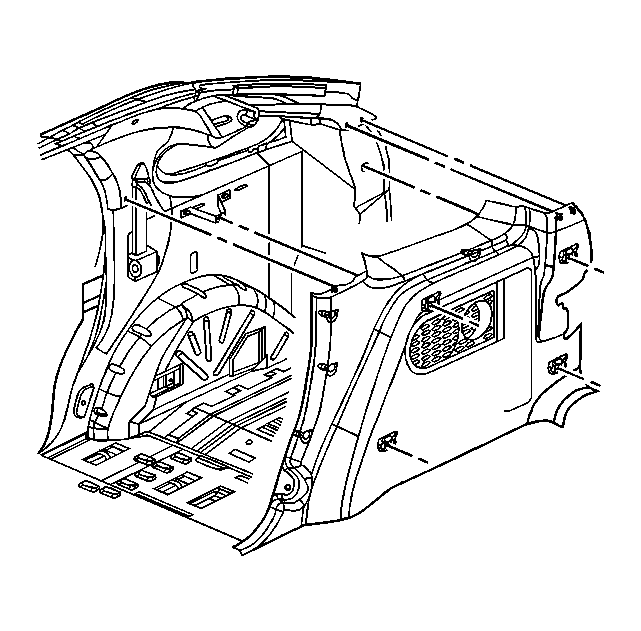

    Fig 1: View Of Rear Quarter Lower Trim Panel (Aztek)
    GM620954Courtesy of GENERAL MOTORS CORP.
  1. Align the lower trim panel push-in retainers to the inner panel.
    2. IMPORTANT: Position the seat belt through the slotted opening between the upper and lower trim panel.
  2. Install the lower trim panel by applying pressure on the panel to secure all of the push-in retainer locations.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.

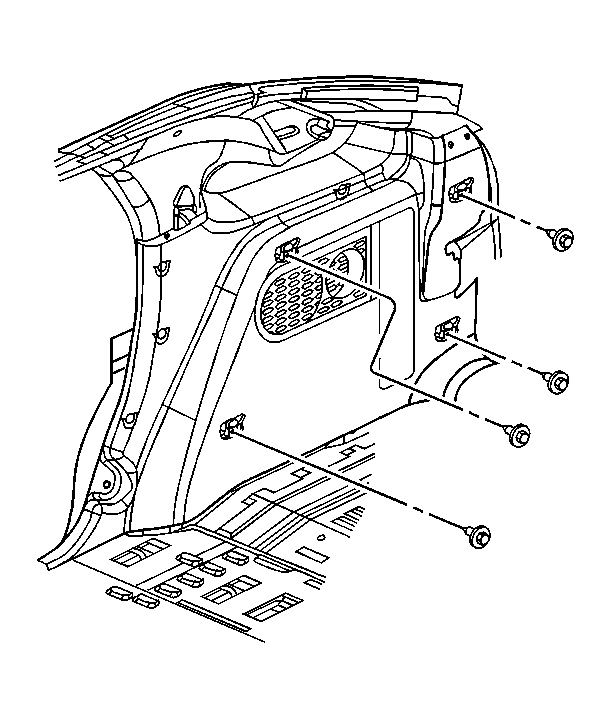

    Fig 2: Locating Rear Quarter Lower Trim Panel Bolts (Aztek)
    GM620951Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts to the lower trim panel at the cargo tie down locations.

    Tighten:  Tighten the bolts to 6 N.m (53 lb in).

  4. Install the rear upper quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper (Aztek)  or Trim Panel Replacement - Rear Quarter Upper (Rendezvous)  .
  5. Install the rear seat belt. Refer to Seat Belt Retractor Replacement - Rear in Seat Belts.
  6. Install the endgate sill plate. Refer to Door Sill Plate Replacement - Endgate  .
