Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

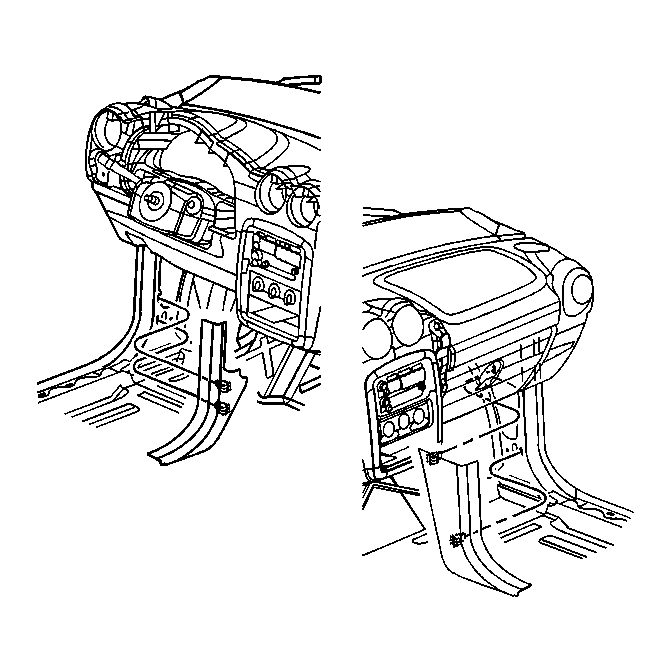

    Fig 1: Locating Cowl Side Trim Panel Retainers
    GM620964Courtesy of GENERAL MOTORS CORP.
  1. Remove the front door sill plate. Refer to Door Sill Plate Replacement - Front  .
  2. Remove the cowl side trim panel retainers.
  3. Remove the cowl side trim panel from the vehicle.
