Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

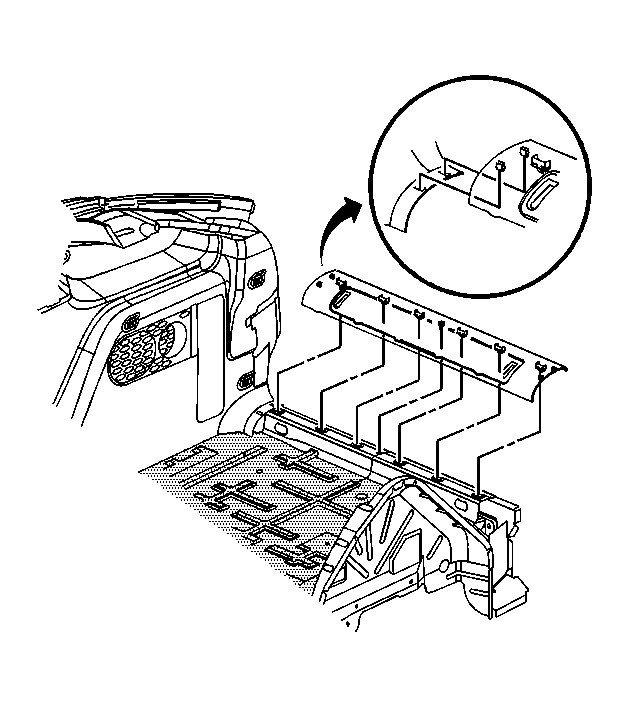

Fig 1: View Of Endgate Door Sill Plate

Courtesy of GENERAL MOTORS CORP.

Remove the endgate door sill plate.
Remove the endgate door sill plate from the endgate sill.

Fig 2: Identifying Endgate Sill Plate Push-In Retainers

Courtesy of GENERAL MOTORS CORP.

Remove the endgate sill plate push-in retainers if required.
