Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear quarter trim. Refer to Trim Panel Replacement - Rear Quarter Lower (Aztek) or Trim Panel Replacement - Rear Quarter Lower (Rendezvous) in Interior Trim.
  2. Remove the speaker bolts.
  3. Disconnect the electrical connectors from the speaker.
  4. Remove the speaker.

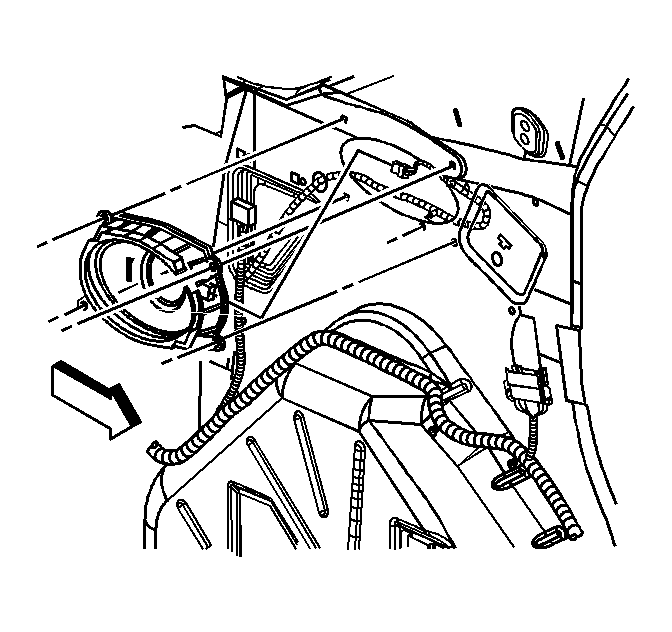

    Fig 1: View Of Rear Speaker Assembly
    GM771782Courtesy of GENERAL MOTORS CORP.
