Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Press the second seat audio control into the rear console trim plate.

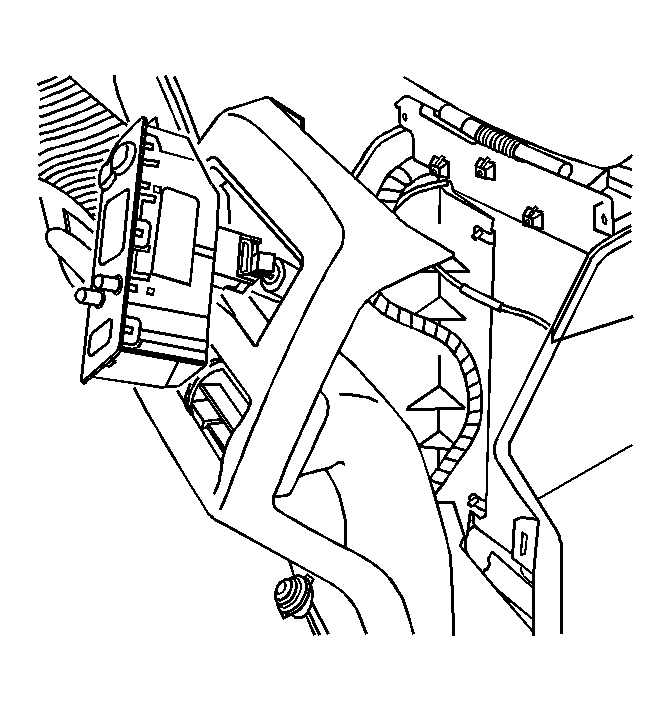

Fig 1: View Of Second Seat Audio Control
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connectors to the audio control
Press the trim plate onto the center console.

Fig 2: Locating Audio Control Electrical Connectors
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.
Install 2 screws that secure the rear console trim plate.
Tighten: Tighten the screws to 2 N.m (18 lb in).

Fig 3: View Of Front Armrest
Courtesy of GENERAL MOTORS CORP.
Close the front armrest.
