Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door.
  2. Remove the rear door sill plates. Refer to Door Sill Plate Replacement - Front in Interior Trim.
  3. Remove the rear quarter upper trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper (Aztek) or Trim Panel Replacement - Rear Quarter Upper (Rendezvous) in Interior Trim.
  4. Remove the rear quarter lower trim panel. Refer to Trim Panel Replacement - Rear Quarter Lower (Aztek) or Trim Panel Replacement - Rear Quarter Lower (Rendezvous) in Interior Trim.
  5. Remove the upper center pillar trim panel. Refer to Trim Panel Replacement - Upper Center Pillar in Interior Trim.
  6. Remove the center lower trim panel. Refer to Trim Panel Replacement - Lower Center Pillar in Interior Trim.
  7. Remove the rear door opening weatherstrip by pulling it off the pinchweld flange.

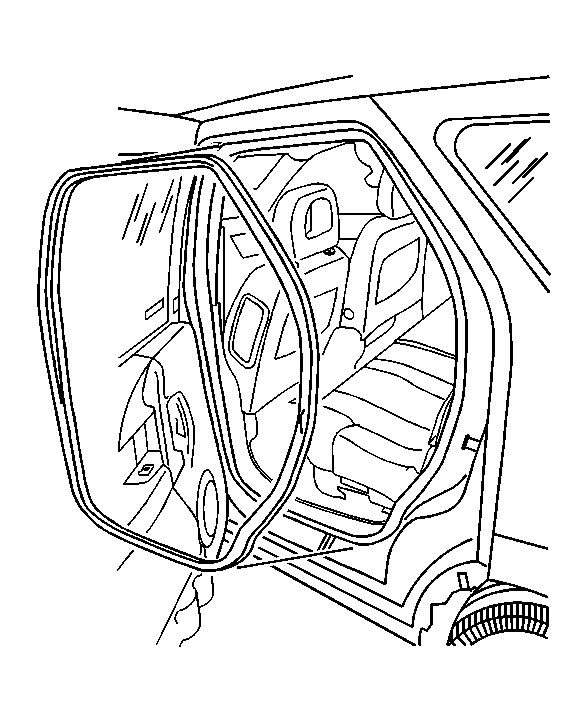

    Fig 1: View Of Rear Door Opening Weatherstrip
    GM709392Courtesy of GENERAL MOTORS CORP.
