Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Remove the front door sill plates. Refer to Door Sill Plate Replacement - Front in Interior Trim.
  3. Remove the windshield garnish molding. Refer to Garnish Molding Replacement - Windshield Pillar in Interior Trim.
  4. Remove the upper center pillar trim panel. Refer to Trim Panel Replacement - Upper Center Pillar in Interior Trim.
  5. Remove the center lower trim panel. Refer to Trim Panel Replacement - Lower Center Pillar in Interior Trim.
  6. Remove the front door opening weatherstrip by pulling it off the pinchweld flange.

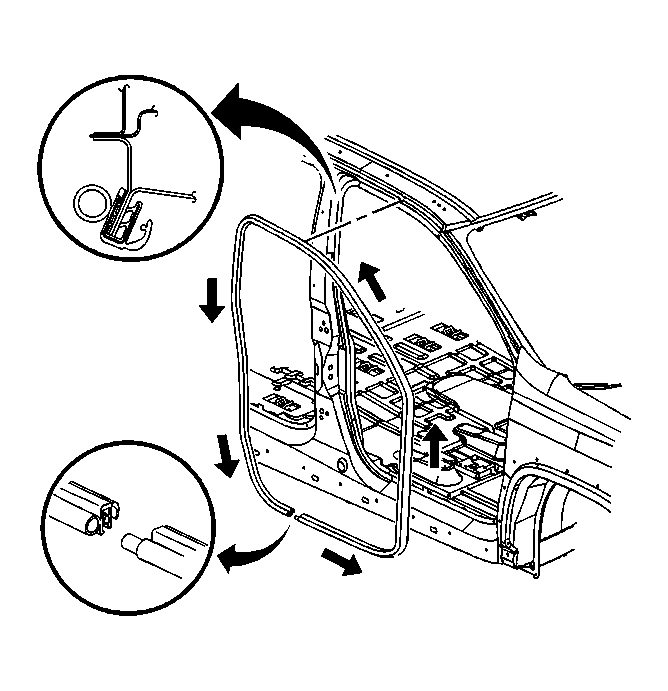

    Fig 1: Identifying Front Door Opening Weatherstrip
    GM622652Courtesy of GENERAL MOTORS CORP.
