Interior Lights Dimming Schematics

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

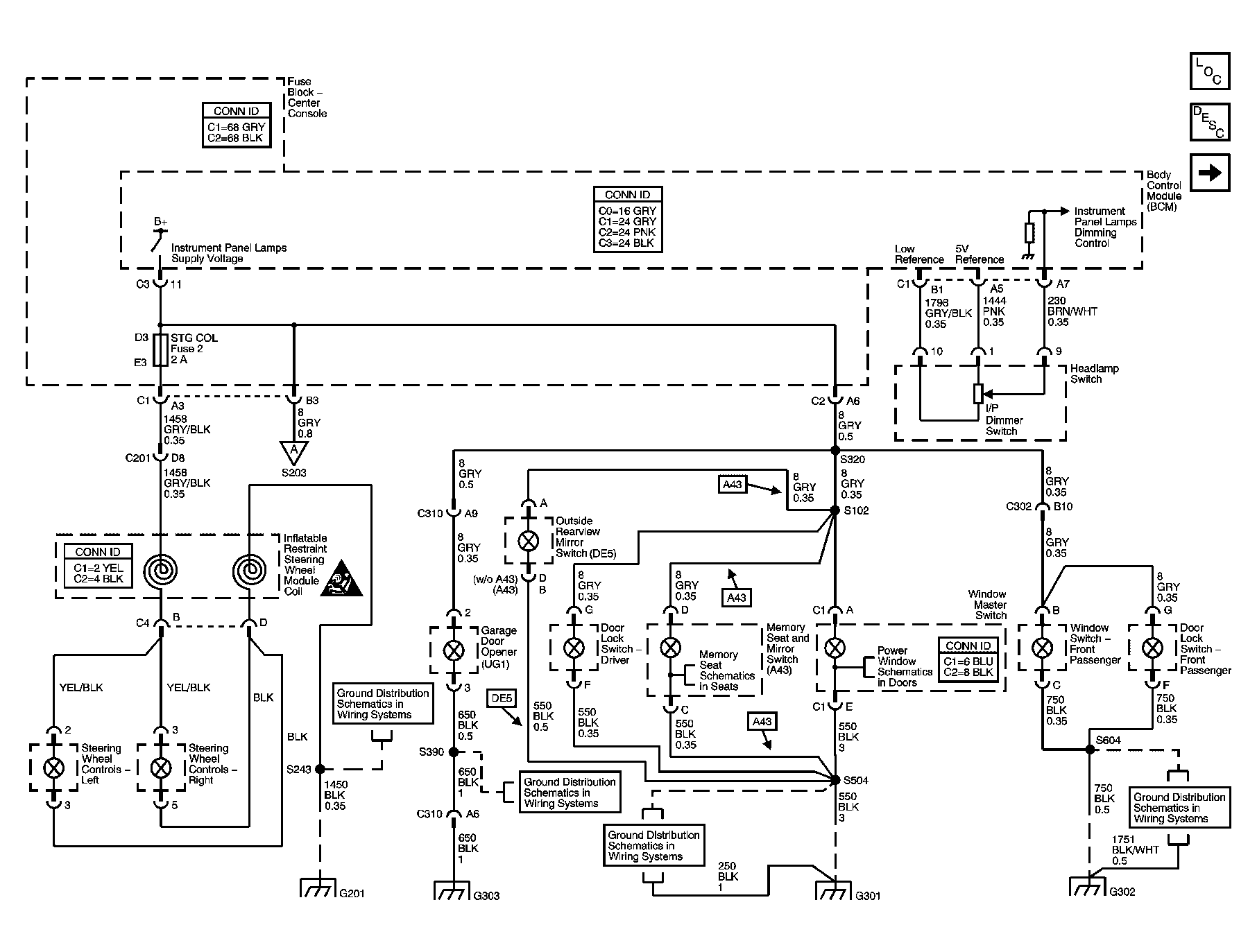

Fig 1: Dimming Controls & Panel Lamps Schematic (1 Of 2) - Pontiac

Courtesy of GENERAL MOTORS CORP.

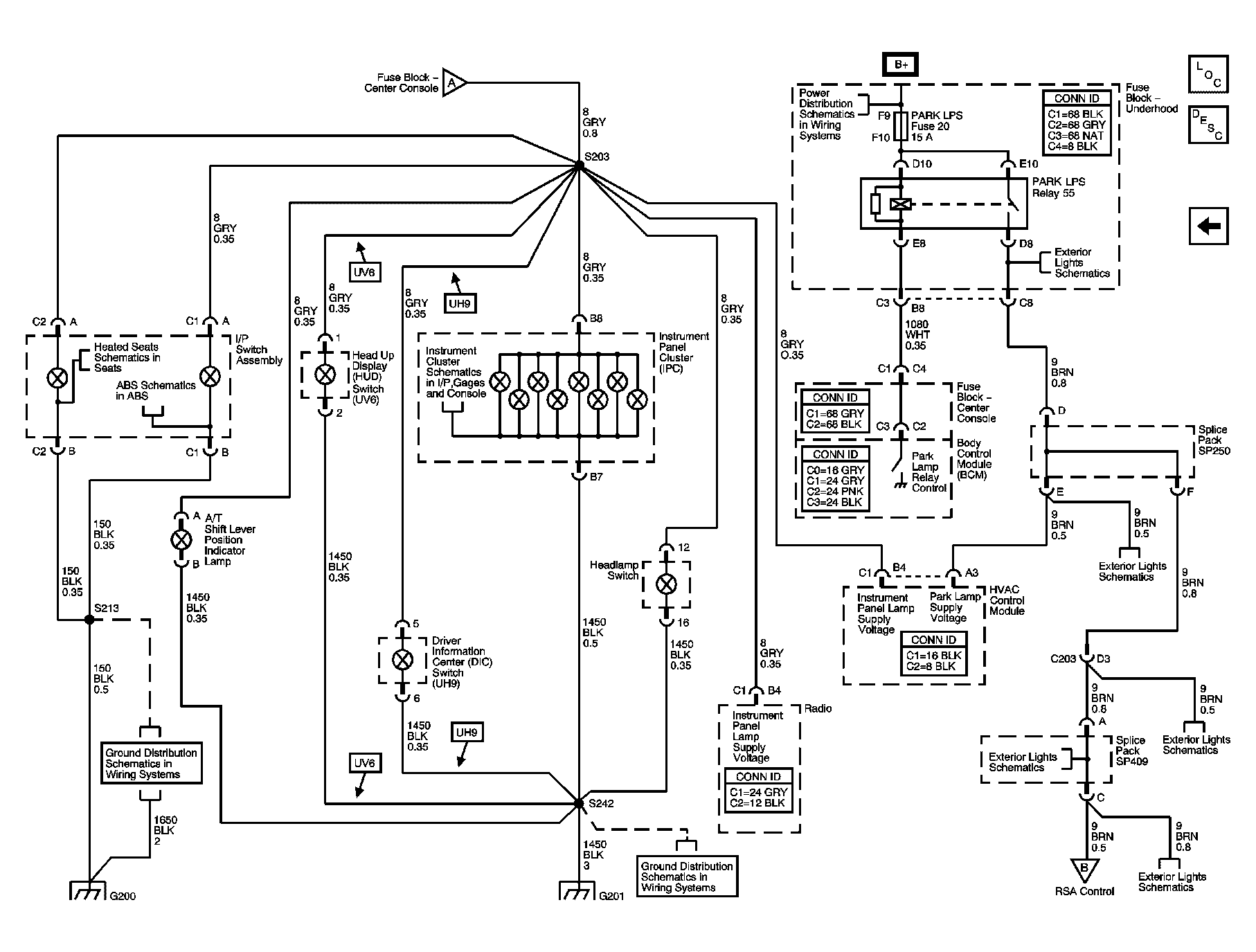

Fig 2: Dimming Controls & Panel Lamps Schematic (2 Of 2) - Pontiac

Courtesy of GENERAL MOTORS CORP.

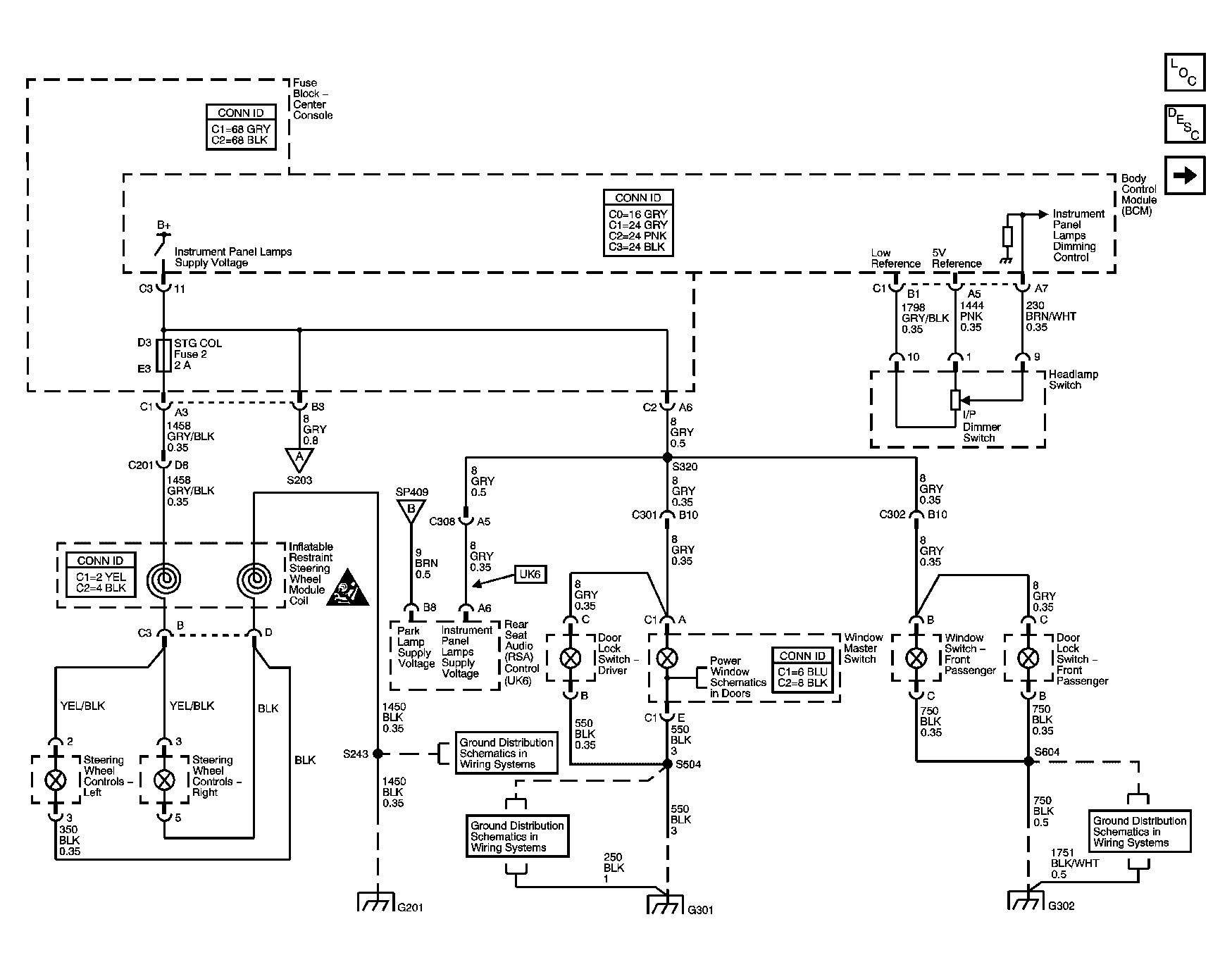

Fig 3: Dimming Controls & Panel Lamps Schematic (1 Of 2) - Buick

Courtesy of GENERAL MOTORS CORP.

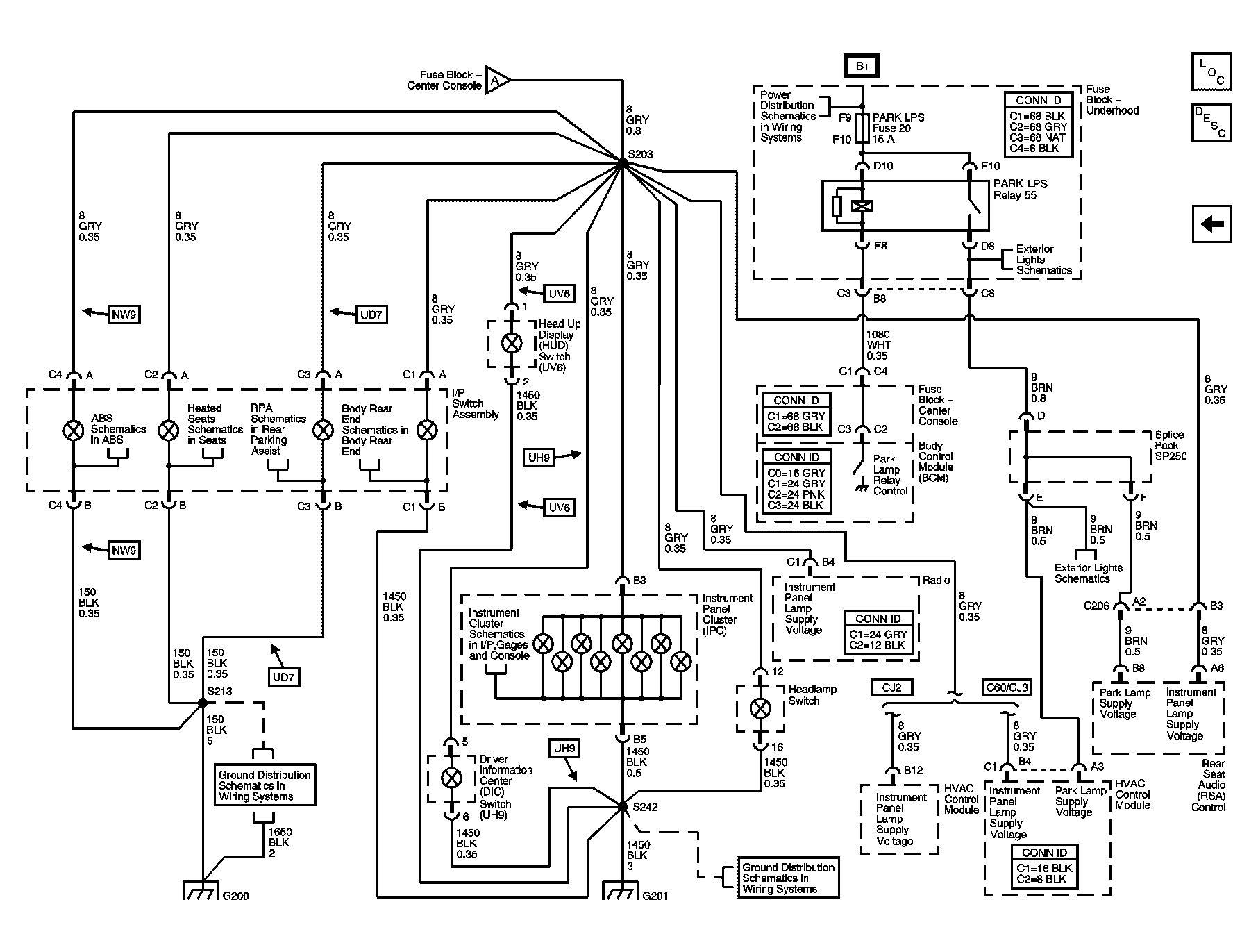

Fig 4: Panel Lamps Schematic (2 Of 2) - Buick

Courtesy of GENERAL MOTORS CORP.
