Headlights/Daytime Running Lights (DRL) Schematics

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

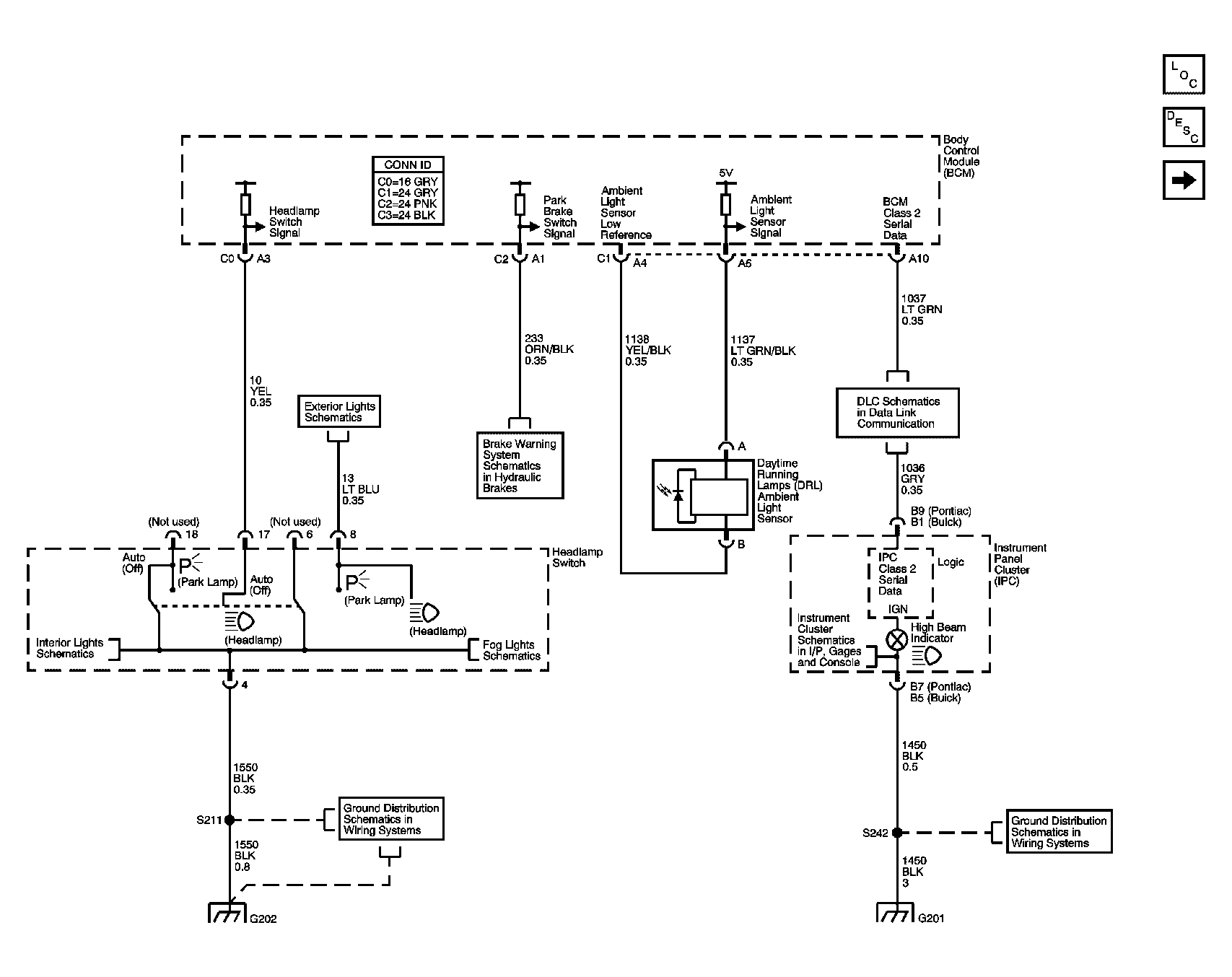

Fig 1: Indicator, Lamp Control Schematic

Courtesy of GENERAL MOTORS CORP.

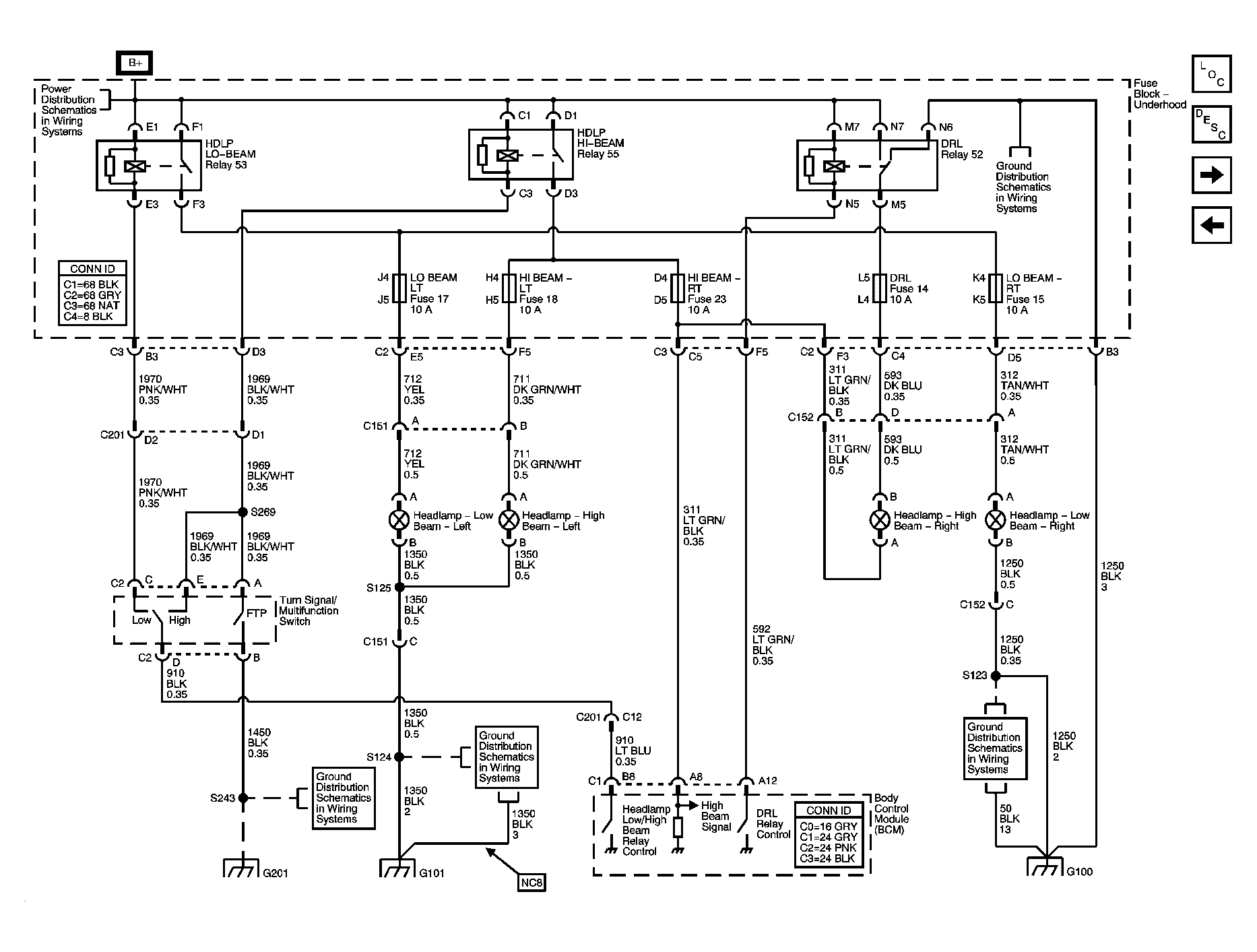

Fig 2: Dimming, Lamps, & Relays Schematic

Courtesy of GENERAL MOTORS CORP.
