Exterior Lights Schematics

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

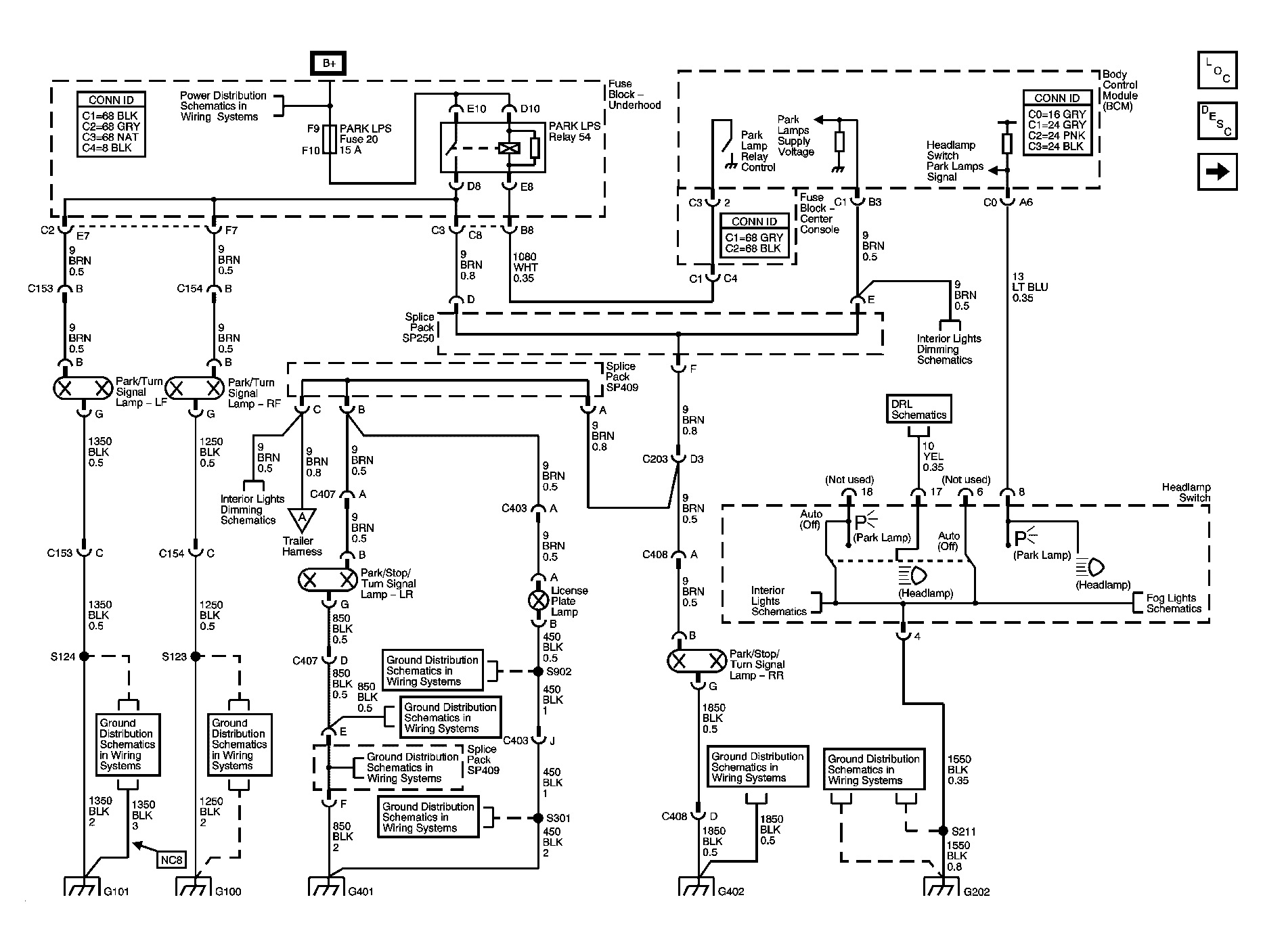

Fig 1: Park Lamps Schematic - Pontiac

Courtesy of GENERAL MOTORS CORP.

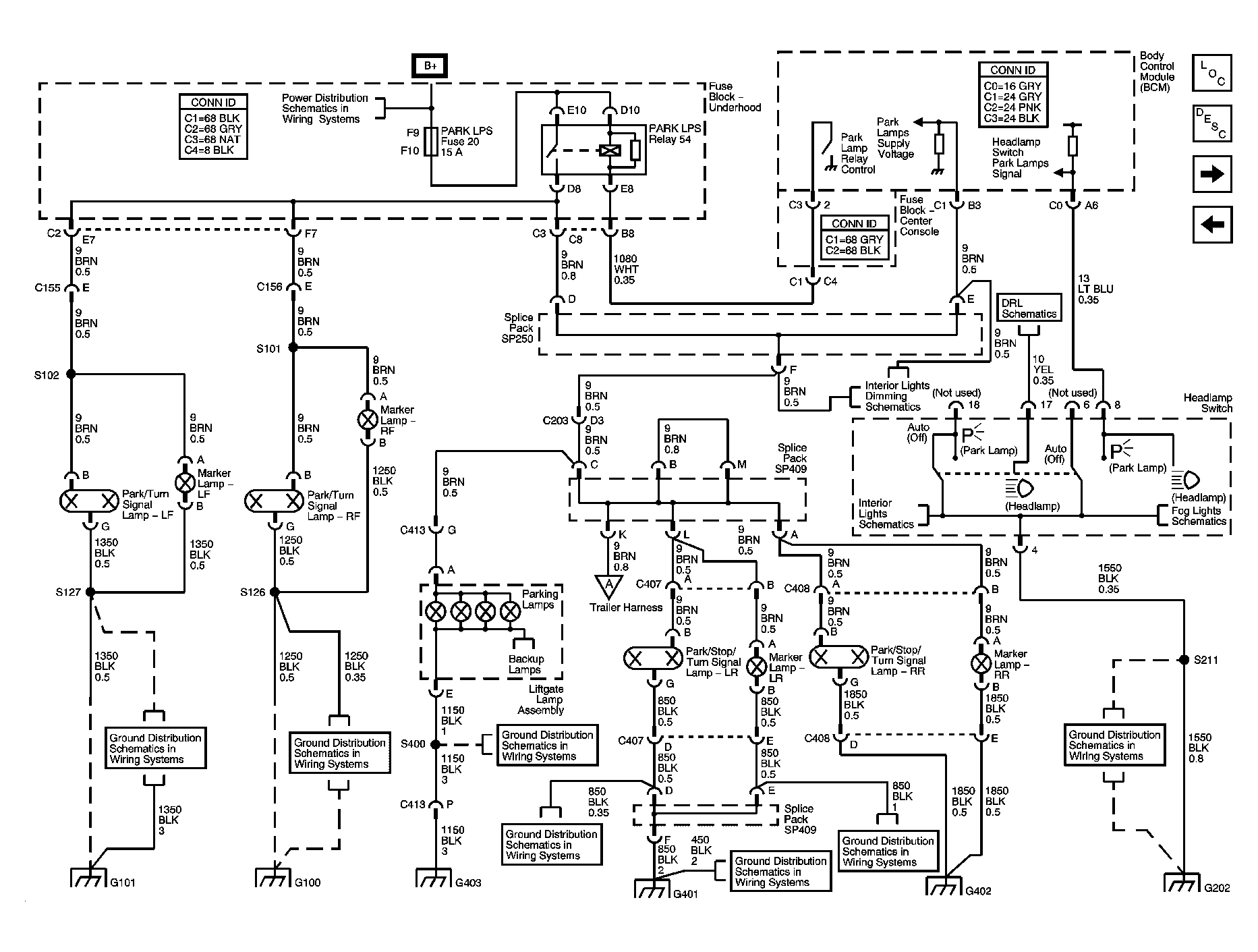

Fig 2: Park Lamps - Buick Schematic

Courtesy of GENERAL MOTORS CORP.

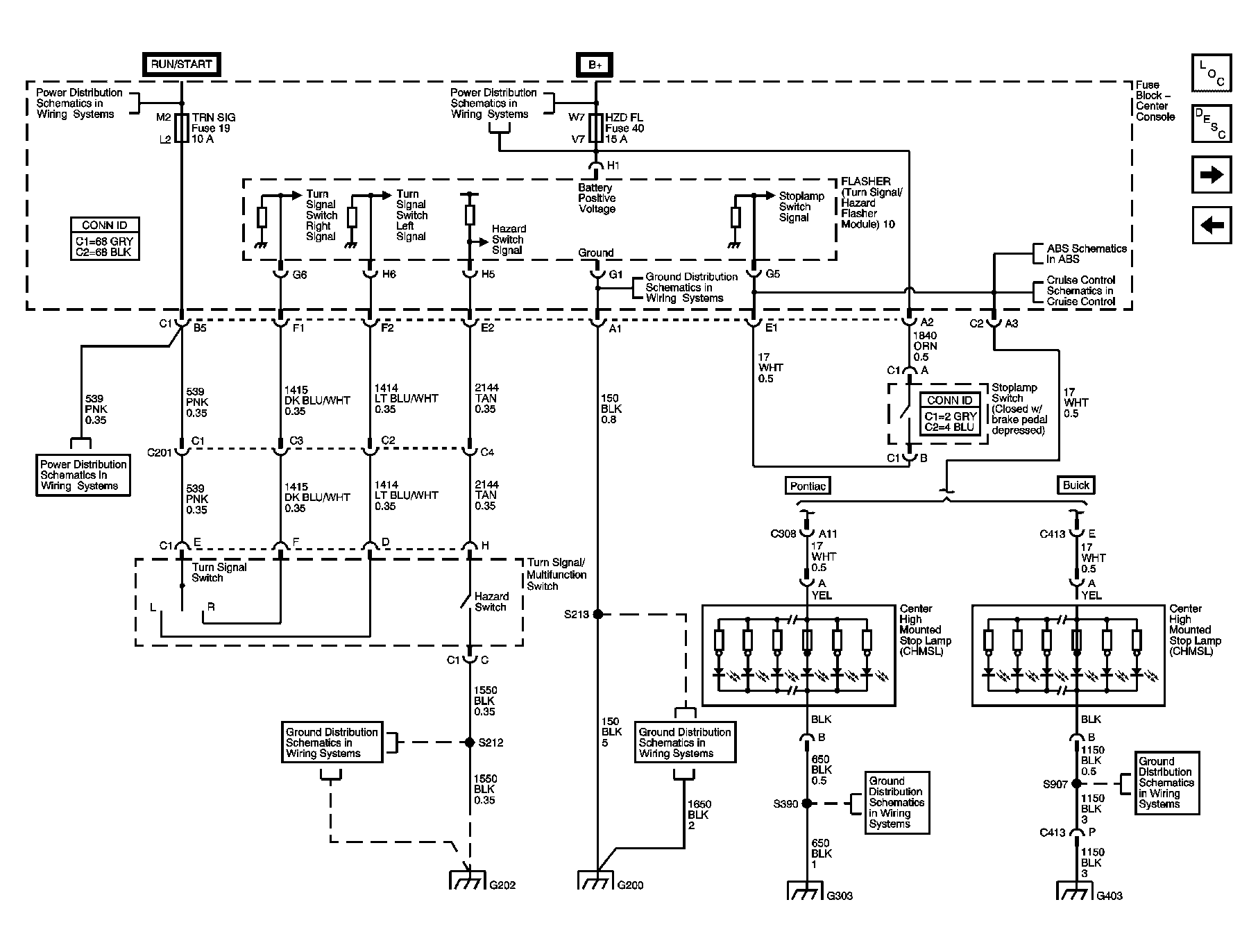

Fig 3: Turn Signal/Hazard Control Schematic

Courtesy of GENERAL MOTORS CORP.

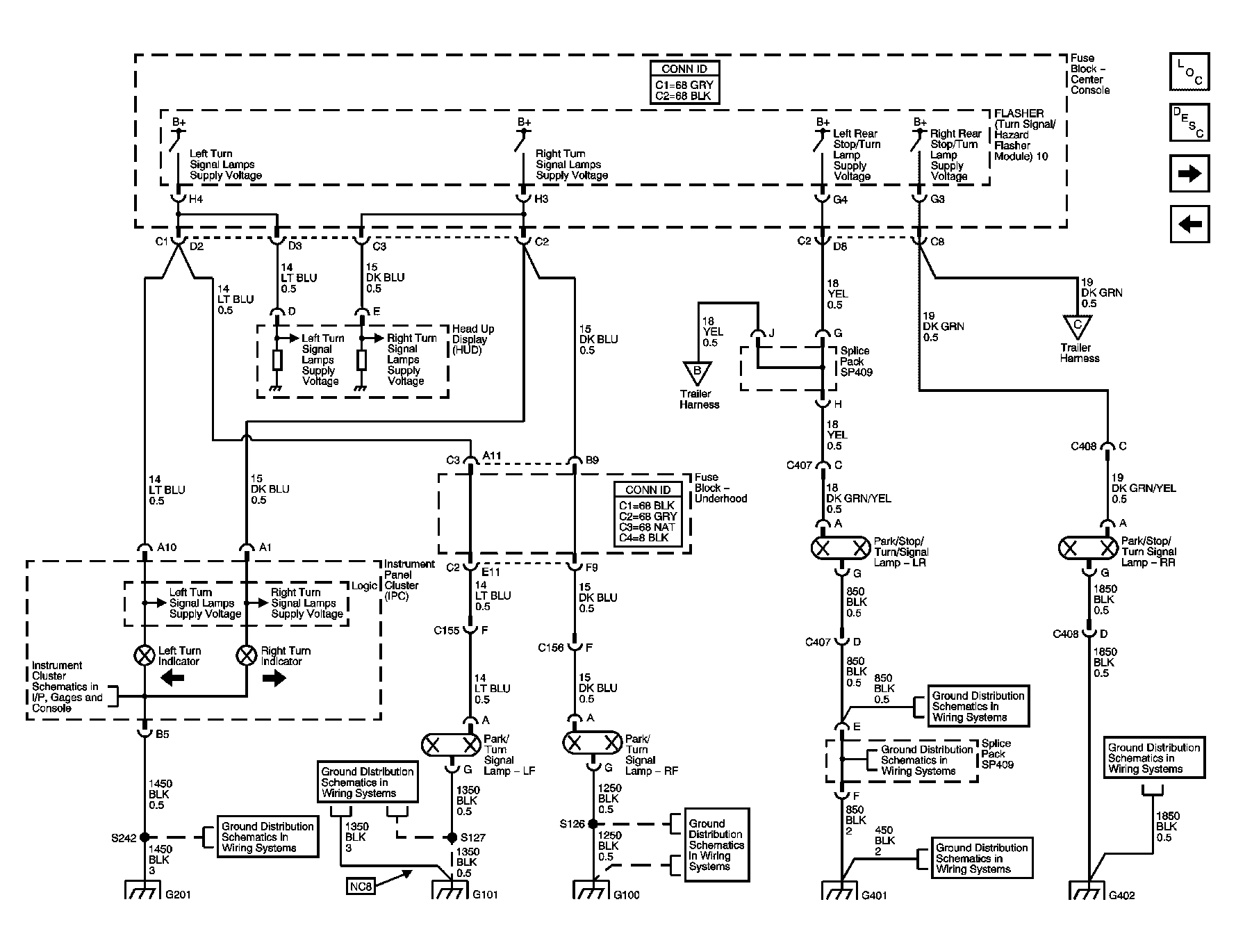

Fig 4: Turn Lamps and Indicators Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Stop Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

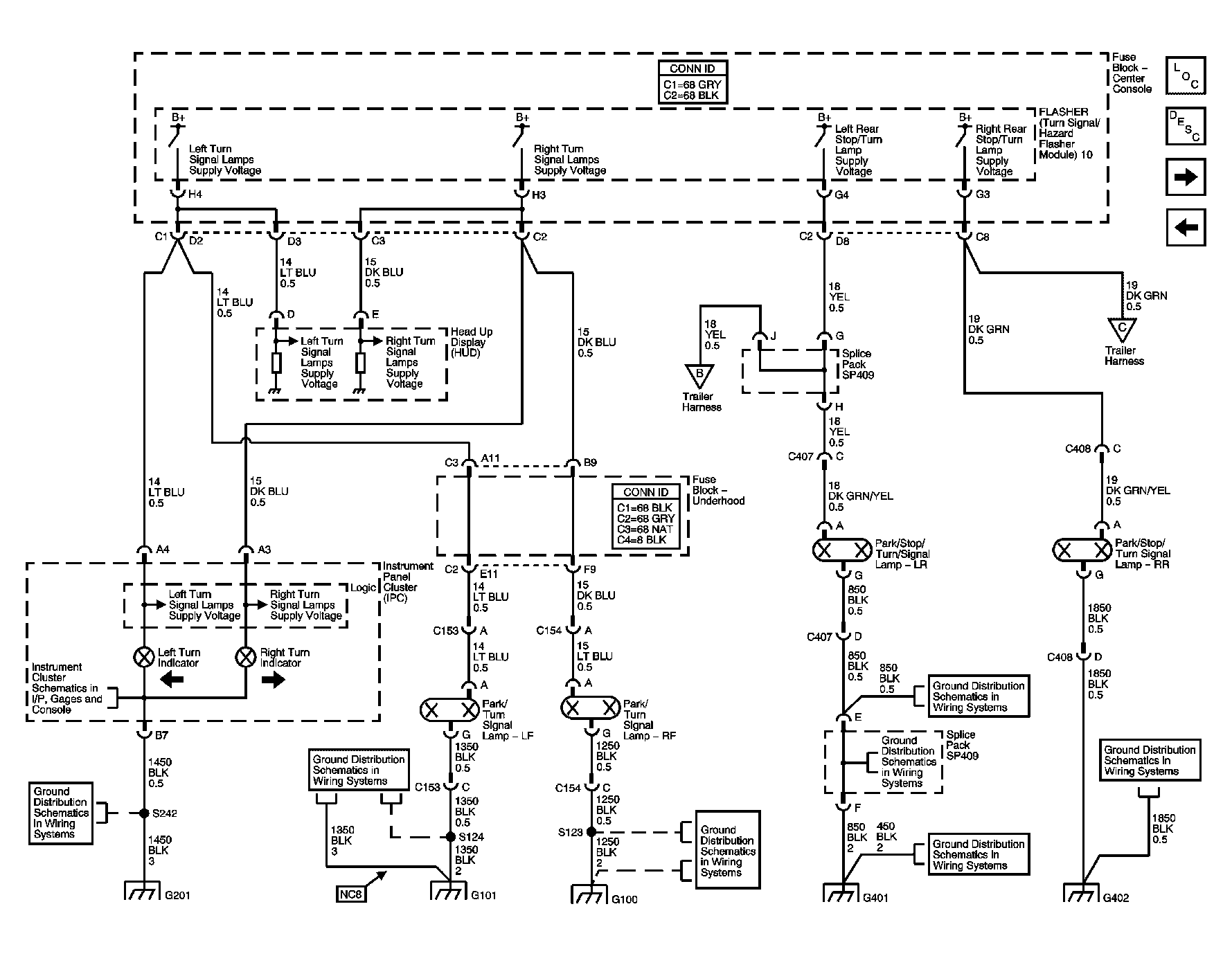

Fig 6: Trailer Harness Schematic

Courtesy of GENERAL MOTORS CORP.

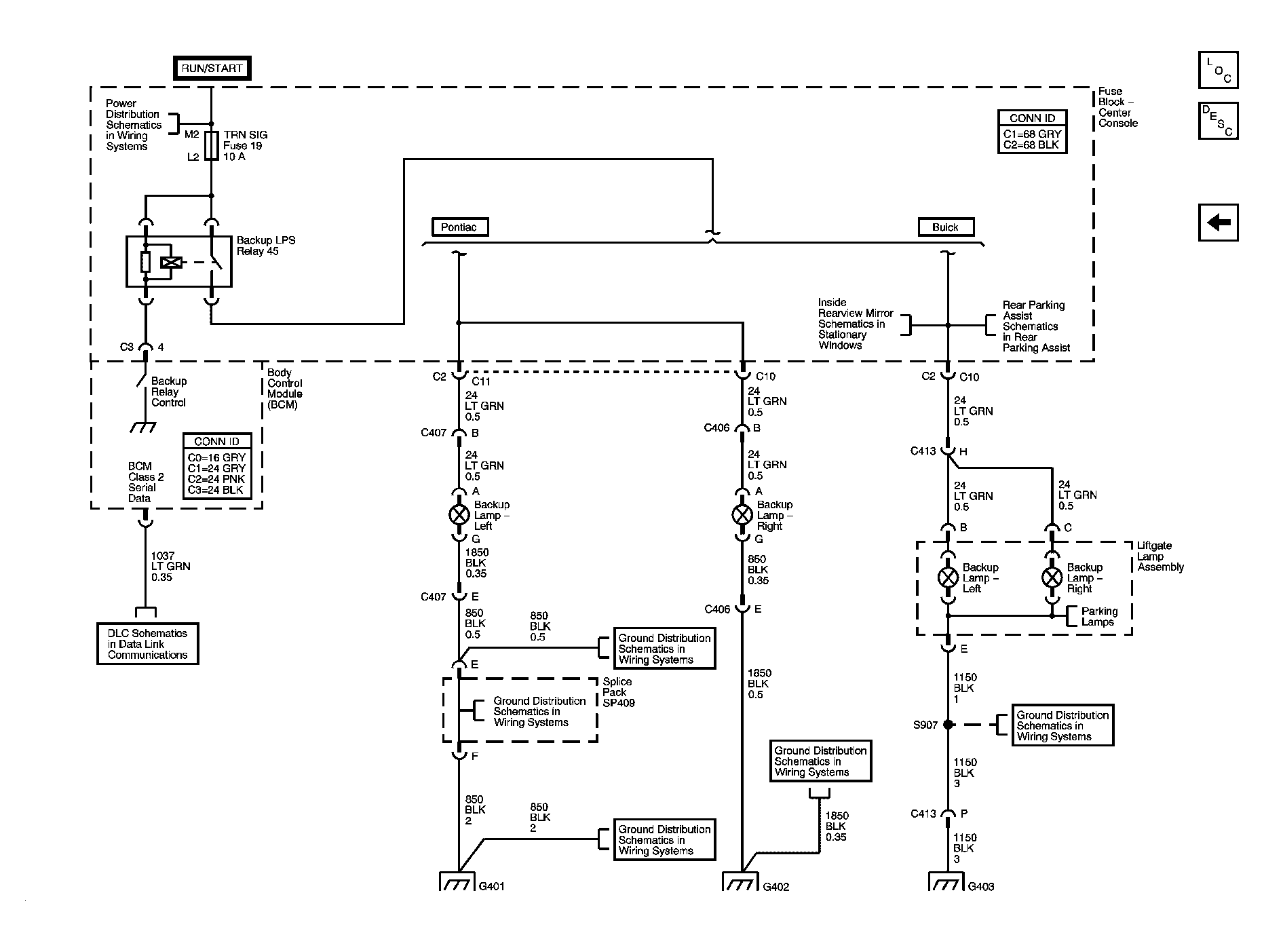

Fig 7: Backup Lamps Schematic

Courtesy of GENERAL MOTORS CORP.
