Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Headlamp Trim
    GM761253Courtesy of GENERAL MOTORS CORP.
  1. Install new adhesive tape 3M™ P/N 6382 or equivalent to the headlamp trim, if necessary.
  2. Position the headlamp trim to the headlamp, if removed.
    3. Fig 2: Locating Headlamp Trim Tabs
    GM761257Courtesy of GENERAL MOTORS CORP.
  3. Install the headlamp trim to the headlamp, pressing until end tabs are fully seated.
    4. Fig 3: Identifying Headlamp Bulb
    GM761255Courtesy of GENERAL MOTORS CORP.
  4. Install the headlamp bulb(s) to the headlamp by rotating clockwise.
    5. Fig 4: View Of Headlamp
    GM755085Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The headlamp electrical connector must be positioned into the upper fascia support panel for proper seating of the headlamp.
  5. Connect the electrical connector to the headlamp.
  6. Position the headlamp to the upper fascia support.
  7. Press the headlamp into the upper fascia support until the ball stud is fully seated.

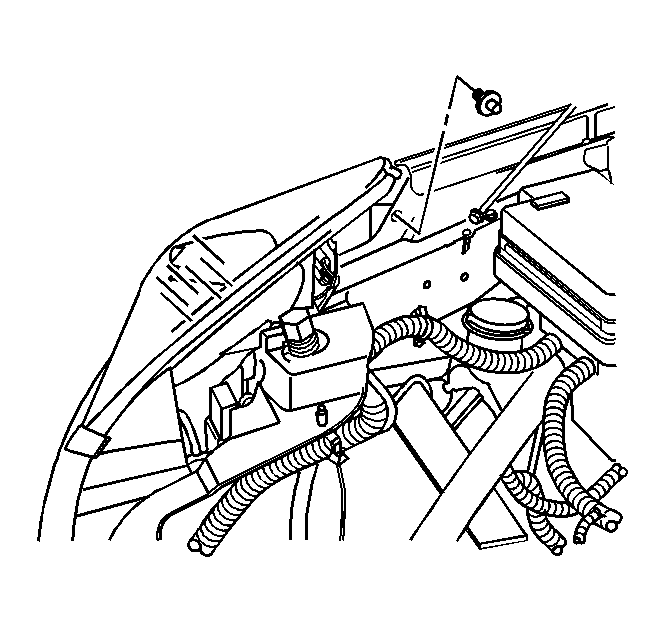

    8. Fig 5: Locating Headlamp Retainer
    GM761252Courtesy of GENERAL MOTORS CORP.
  8. Install the thumb screw to the rear of the headlamp.
  9. Engage the headlamp vertical retainer, by sliding downward until fully seated.
  10. Check the headlamp aim, if a new headlamp was installed, or if service or repairs in the front end area were made. Refer to Headlamp Aiming (Aztek)  or Headlamp Aiming (Rendezvous) .
  11. Close the hood.
