Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

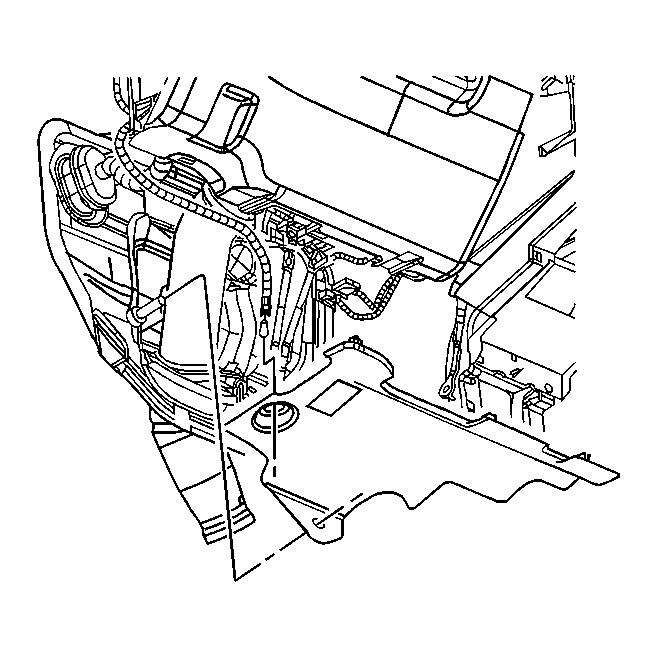

    Fig 1: Identifying Instrument Panel Courtesy Lamp Socket
    GM627833Courtesy of GENERAL MOTORS CORP.
  1. Remove the left instrument panel insulator. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages and Console.
  2. Remove the instrument panel courtesy lamp socket, turning counterclockwise.
  3. Remove the bulb from the instrument panel courtesy lamp socket.
