Power Distribution Schematics

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

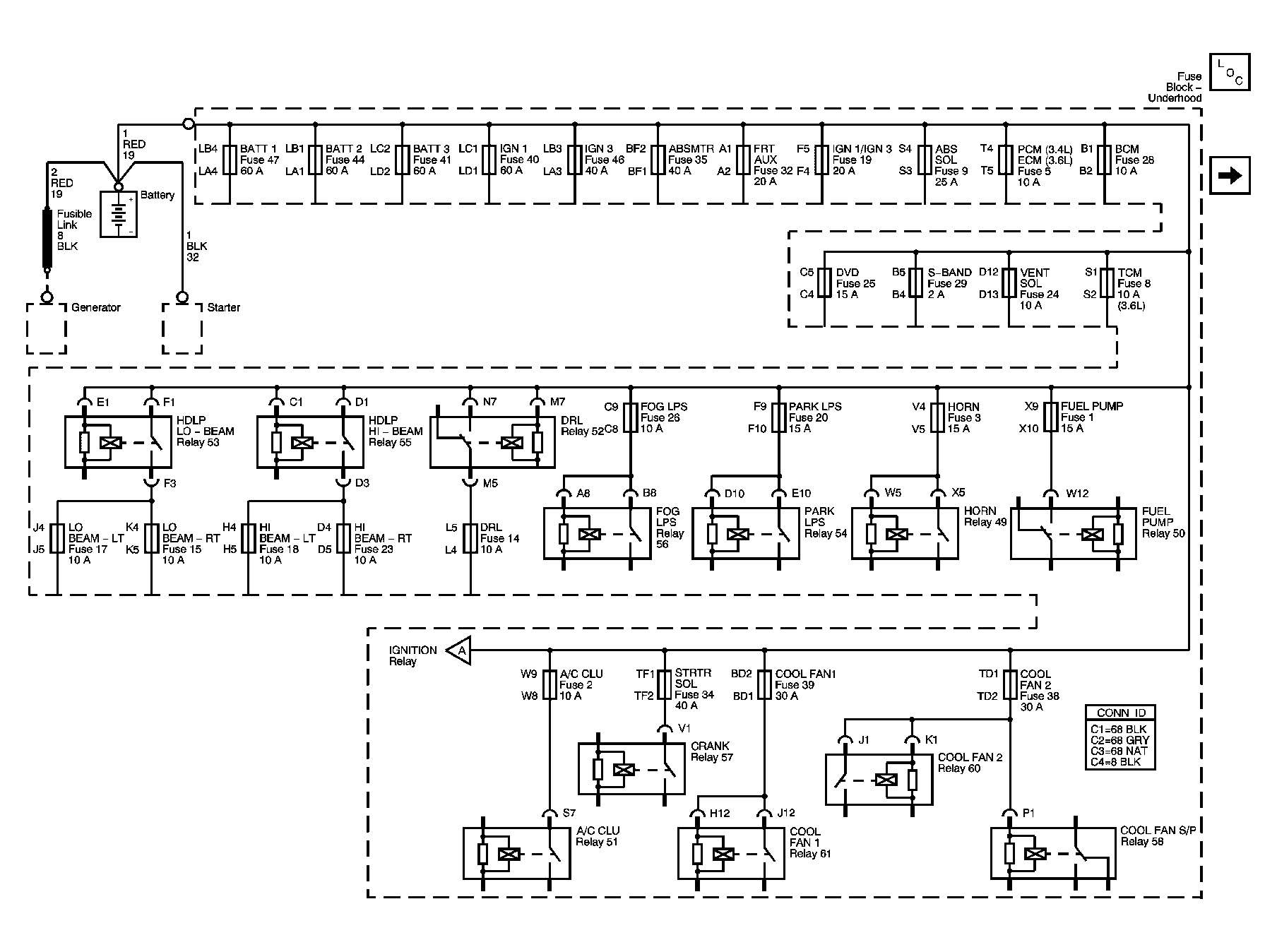

Fig 1: B+ Bus Schematic - (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: B+ Bus Schematic - (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

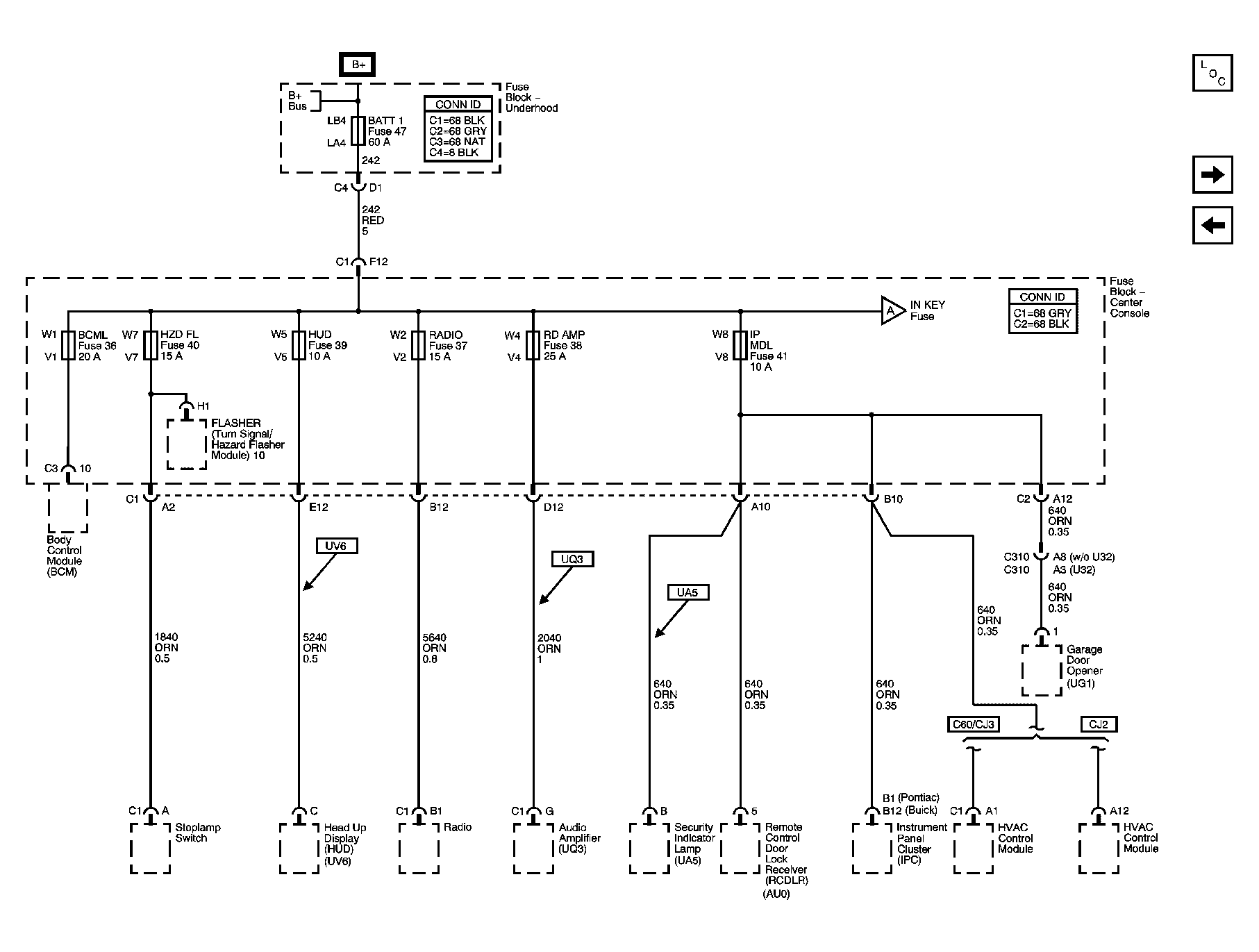

Fig 3: BATT 1, BCML, HUD, HZD FL, IP MDL, RADIO, & RD AMP Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

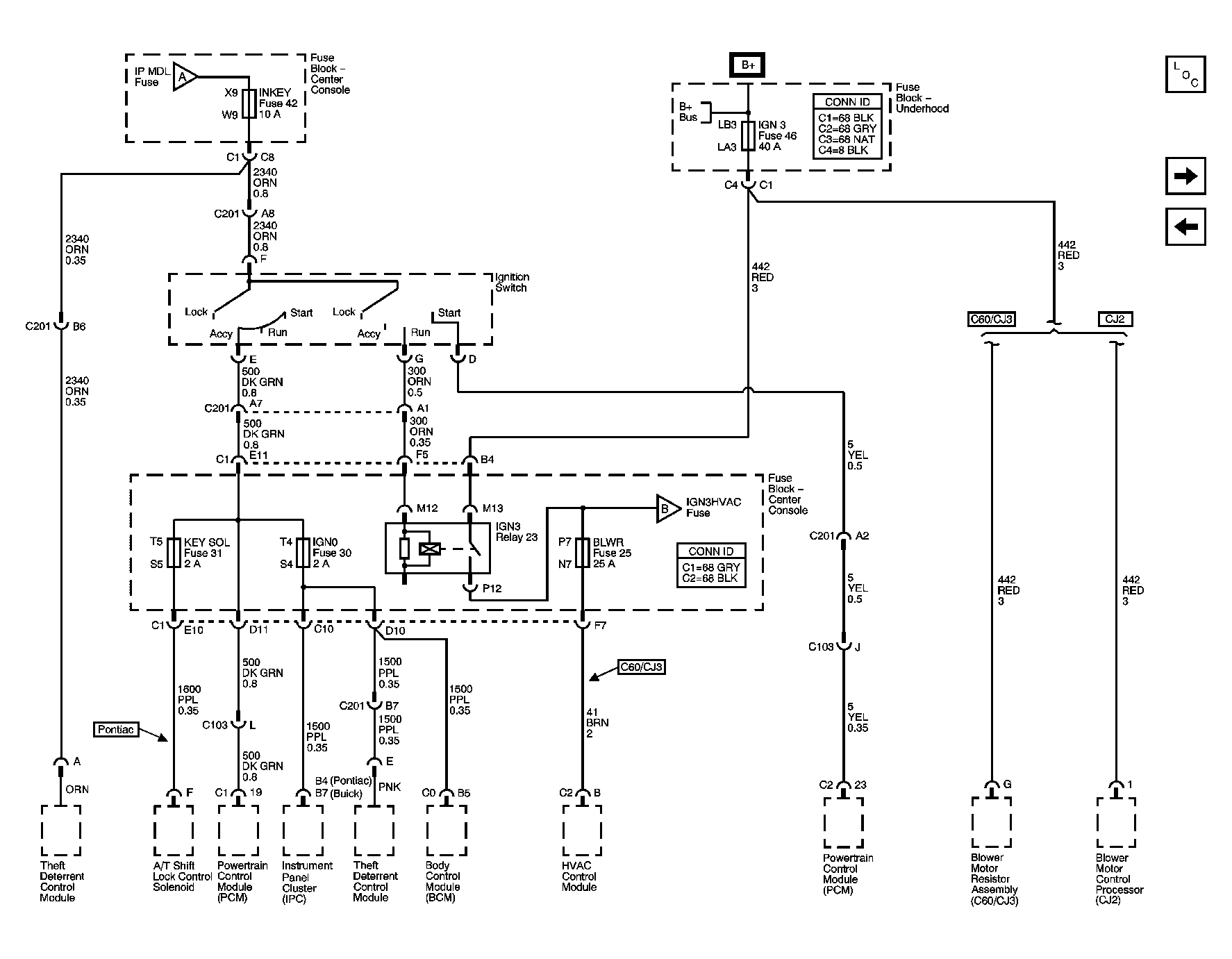

Fig 4: Ignition Switch - ACCY/RUN/START, RUN, & START Bus Bars and BLWR, IGN0, IGN 3, INKEY, & KEY SOL Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

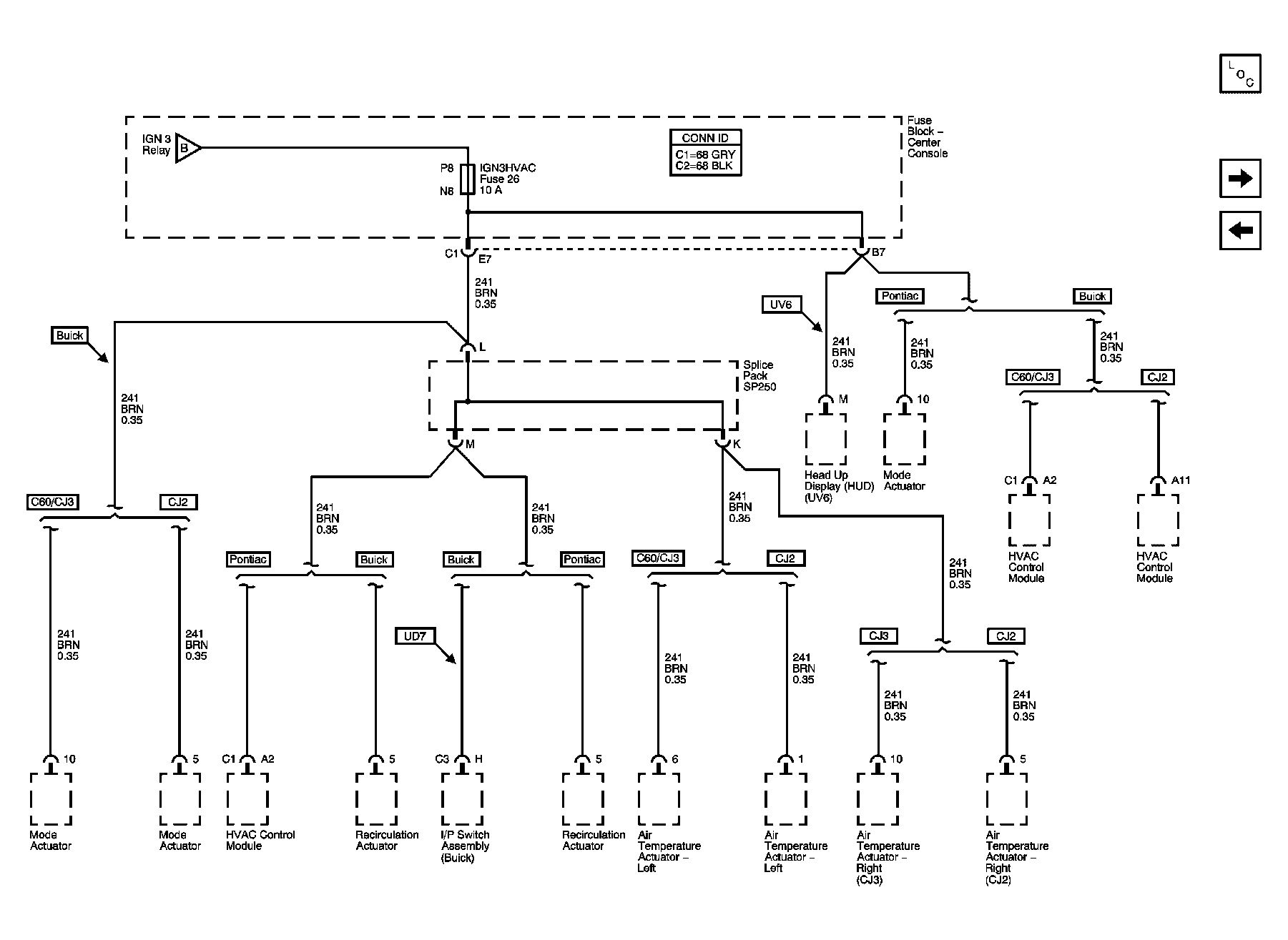

Fig 5: IGN3HVAC Fuse Schematic

Courtesy of GENERAL MOTORS CORP.

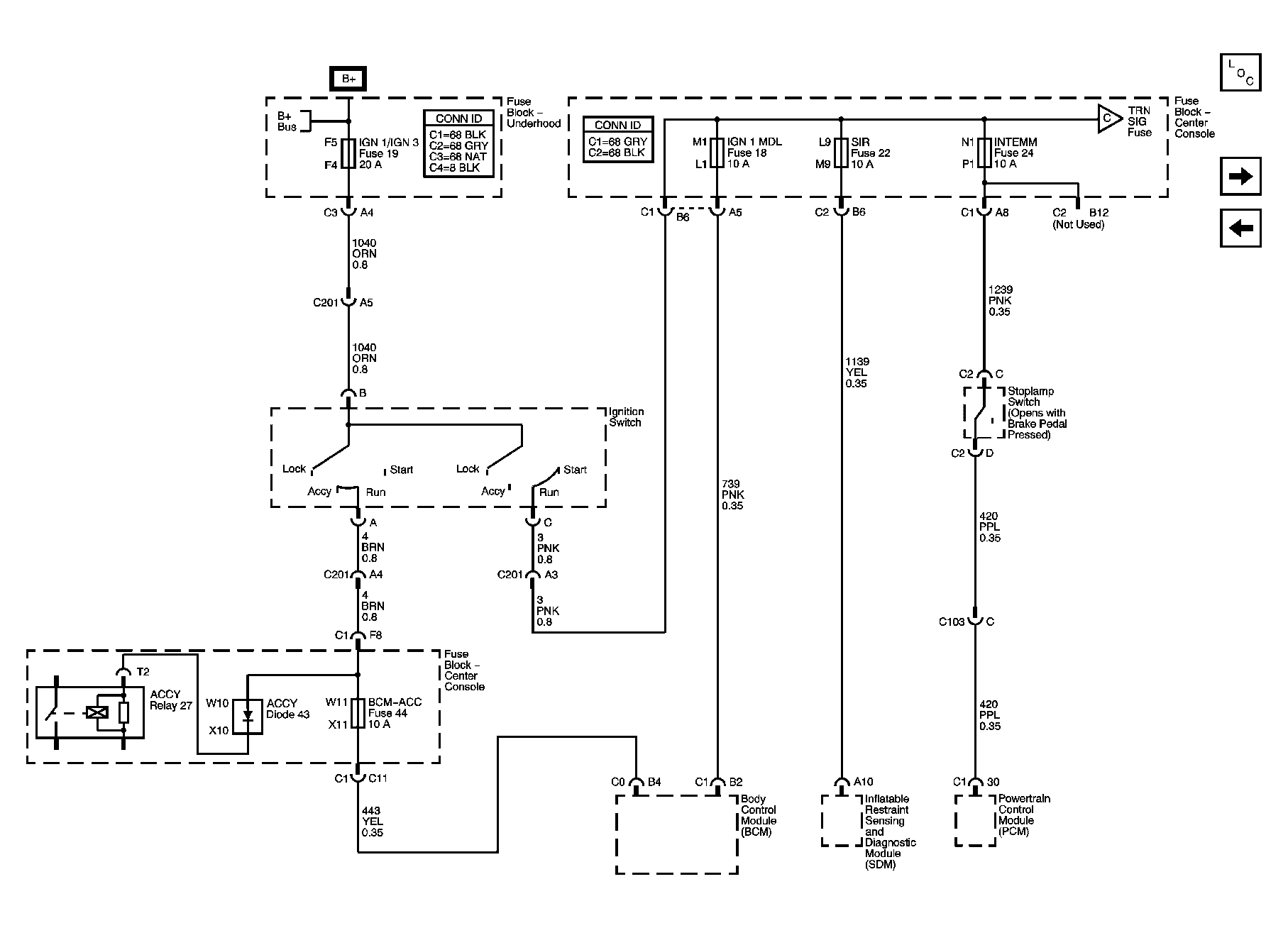

Fig 6: Ignition Switch - ACCY/RUN, and RUN/START Bus Bars and BCM-ACC, IGN 1 MDL, INTEMM and SIR Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

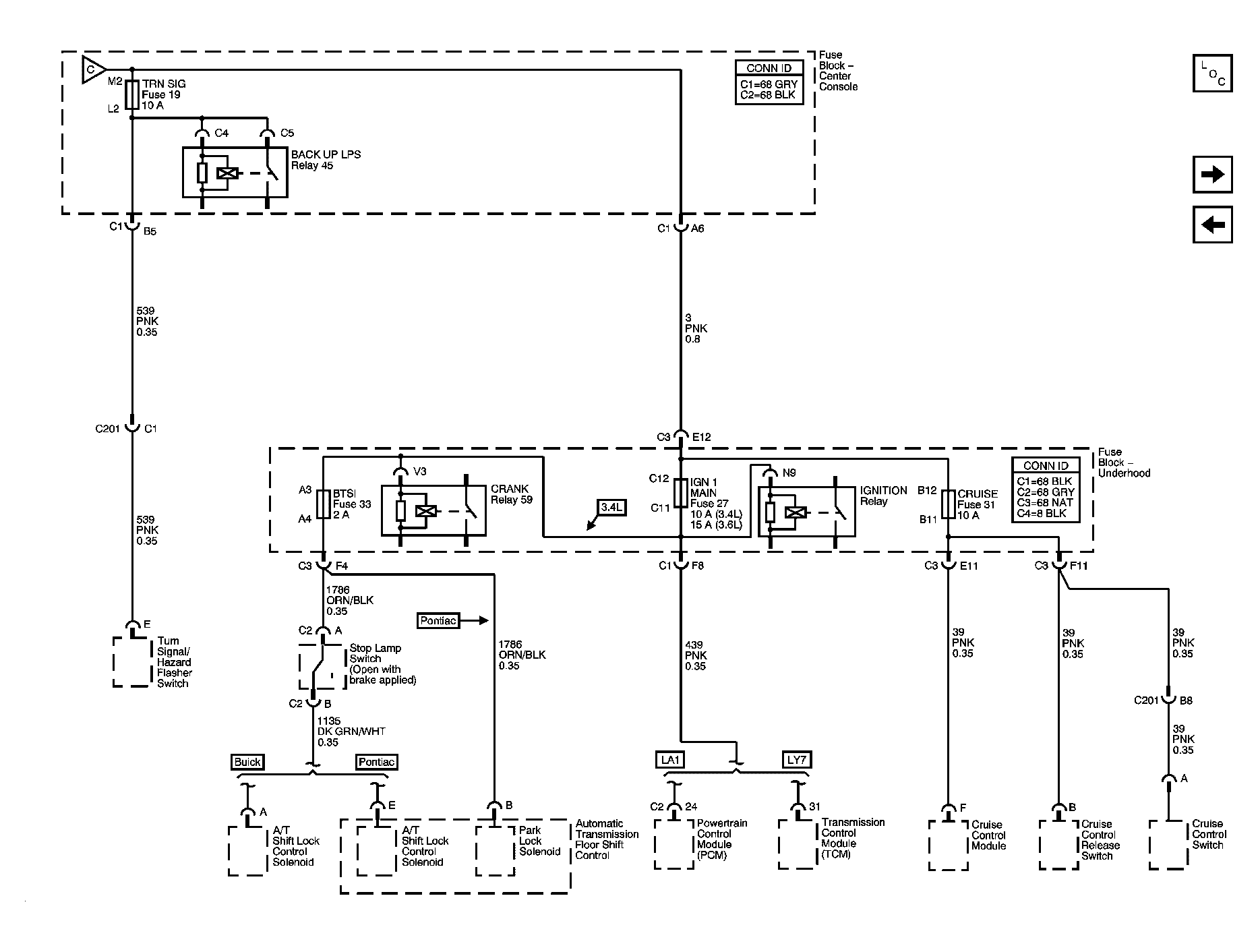

Fig 7: BTSI, CRUISE, IGN 1 MAIN, and TRN SIG Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

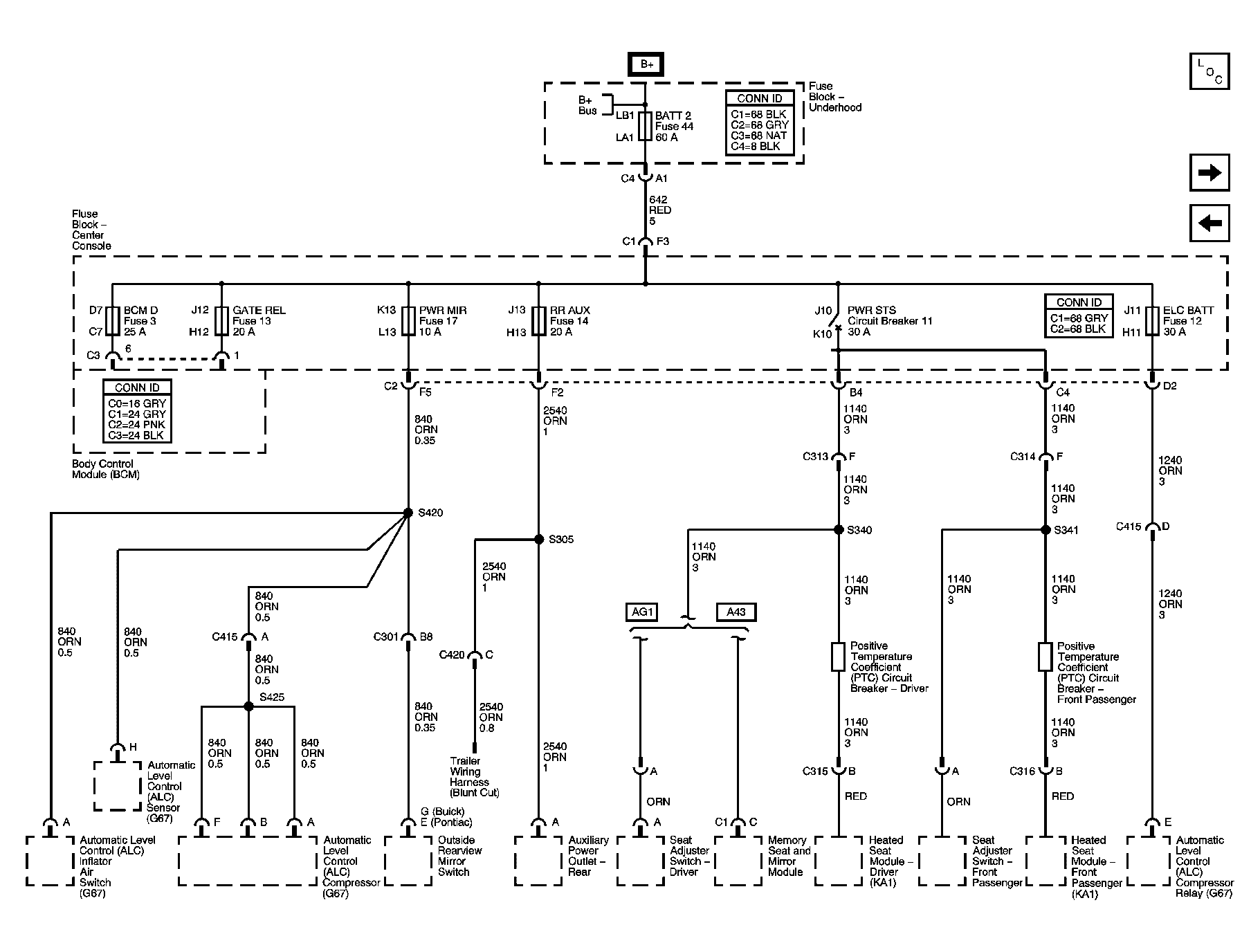

Fig 8: BATT 2, BCM D, ELC BATT, GATE REL, PWR MIR, PWR STS, and RR AUX Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

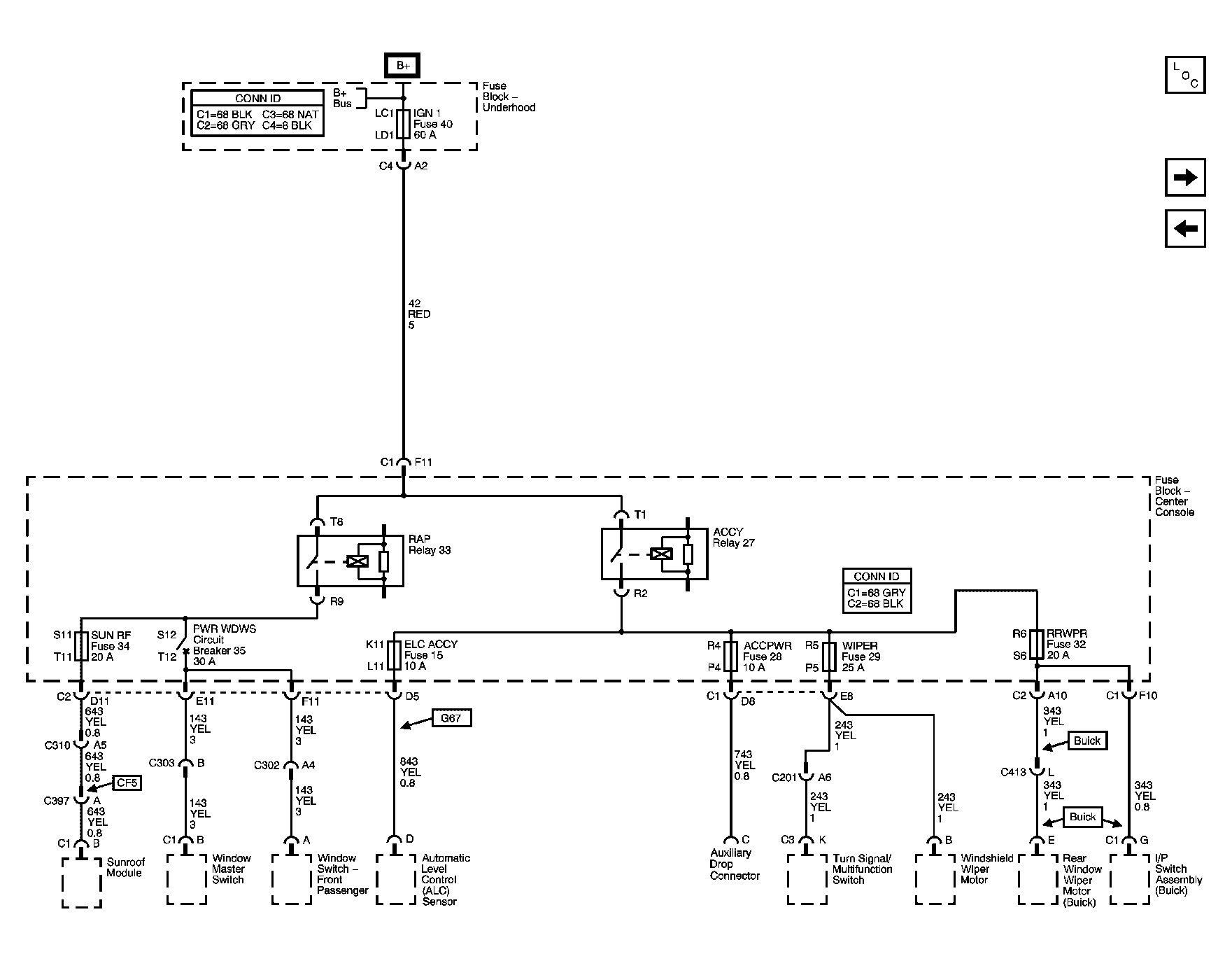

Fig 9: ACCPWR, ELC ACCY, IGN 1, RR WPR, SUN RF, WIPER Fuses and PWR WDWS Circuit Breaker Schematic

Courtesy of GENERAL MOTORS CORP.

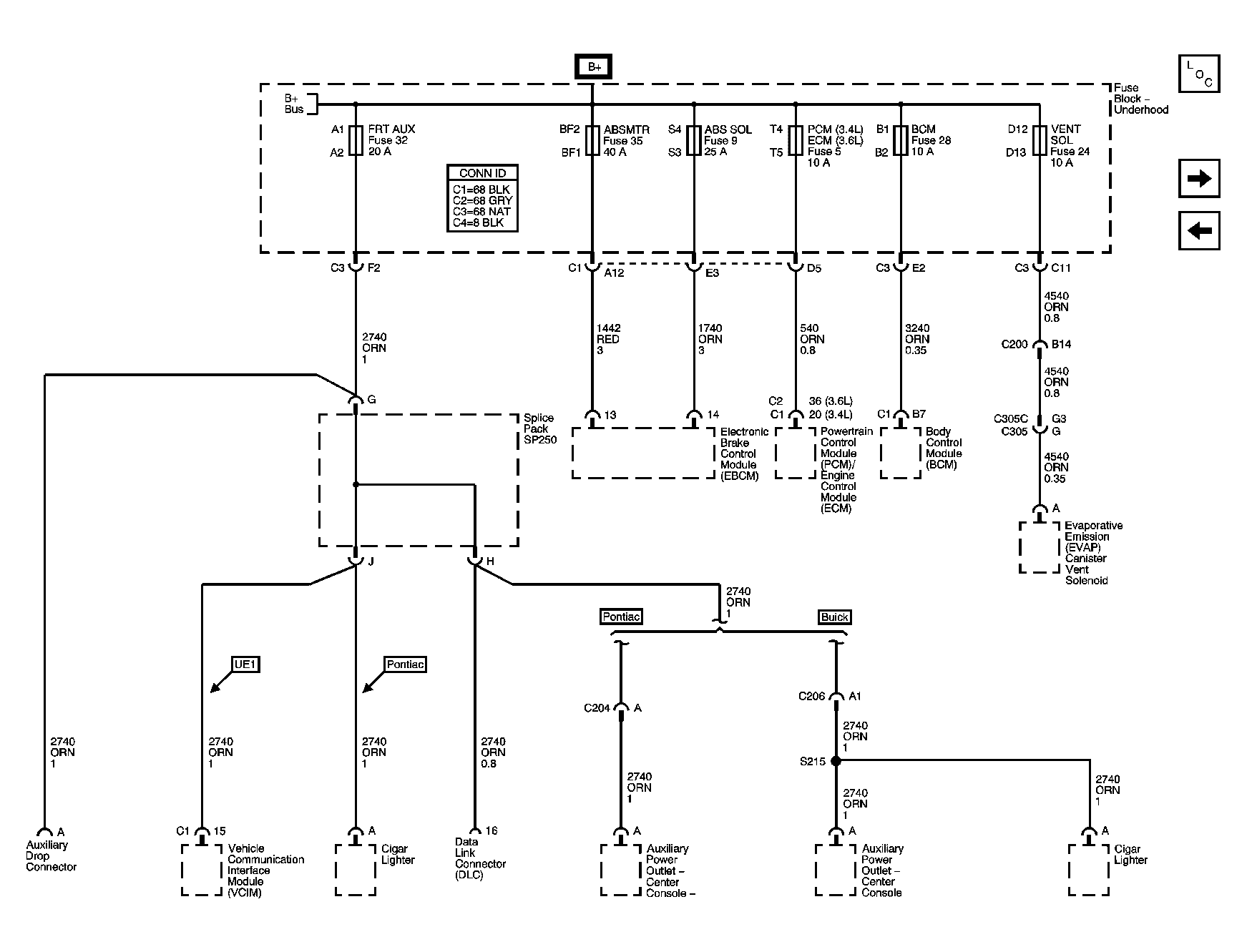

Fig 10: ABSMTR, ABS SOL, BCM, ECM (3.6L), FRT AUX, PCM (3.4L), and VENT SOL Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

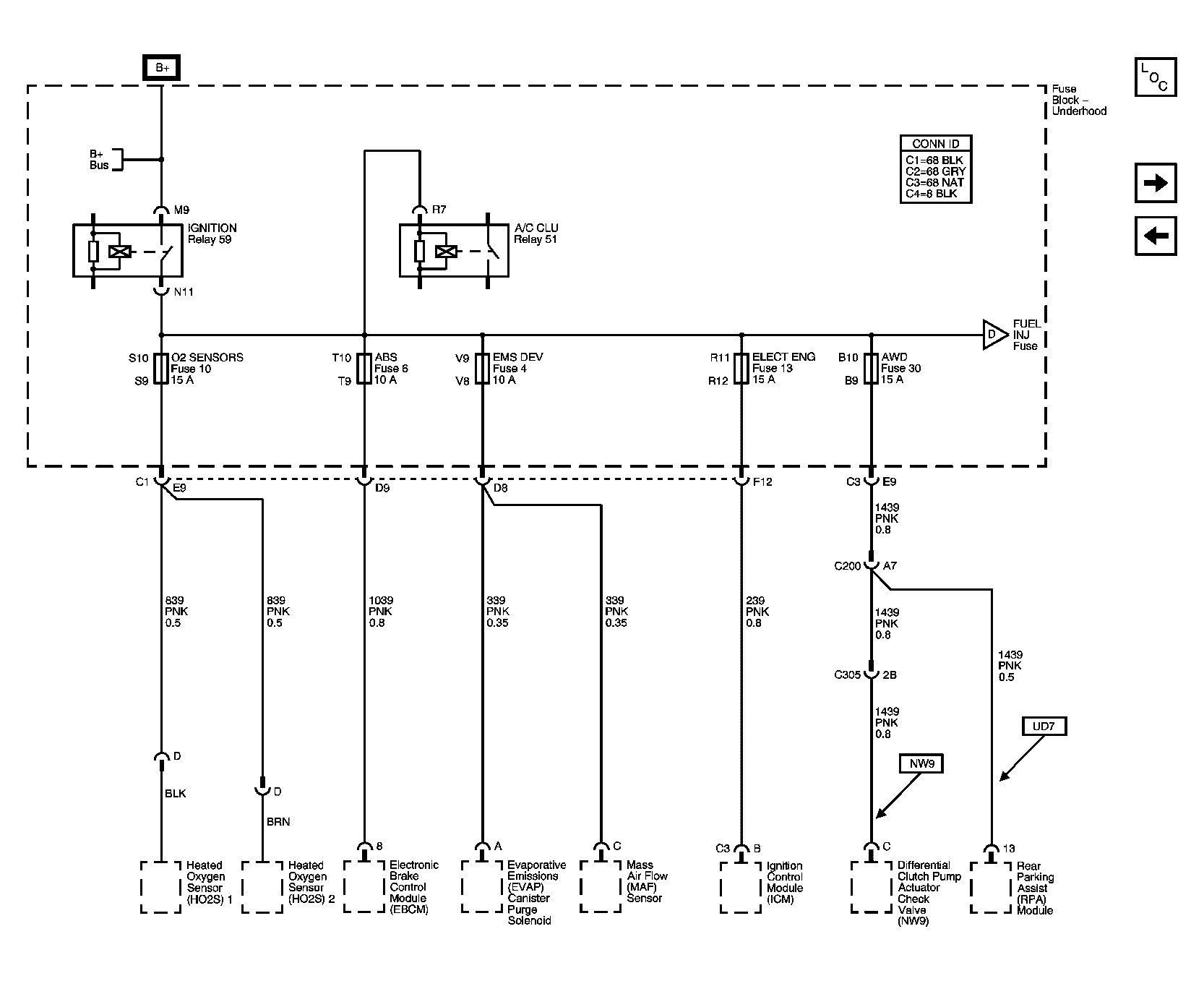

Fig 11: ABS, AWD, ELEC ENG, EMS DEV, O2 SENSORS Fuses and IGNITION Relay - 3.4L Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: FUEL INJ and TRANS SOL Fuses - 3.4L Schematic

Courtesy of GENERAL MOTORS CORP.

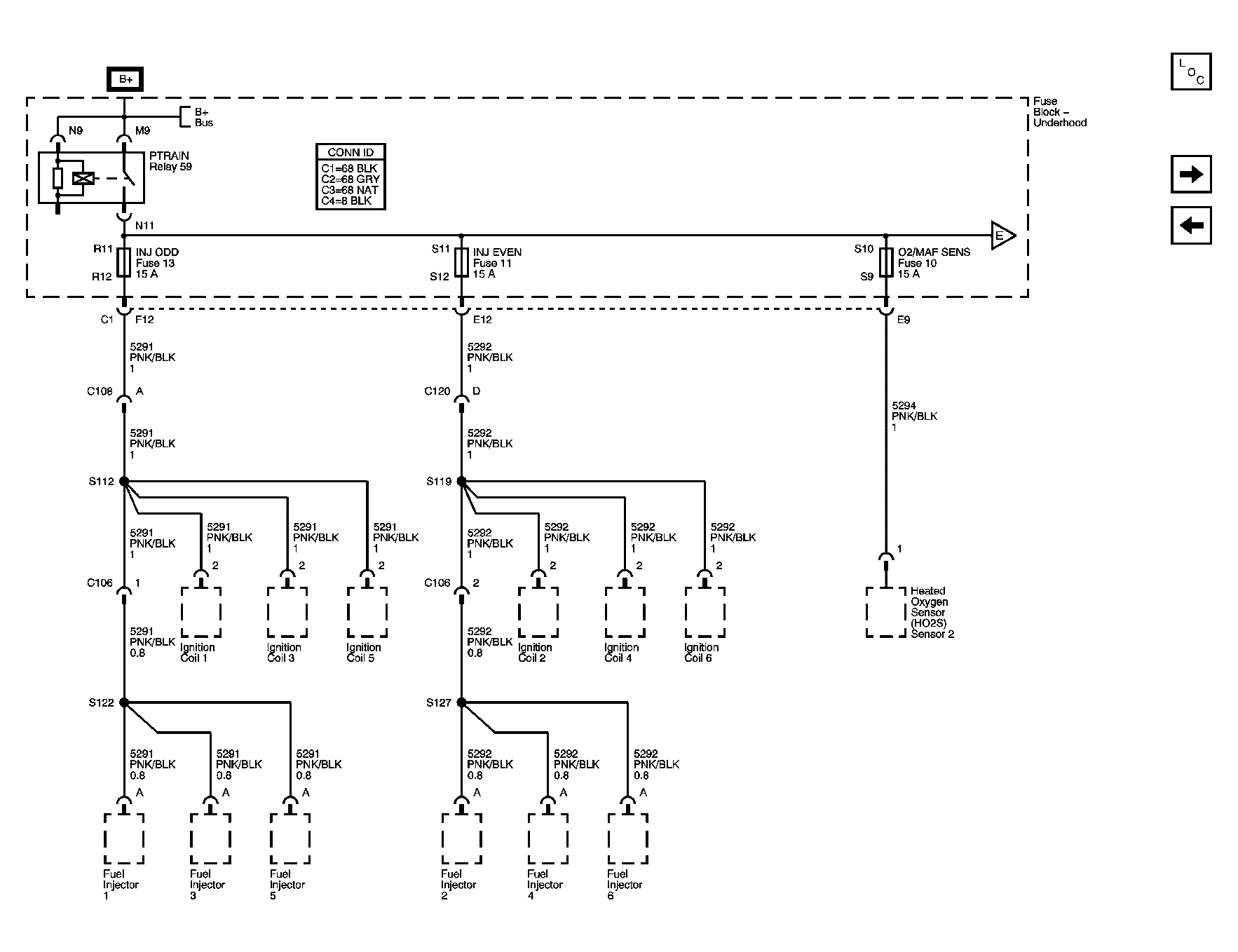

Fig 13: INJ EVEN, INJ ODD, and O2/MAF SENS - 3.6L Schematic

Courtesy of GENERAL MOTORS CORP.

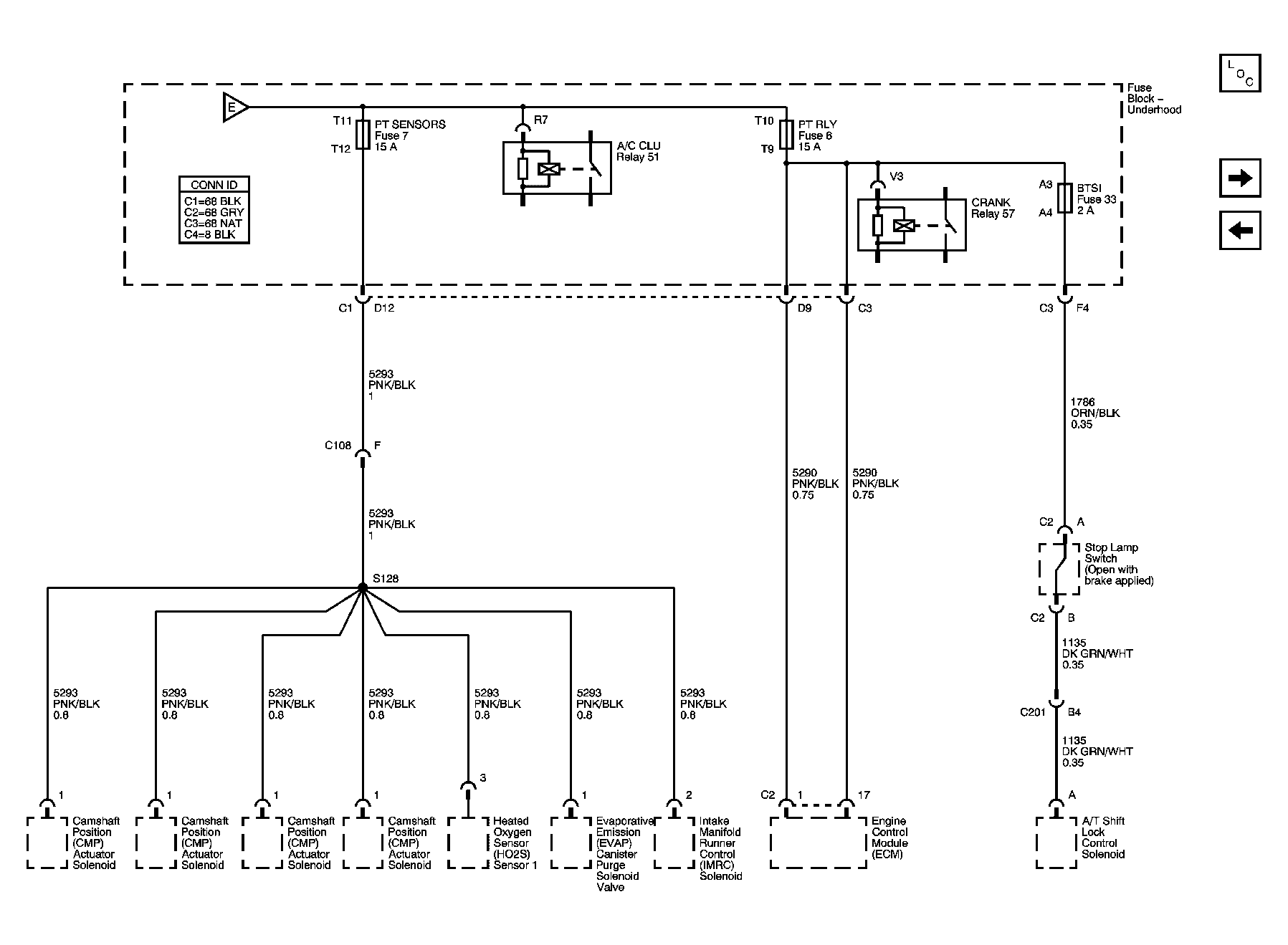

Fig 14: BTSI, PT RLY, and PT SENSORS Fuses - 3.6L Schematic

Courtesy of GENERAL MOTORS CORP.

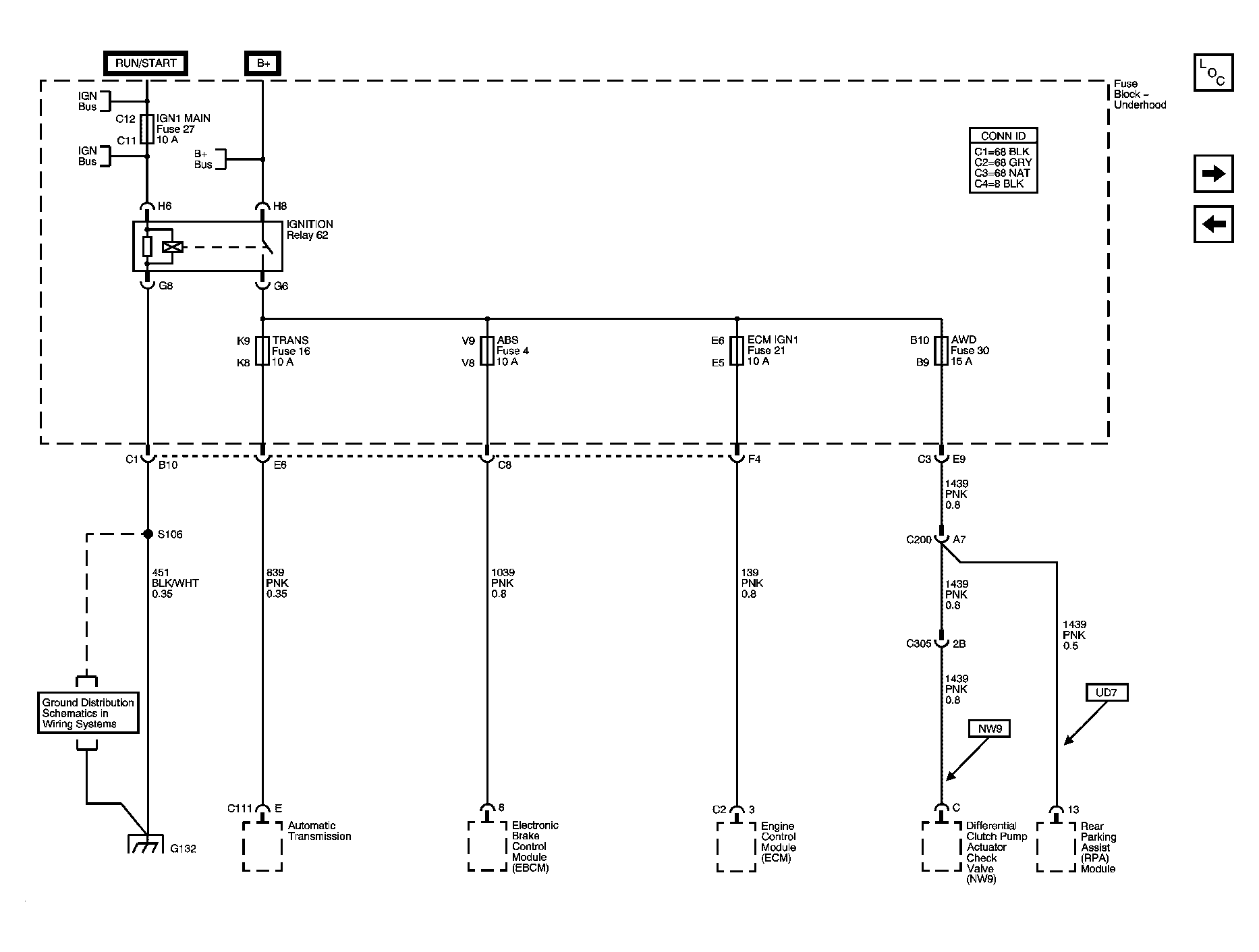

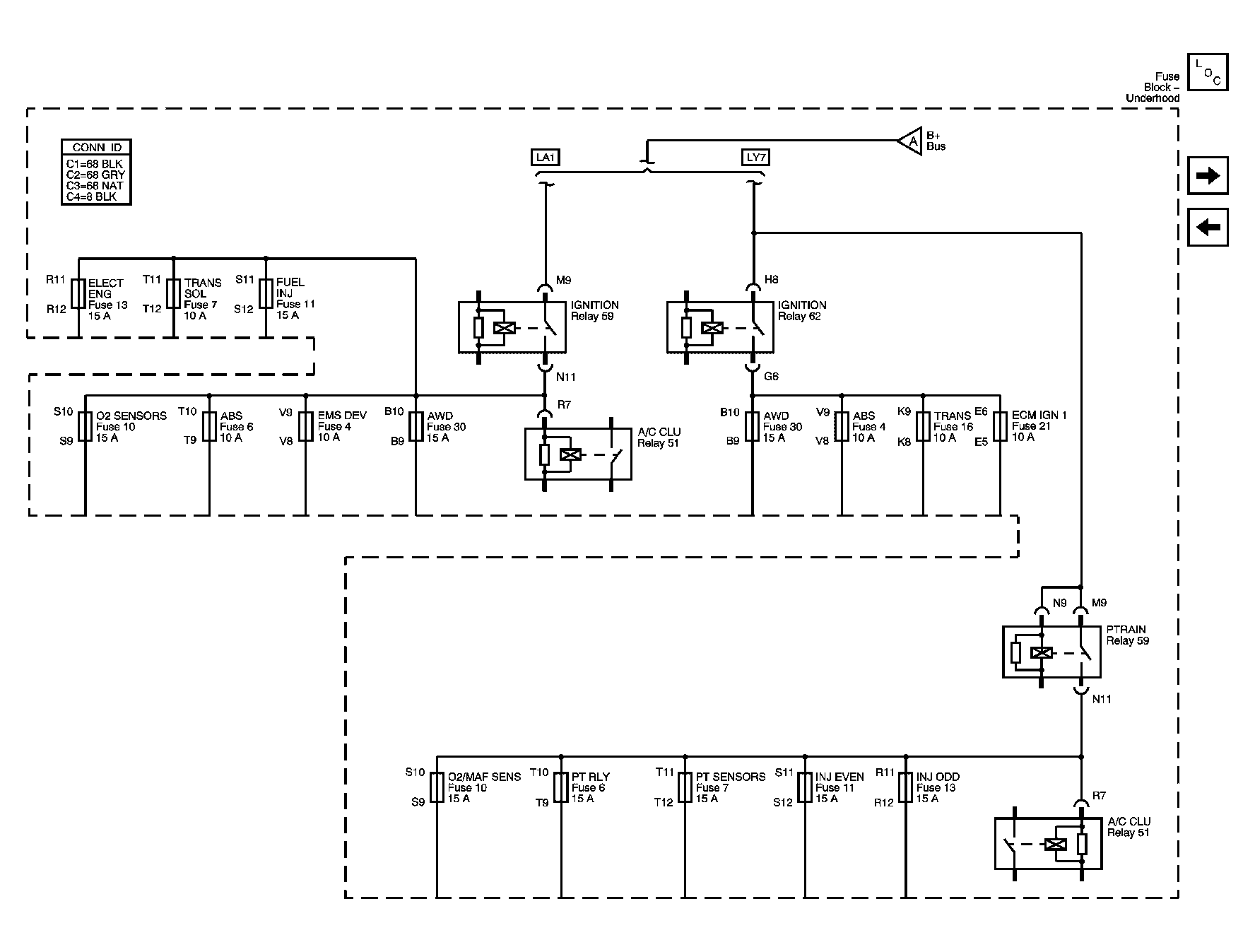

Fig 15: ABS, AWD, ECM IGN1, TCM Fuses, and IGNITION Relay - 3.6L Schematic

Courtesy of GENERAL MOTORS CORP.

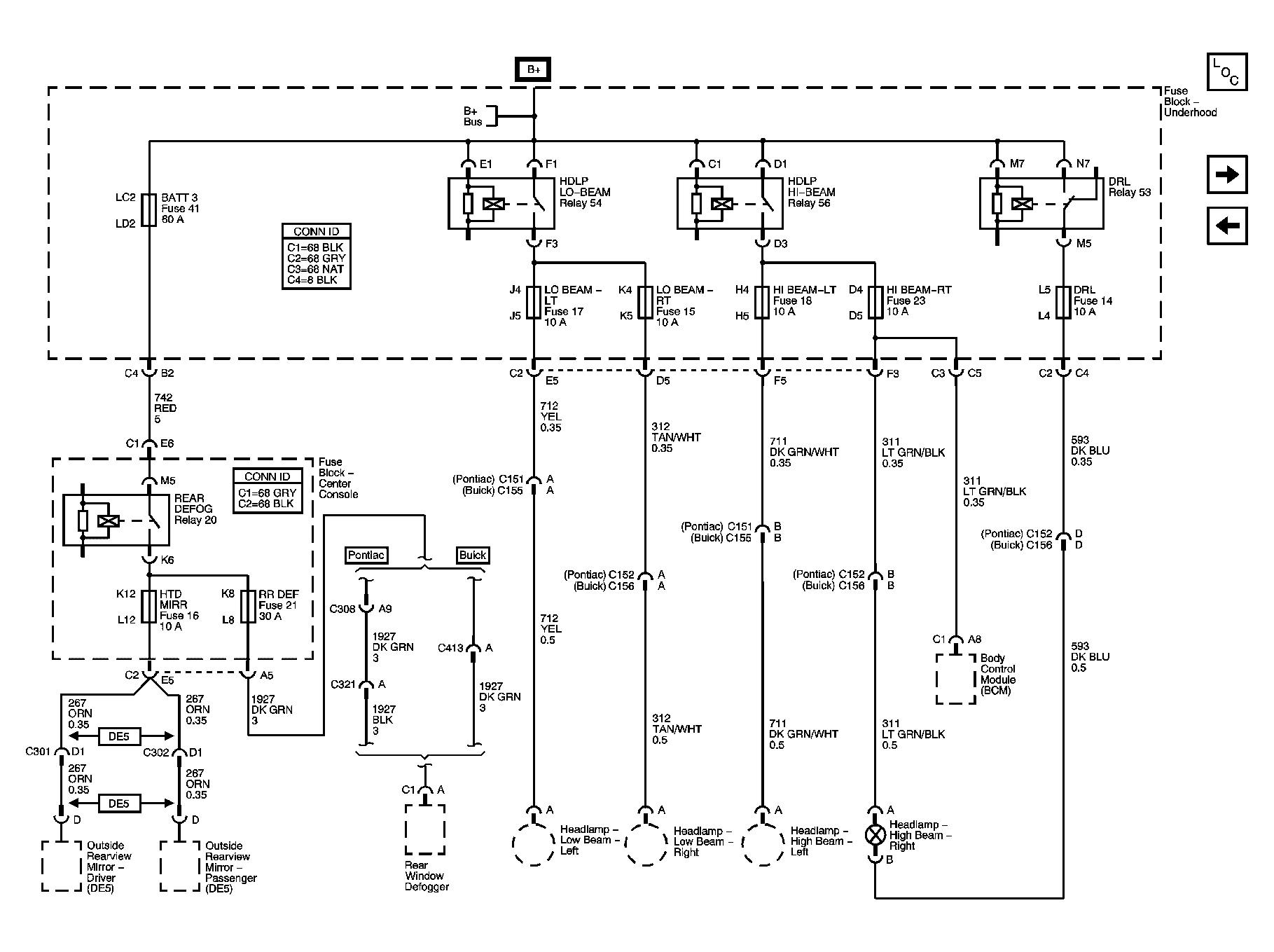

Fig 16: BATT 3, DRL, HI BEAM-LT, HI BEAM-RT, HTD MIRR, LO BEAM-LT, LO BEAM-RT, and RR DEF Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

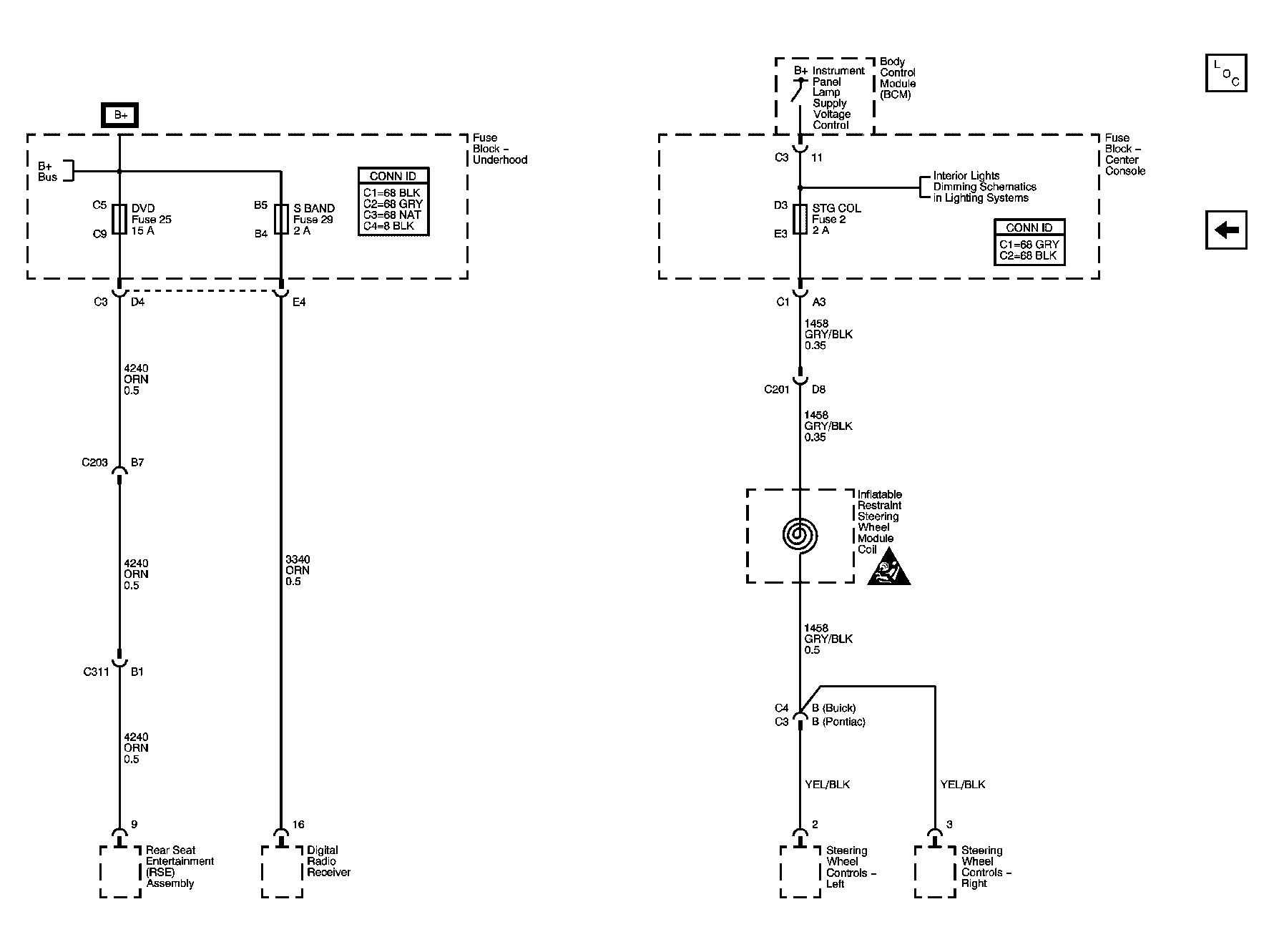

Fig 17: DVD, S BAND, and STG COL Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
