Exhaust Pipe Installation - Right

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Position the exhaust pipe gaskets with the tabs as shown. Failure to do so will cause improper alignment of the gaskets and result in exhaust leaks.

Install the exhaust pipe with gaskets - Federal Emissions.
Install the exhaust outlet bracket.
Install the exhaust pipe to turbocharger bolts.

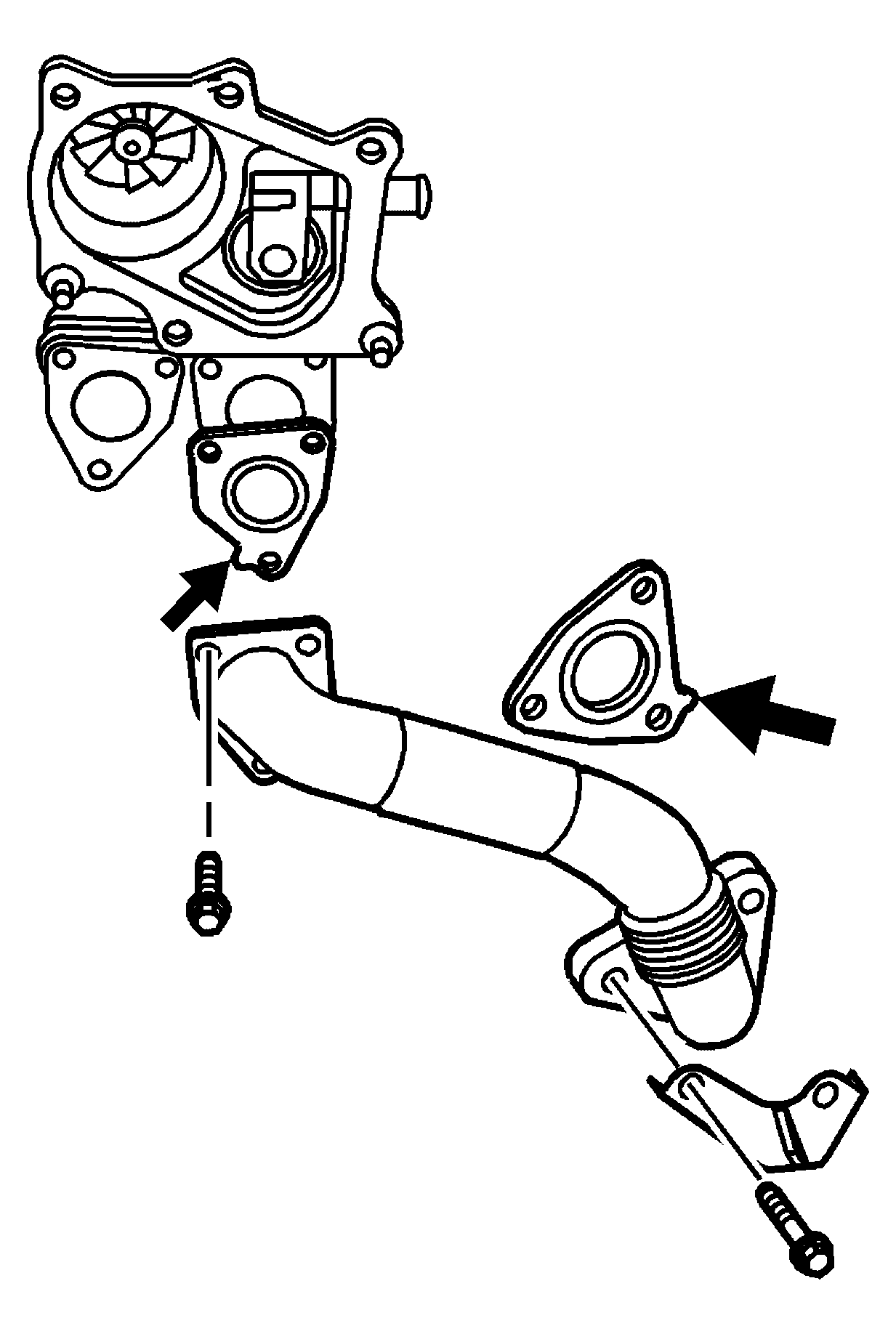

Fig 1: View Of Right Exhaust Pipe & Gaskets (Federal Emissions)

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Position the exhaust pipe gaskets with the tabs as shown. Failure to do so will cause improper alignment of the gaskets and result in exhaust leaks.

Install the exhaust pipe with gaskets - California Emissions.
Install the exhaust outlet bracket.
Install the exhaust pipe to turbocharger bolts.

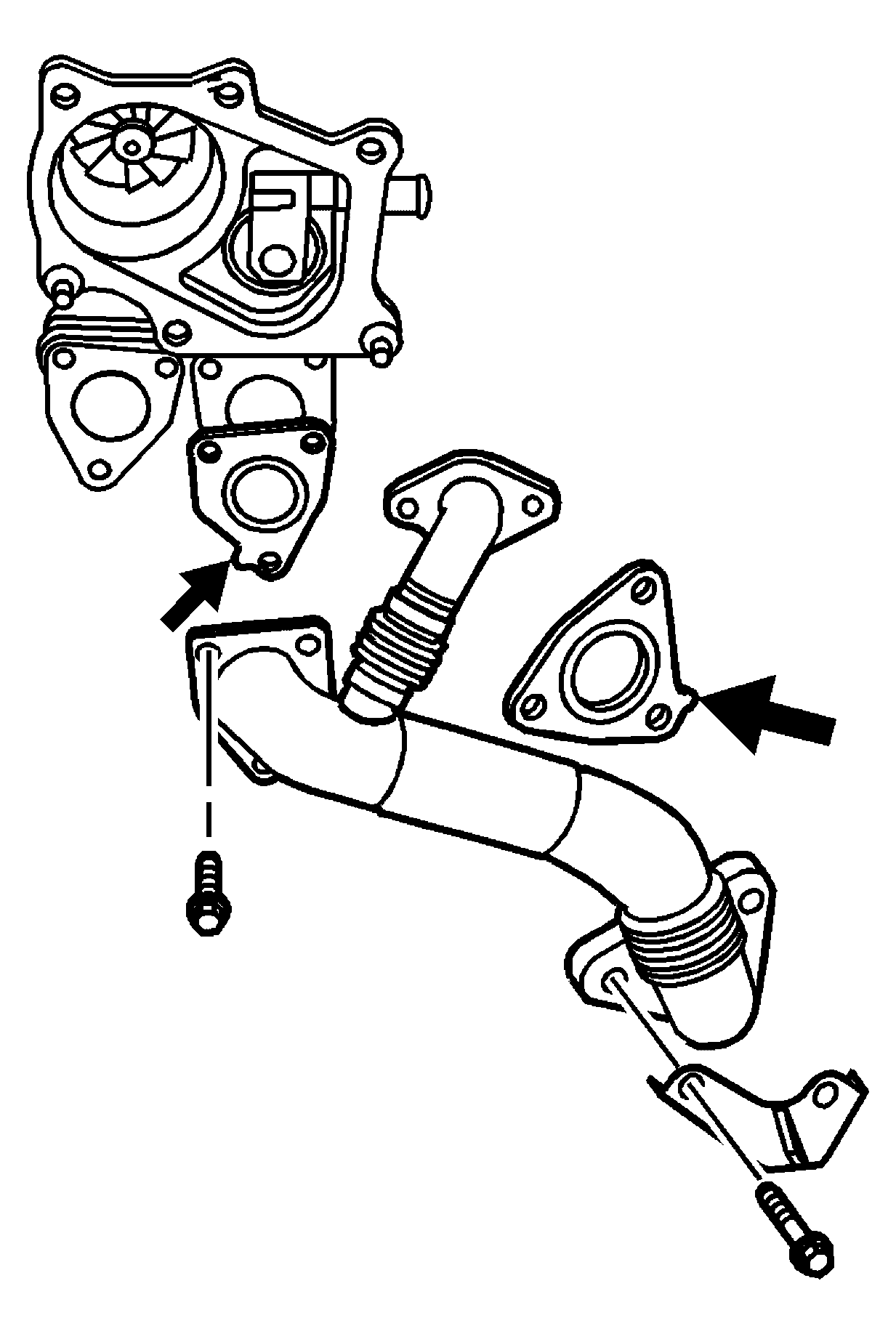

Fig 2: View Of Right Exhaust Pipe & Gaskets (California Emissions)

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the exhaust pipe to exhaust manifold bolts - Federal Emissions in sequence.
Tighten: Tighten the exhaust pipe bolts to 53 N.m (39 lb ft).

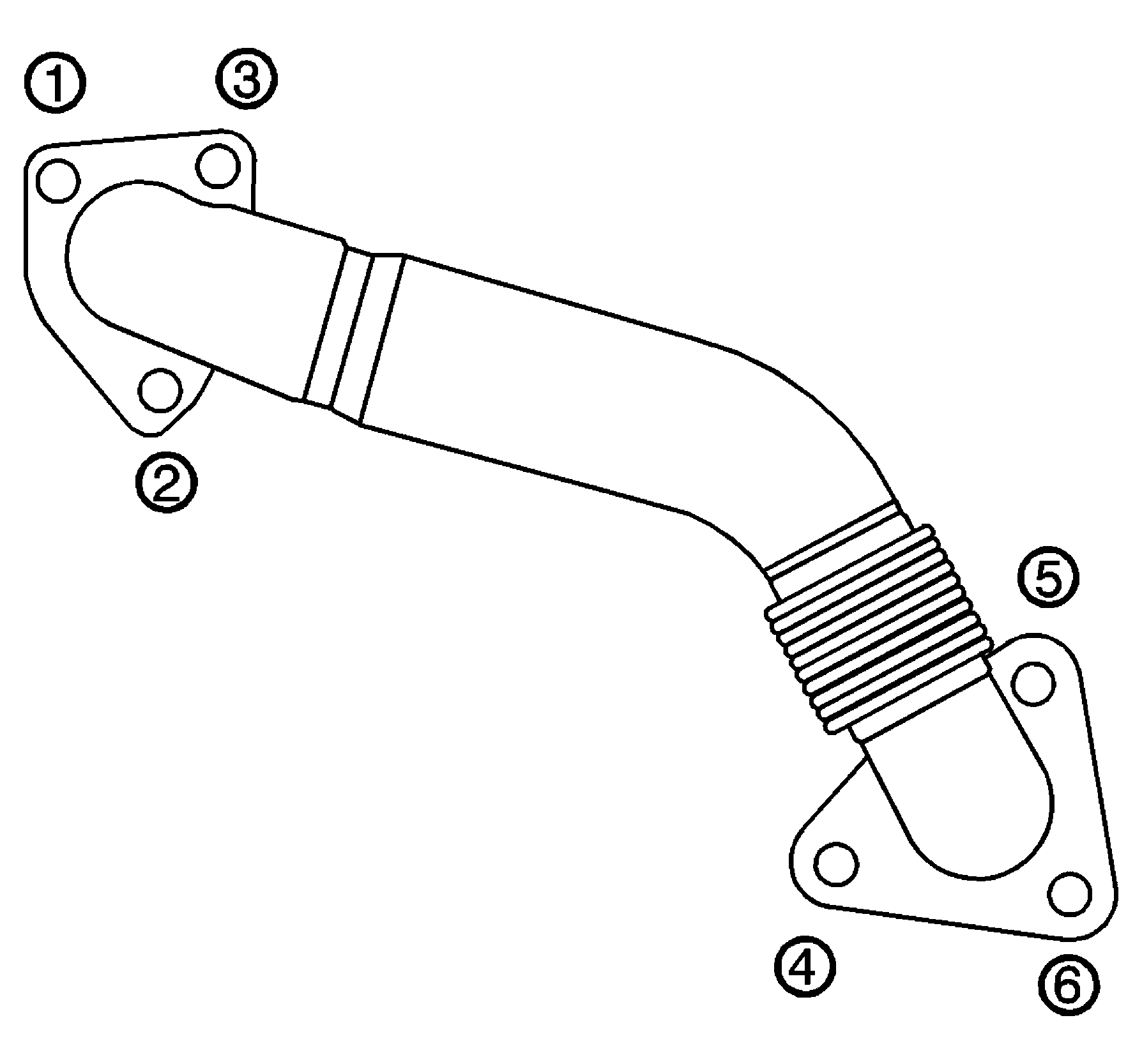

Fig 3: Right Exhaust Pipe Bolt Tightening Sequence (Federal Emissions)

Courtesy of GENERAL MOTORS CORP.

Install the exhaust pipe to exhaust manifold bolts - California Emissions in sequence.
Tighten: Tighten the exhaust pipe bolts to 53 N.m (39 lb ft).

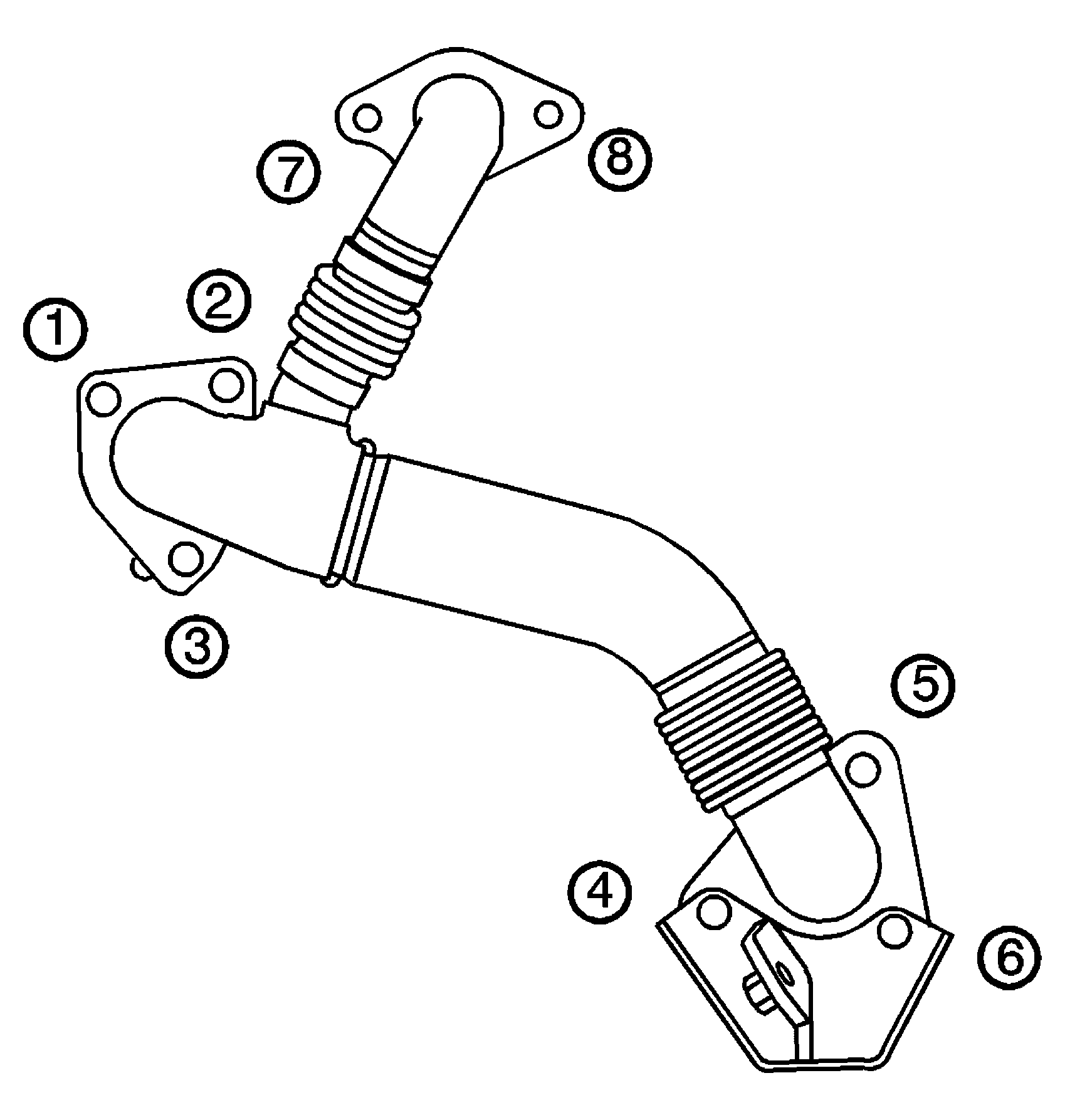

Fig 4: Right Exhaust Pipe Bolt Tightening Sequence (California Emissions)

Courtesy of GENERAL MOTORS CORP.
