Drive Belt Tensioner and Generator Mounting Bracket Installation

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 25033-C  Pulley Installer

  1. Install the drive belt tensioner and generator mounting bracket.
  2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the drive belt tensioner and generator mounting bracket bolts.

    Tighten:  Tighten the drive belt tensioner and generator mounting bracket bolts to 50 N.m (37 lb ft).

  4. Fig 1: View Of Drive Belt Tensioner & Generator Mounting Bracket
    GM798876Courtesy of GENERAL MOTORS CORP.
  5. Install the vacuum pump - California Emissions.
  6. Install the vacuum pump bolts - California Emissions.

    Tighten:  Tighten the vacuum pump bolts to 22 N.m (16 lb ft).

  7. Install the vacuum pump pulley using J 25033-C  - California Emissions

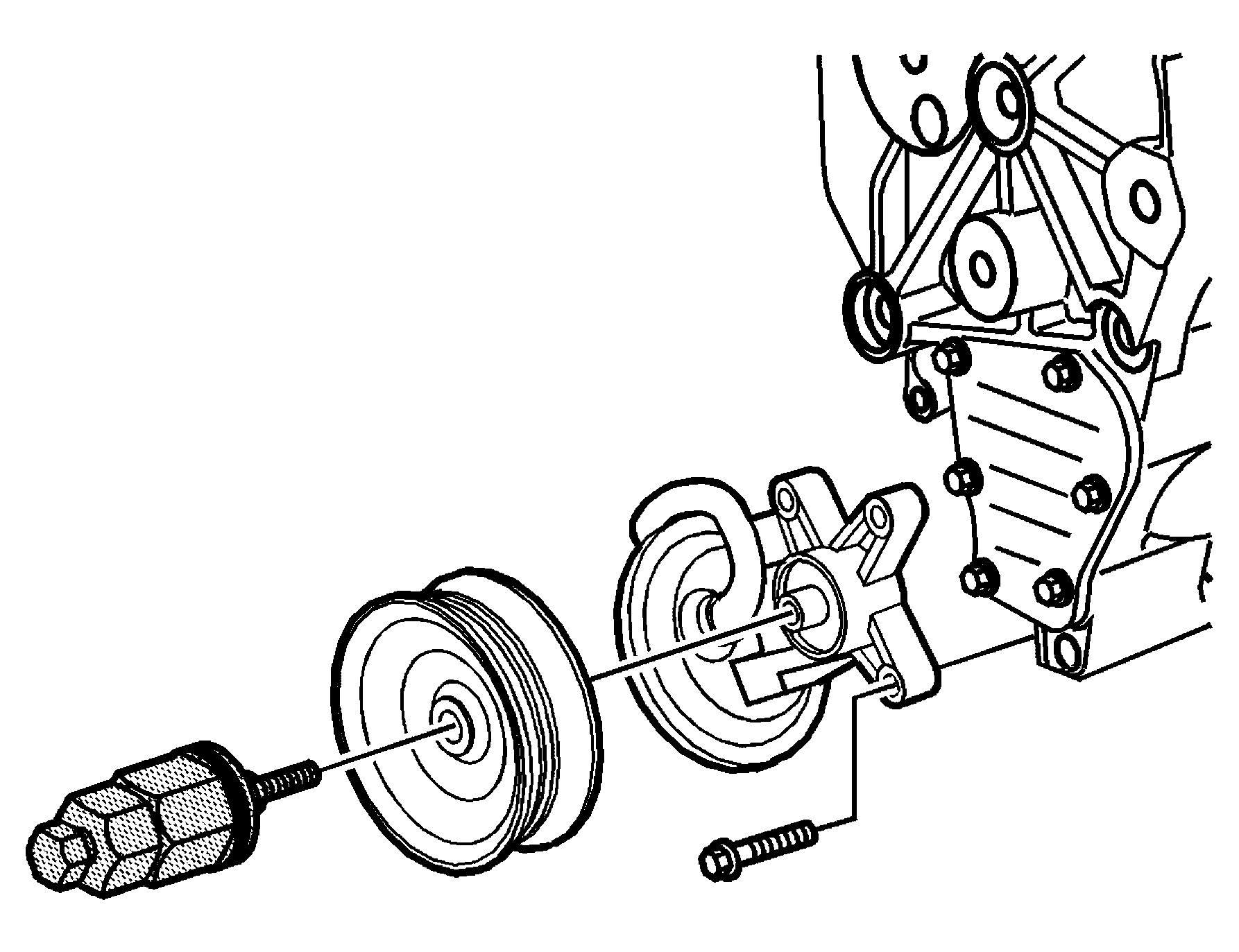

  8. Fig 2: View Of Vacuum Pump Pulley & J 250033-C (California Emissions)
    GM881768Courtesy of GENERAL MOTORS CORP.
  9. Install the tensioner pulley.
  10. Install the tensioner pulley bolt.

    Tighten:  Tighten the tensioner pulley bolt to 50 N.m (37 lb ft).

  11. Install the left idler pulley.
  12. Install the left idler pulley bolt.

    Tighten:  Tighten the left idler pulley bolt to 50 N.m (37 lb ft).

  13. Install the right idler pulley.
  14. Install the right idler pulley bolt.

    Tighten:  Tighten the right idler pulley bolt to 50 N.m (37 lb ft).

  15. Fig 3: View Of Left, Right Idler Pulleys & Tensioner Pulley
    GM798945Courtesy of GENERAL MOTORS CORP.
  16. Install the schrader valve bracket (4).
  17. Install the schrader valve (3).
  18. Install the fuel injection control module harness bracket (2).
  19. Install the fuel injection control module harness bracket nuts (1).
  20. Fig 4: View of Schrader Valve, Bracket & Fuel Injection Control Module Harness Bracket
    GM755184Courtesy of GENERAL MOTORS CORP.
  21. Connect the crankcase vent hose to the engine block.
  22. Fig 5: View Of Crankcase Vent Hose At Engine Block
    GM798872Courtesy of GENERAL MOTORS CORP.
  23. Install the crankcase ventilation hoses to the valve rocker arm covers.
  24. Fig 6: View Of Crankcase Ventilation Hoses At Valve Rocker Arm Covers
    GM687021Courtesy of GENERAL MOTORS CORP.
