Exhaust Gas Recirculation (EGR) Cooler Cleaning and Inspection (California Emissions)

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the EGR cooling hoses.
  2. Clean and inspect the EGR gasket surfaces.
  3. Clean and inspect the EGR and cooler.
  4. Replace the EGR or cooler if damaged.

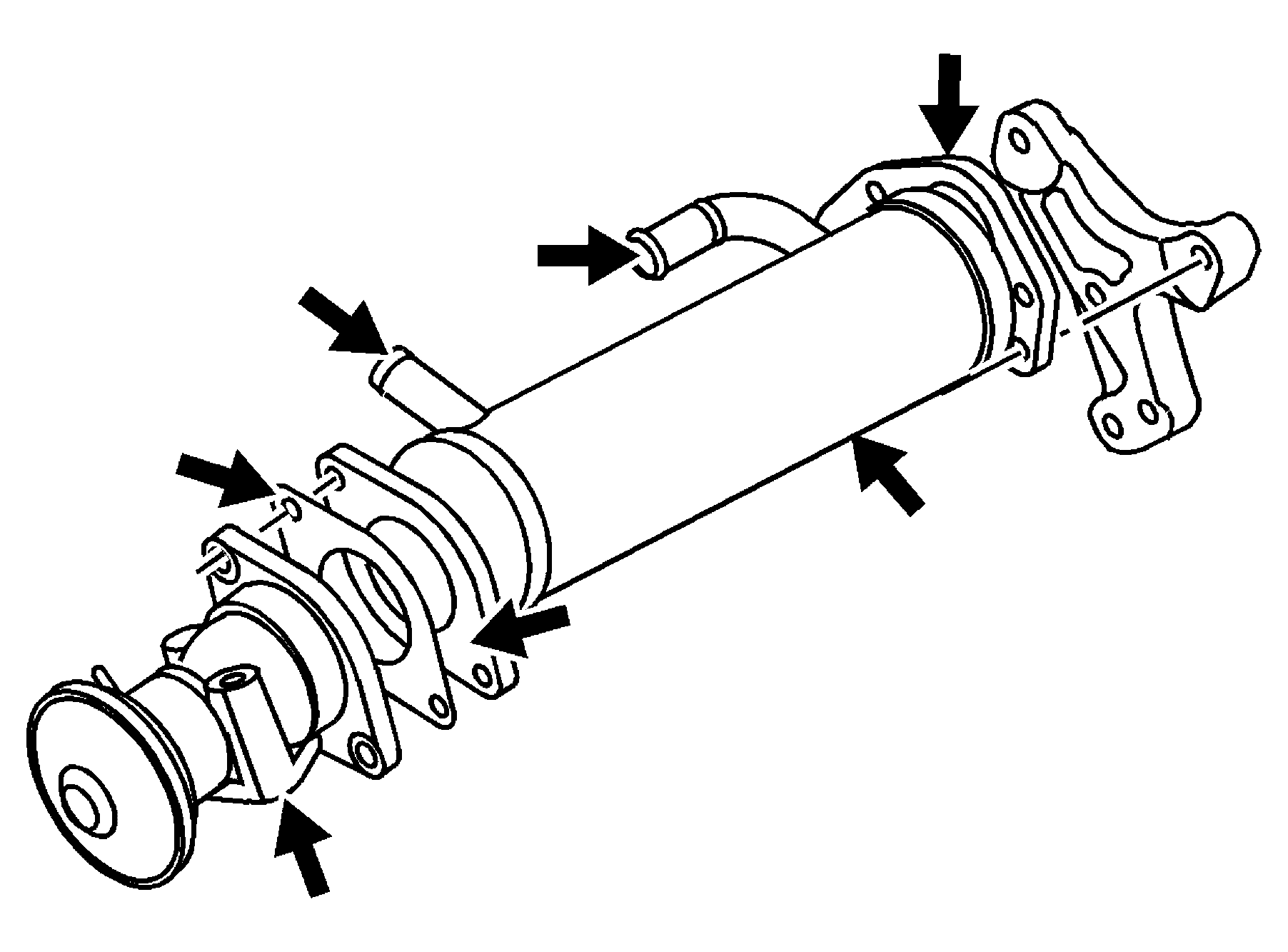

    5. Fig 1: View Of EGR Cooler Inspection Areas (California Emissions)
    GM798911Courtesy of GENERAL MOTORS CORP.
