Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a NEW exhaust manifold gasket.

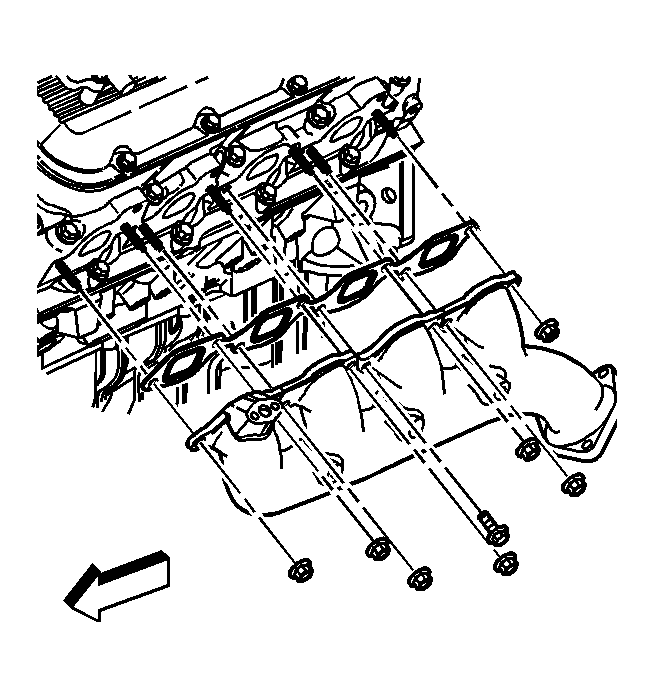

    Fig 1: View Of Left Exhaust Manifold, Gasket, Bolts And Nuts
    GM470679Courtesy of GENERAL MOTORS CORP.
  2. Install the exhaust manifold.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the exhaust manifold bolt and nuts.

    Tighten:

    • Tighten the bolt to 35 N.m (26 lb ft).
    • Tighten the nuts to 16 N.m (12 lb ft).

  4. Raise the vehicle.
    5. Fig 2: Exhaust Manifold Heat Shield (8.1L Engine)
    GM858561Courtesy of GENERAL MOTORS CORP.
  5. Install the exhaust manifold heat shield.
  6. Install the exhaust manifold heat shield bolts and nuts.

    Tighten:  Tighten the bolts and nuts to 25 N.m (18 lb ft).

  7. Lower the vehicle.
  8. Install the spark plugs. Refer to Spark Plug Replacement in Engine Controls - 8.1L.

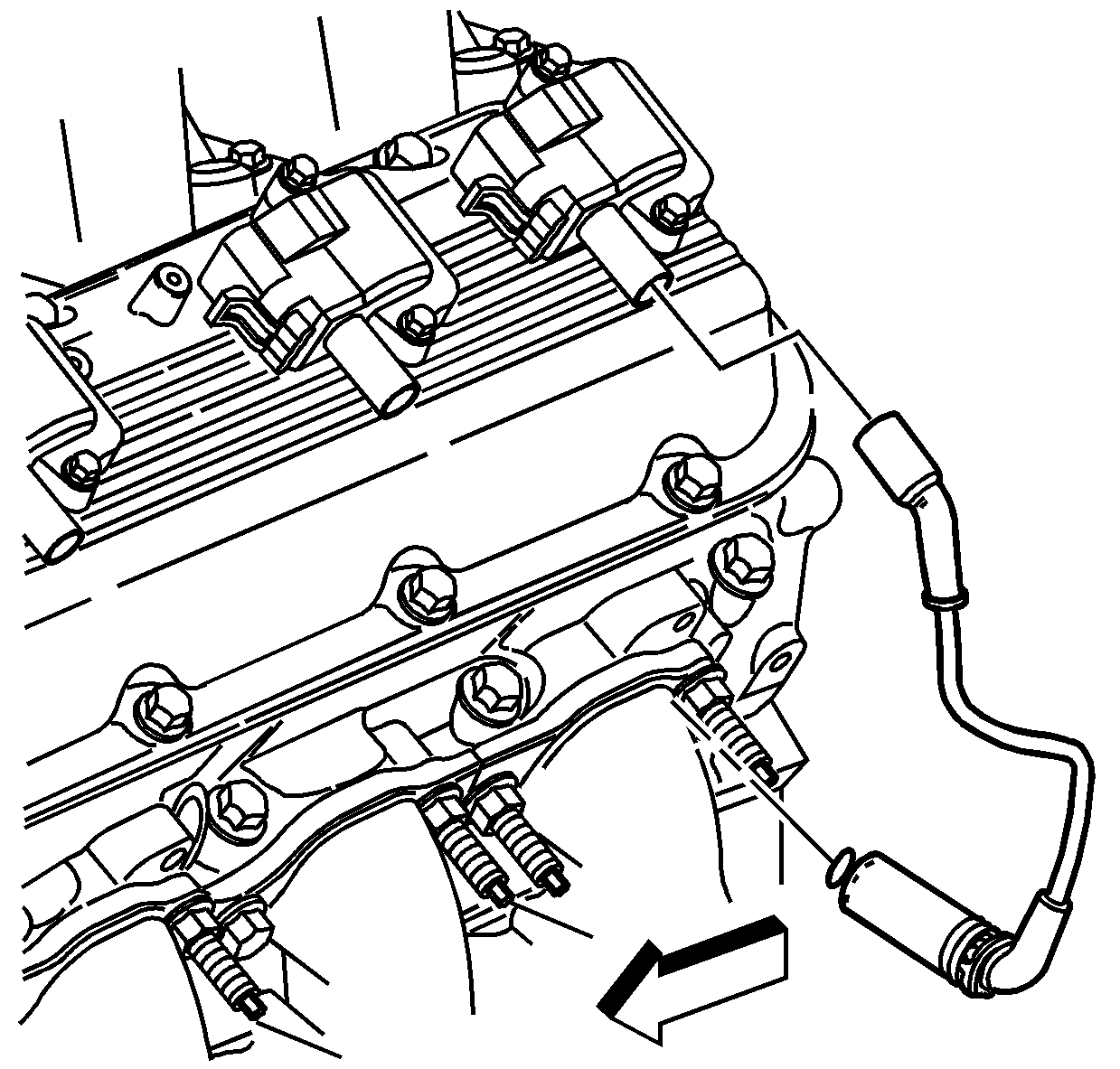

    9. Fig 3: View Of Spark Plug Wire
    GM470666Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Fully install the spark plug wire by pushing on the exposed end of the spark plug boot. Do not push the spark plug wire on to the spark plug by using the metal heat shield.
  9. Install the spark plug wires to the spark plugs and ignition coils.
  10. Install the wheelhouse panel. Refer to Wheelhouse Panel Replacement in Body Front End.
