Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the exhaust manifold with gasket.

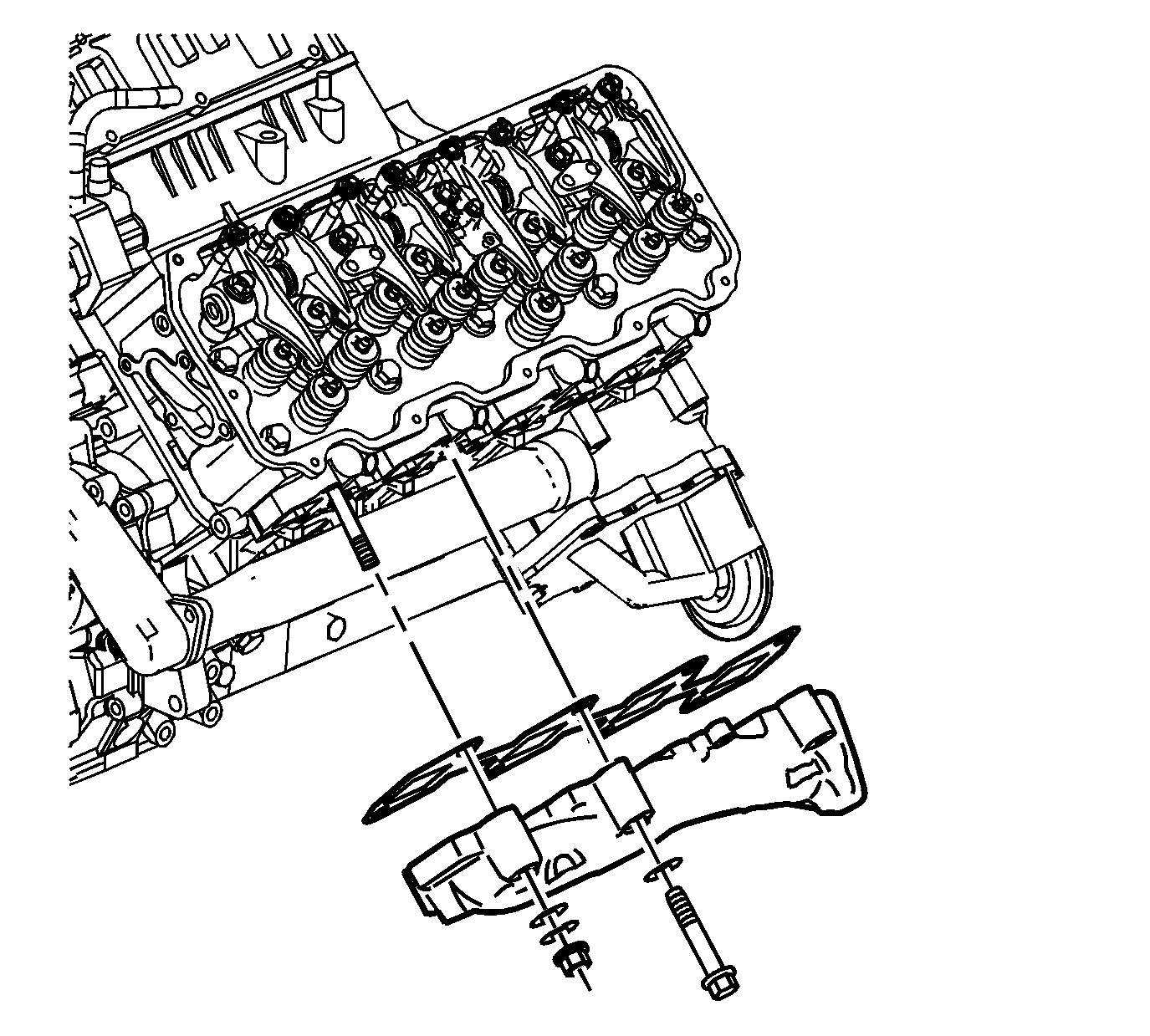

Fig 1: View Of Exhaust Manifold (6.6L (LLY) Engine)
Courtesy of GENERAL MOTORS CORP.
Install the exhaust manifold bolts/nuts.

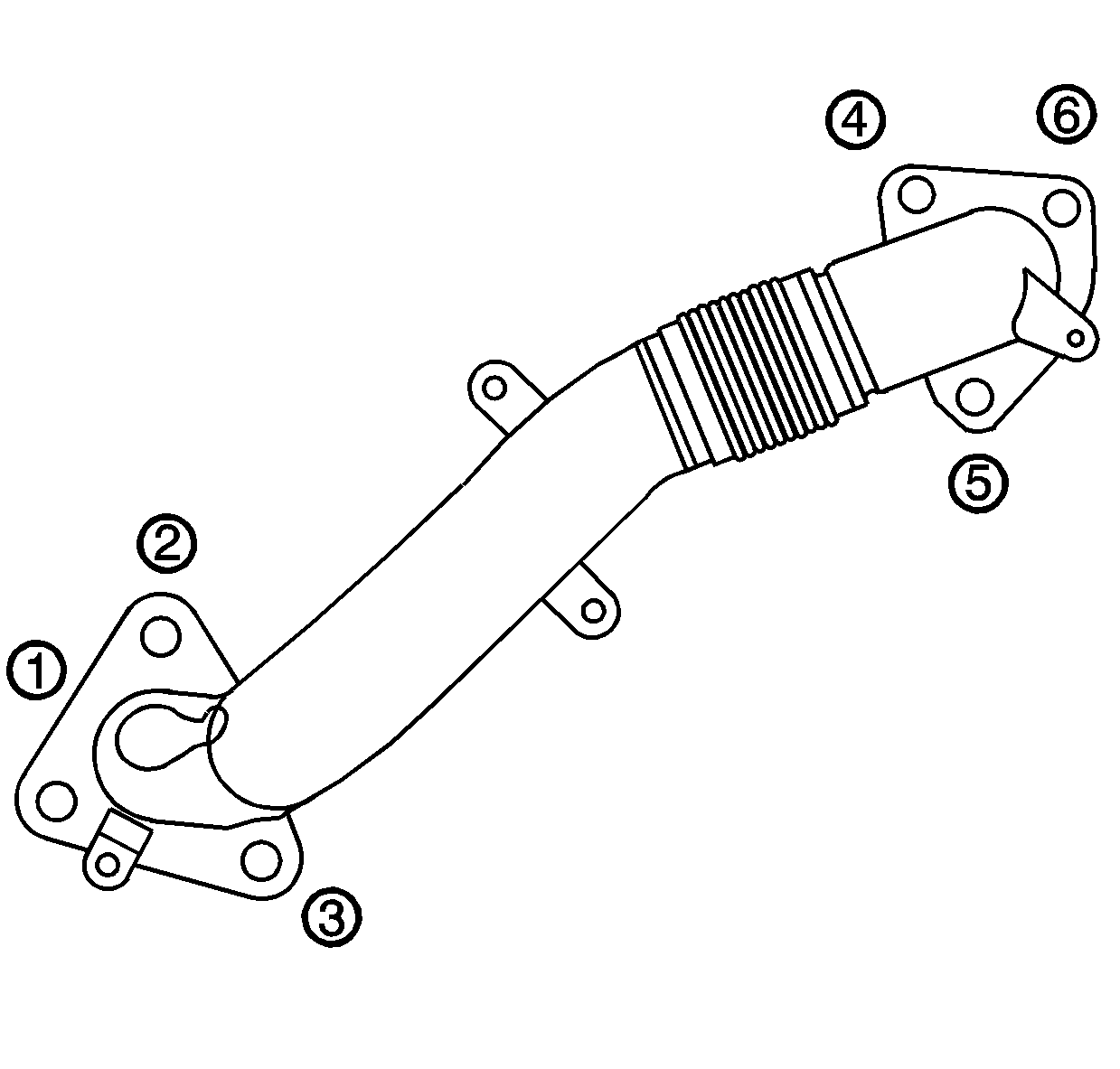

Fig 2: Exhaust Manifold Bolts And Nuts Removal Sequence (6.6L (LLY) Engine)

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Use the sequence shown to properly tighten the exhaust manifold bolts.
Tighten: Tighten the bolts/nut to 38 N.m (28 lb ft).

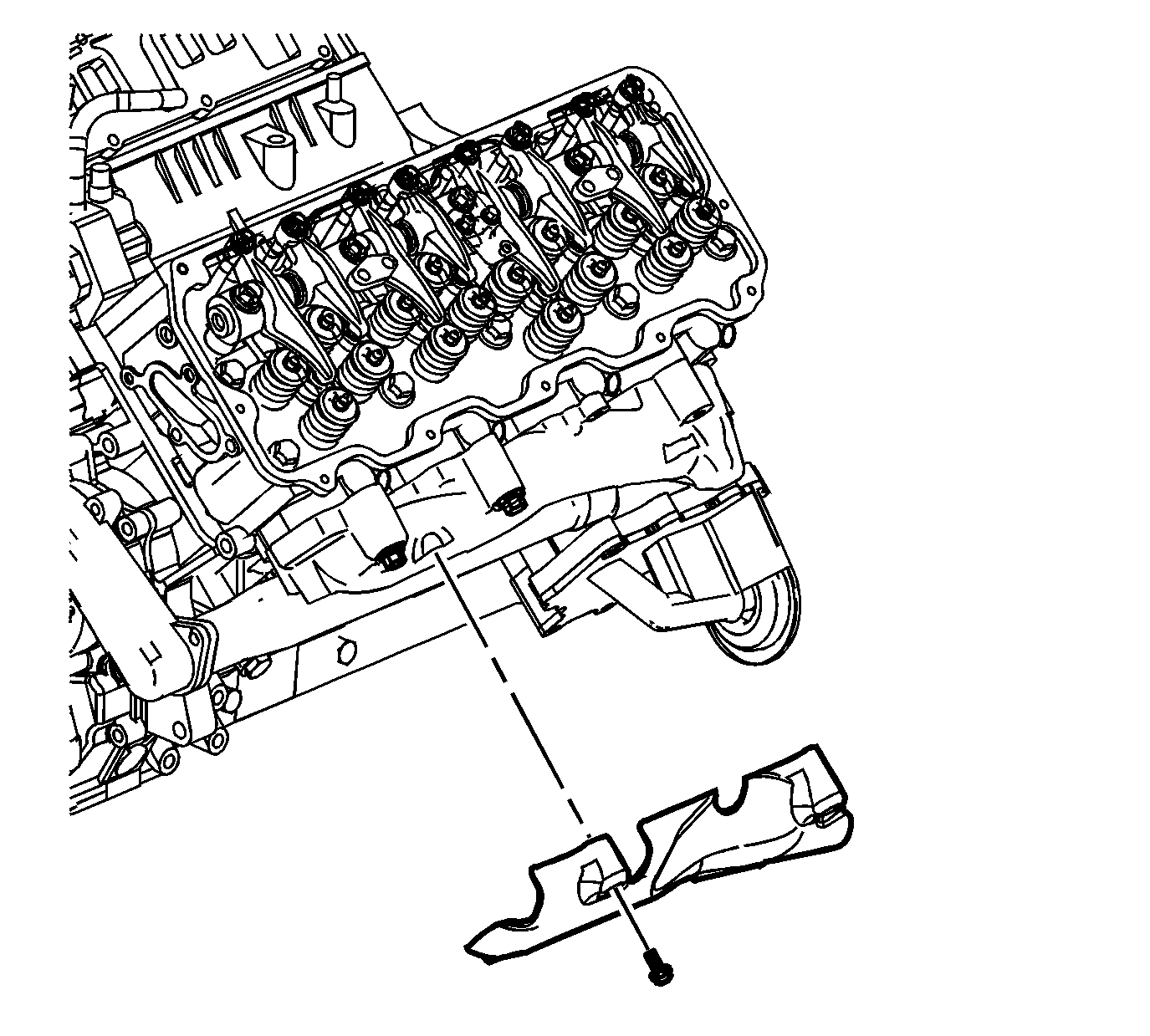

Fig 3: Exhaust Manifold Heat Shield Bolt (6.6L (LLY) Engine)

Courtesy of GENERAL MOTORS CORP.

Install the exhaust manifold heat shield.
Install the exhaust manifold heat shield bolts.
Tighten: Tighten the bolts to 8 N.m (71 lb in).

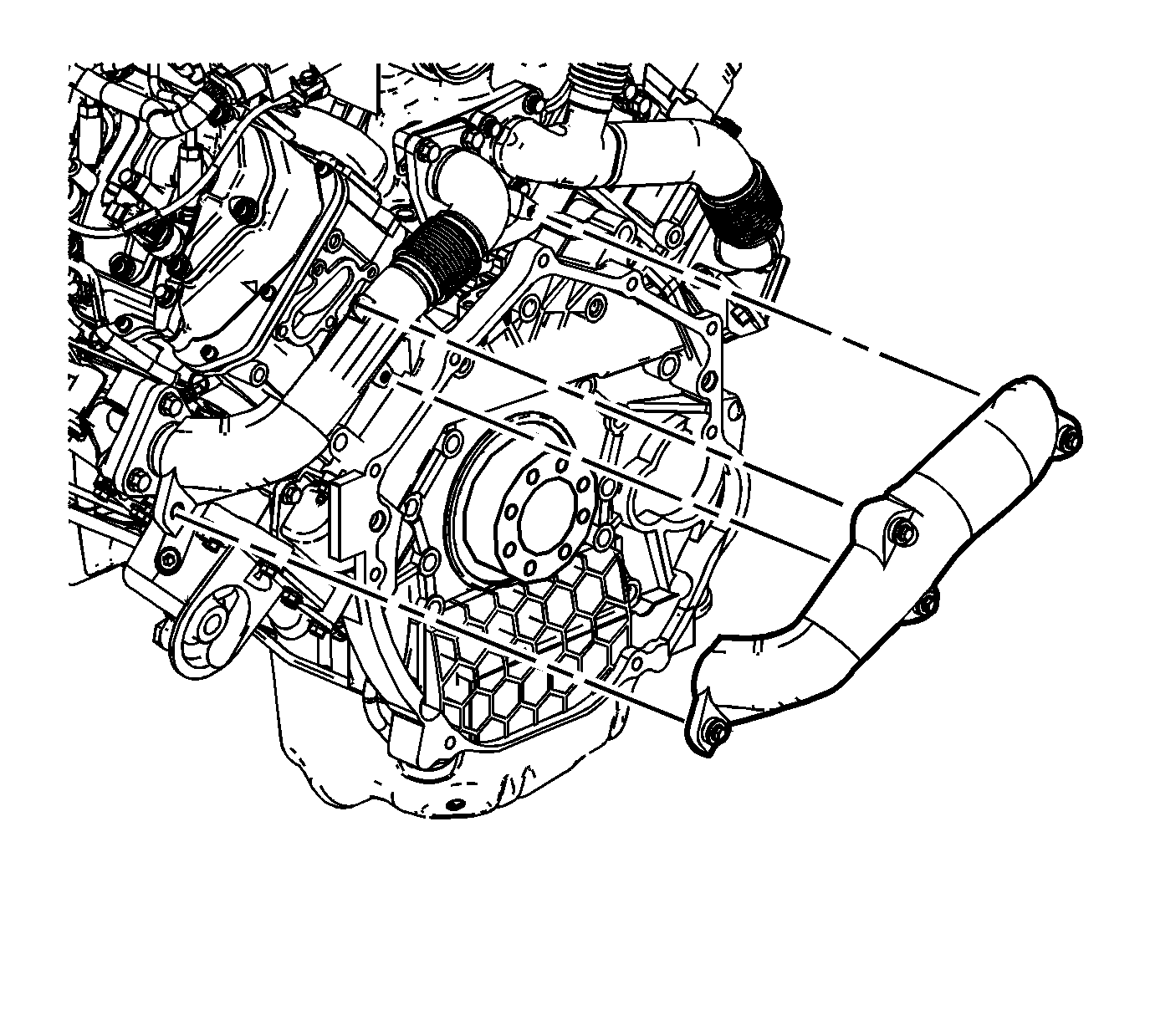

Fig 4: Exhaust Pipe To Exhaust Manifold Bolts (6.6L (LLY) Engine)

Courtesy of GENERAL MOTORS CORP.

Install the exhaust pipe gasket. Align the tab on the gasket to face outward.
Install the exhaust pipe and the bolts (1, 2, and 3) to the exhaust manifold.
Tighten: Tighten the bolts to 53 N.m (39 lb ft).

Fig 5: Exhaust Pipe Heat Shield Bolts (6.6L (LLY) Engine)

Courtesy of GENERAL MOTORS CORP.

Raise the vehicle.
Install the exhaust pipe heat shield bolts.
Tighten: Tighten the bolts to 8 N.m (71 lb in).
Install the charged air cooler outlet duct. Refer to Charged Air Cooler Hoses/Pipes Replacement (Left) or Charged Air Cooler Hoses/Pipes Replacement (Right) in Engine Mechanical - 6.6L (LLY).
Install the wheelhouse panel. Refer to Wheelhouse Panel Replacement in Body Front End.
Lower the vehicle.
