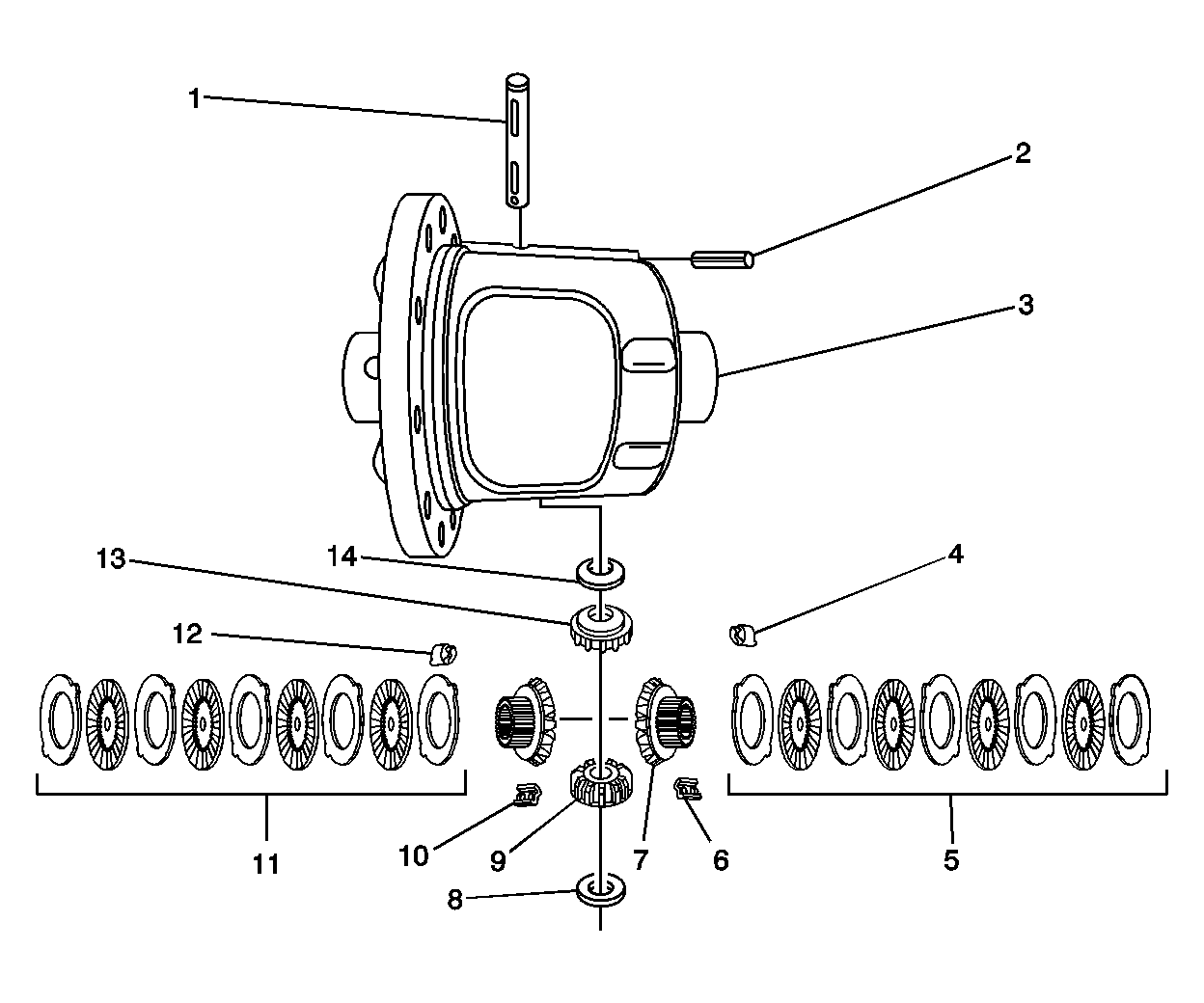

Limited Slip Differential Disassembled Views
WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Pinion Mate Shaft |
| 2 |
Roll Pin |
| 3 |
Differential Housing |
| 4 |
Retainer |
| 5 |
Clutch Pack |
| 6 |
Retainer |
| 7 |
Differential Side Gear |
| 8 |
Pinion Gear Thrust Washer |
| 9 |
Differential Pinion Gear |
| 10 |
Retainer |
| 11 |
Clutch Pack |
| 12 |
Retainer |
| 13 |
Differential Pinion Gear |
| 14 |
Pinion Gear Thrust Washer |
