Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate the tie rod threads with chassis lubricant. Refer to Fluid and Lubricant Recommendations in Maintenance and Lubrication.
Install the tie rod end (4) to the shaft (6).

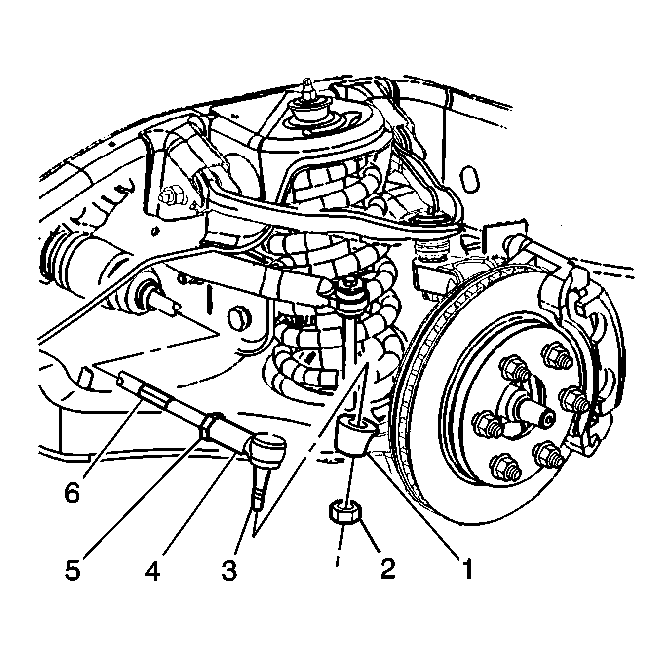

Fig 1: Front Tie Rod Components
Courtesy of GENERAL MOTORS CORP.
Install the outer tie rod ball stud (3) to the steering knuckle (1).
Install the new prevailing torque nut (2) to the outer tie rod ball stud (3).

Fig 2: Installing The New Prevailing Torque Nut To The Outer Tie Rod Ball Stud
Courtesy of GENERAL MOTORS CORP.

Tighten:
- Tighten the nut to 50 N.m (37 lb ft) for 15 series vehicles.
- Tighten the nut to 65 N.m (48 lb ft) for 25/35 series vehicles.
Adjust the front toe. Refer to Measuring Wheel Alignment (w/Rear Wheel Steering) or Measuring Wheel Alignment (w/o Rear Wheel Steering) in Wheel Alignment.
