Special Tools

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Number/Description
Courtesy of GENERAL MOTORS CORP.	J 7872 Dial Indicator Set

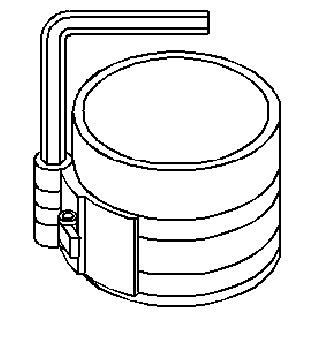

Courtesy of GENERAL MOTORS CORP.	J 8037 Piston Ring Compressor
Courtesy of GENERAL MOTORS CORP.	J 8062 Valve Spring Compressor

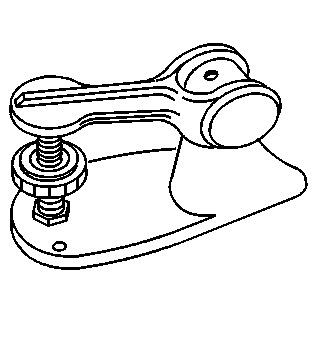

Courtesy of GENERAL MOTORS CORP.	J 9666 Valve Spring Tester
Courtesy of GENERAL MOTORS CORP.	J 24270 Ridge Reamer
Courtesy of GENERAL MOTORS CORP.	J 25033-C Pulley Installer
Courtesy of GENERAL MOTORS CORP.	J 25034-C Pulley Remover
Courtesy of GENERAL MOTORS CORP.	J 26900-12 Dial Indicator
Courtesy of GENERAL MOTORS CORP.	J 26900-13 Magnetic Base

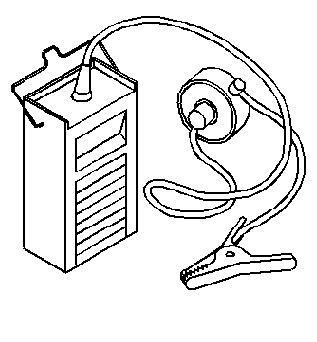

Courtesy of GENERAL MOTORS CORP.	J 26999 Compression Gage

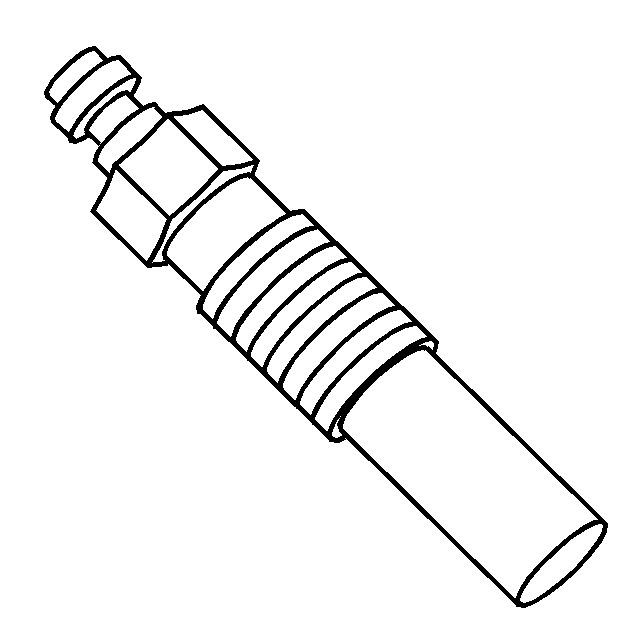

Courtesy of GENERAL MOTORS CORP.	J 26999-20 Compression Gage Adapter

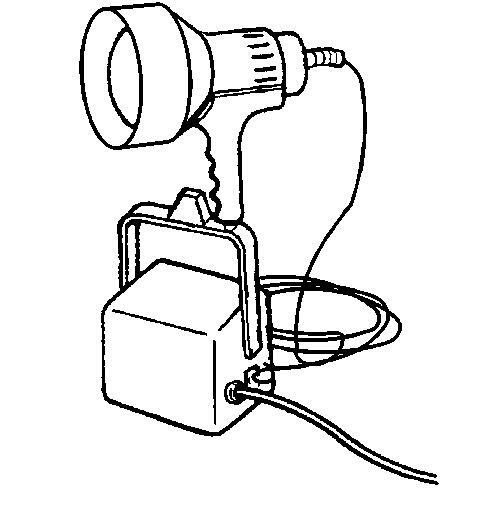

Courtesy of GENERAL MOTORS CORP.	J 28428-E High Intensity Black Light
Courtesy of GENERAL MOTORS CORP.	J 35667-9 Cylinder Head Leakdown Adapter

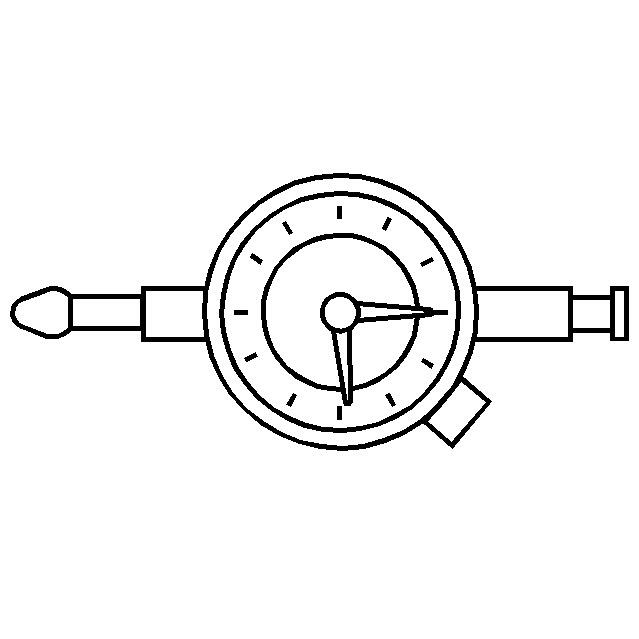

Courtesy of GENERAL MOTORS CORP.	J 36660-A Torque Angle Meter
Courtesy of GENERAL MOTORS CORP.	J 36857 Engine Lift Bracket
Courtesy of GENERAL MOTORS CORP.	J 37228 Seal Cutter
Courtesy of GENERAL MOTORS CORP.	J 38820 Valve Stem Oil Seal Remover
Courtesy of GENERAL MOTORS CORP.	J 41712 Oil Pressure Switch Socket
Courtesy of GENERAL MOTORS CORP.	J 43181 Quick Connect Connector Remover
Courtesy of GENERAL MOTORS CORP.	J 43244 Relay Puller Pliers
Courtesy of GENERAL MOTORS CORP.	J 43654 Piston Pin Retainer Clip Remover/Installer
Courtesy of GENERAL MOTORS CORP.	J 44639 Fuel Injector Puller
Courtesy of GENERAL MOTORS CORP.	J 44640 Valve Stem Seal Installer
Courtesy of GENERAL MOTORS CORP.	J 44641 Crankshaft Rear Oil Seal Remover
Courtesy of GENERAL MOTORS CORP.	J 44642 Crankshaft Rear Oil Seal Installer
Courtesy of GENERAL MOTORS CORP.	J 44643 Flywheel Holding Tool
Courtesy of GENERAL MOTORS CORP.	J 44644 Crankshaft Front Oil Seal Remover
Courtesy of GENERAL MOTORS CORP.	J 44645 Crankshaft Front Oil Seal Installer

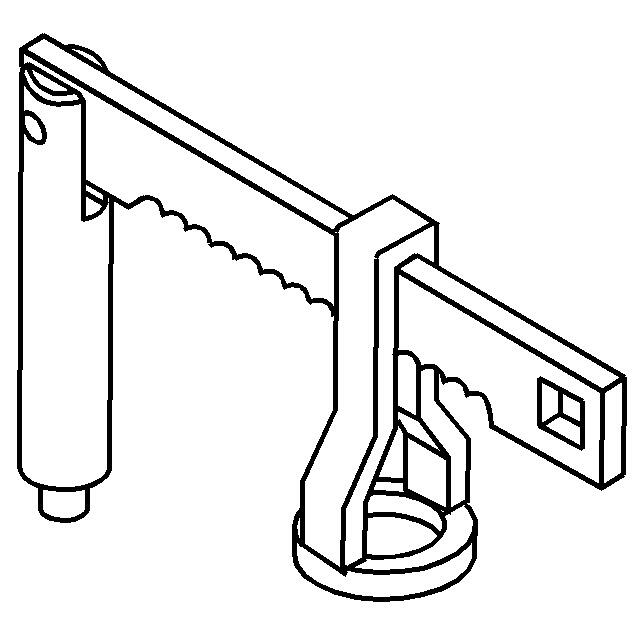

Courtesy of GENERAL MOTORS CORP.	J 44646 Valve Spring Compressor

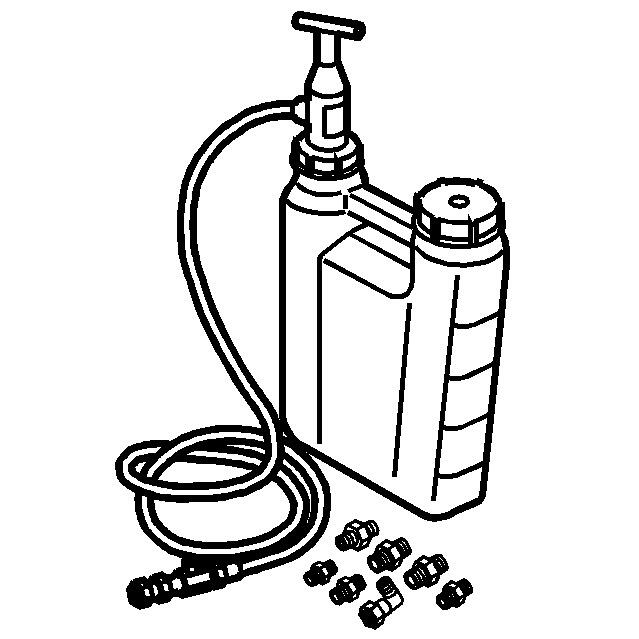

Courtesy of GENERAL MOTORS CORP.	J 45299 Engine Preluber
Courtesy of GENERAL MOTORS CORP.	J 45910 Fuel Injector Sleeve Remover/Installer
