Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  3. Remove the brake rotor. Refer to Brake Rotor Replacement - Front in Disc Brakes.

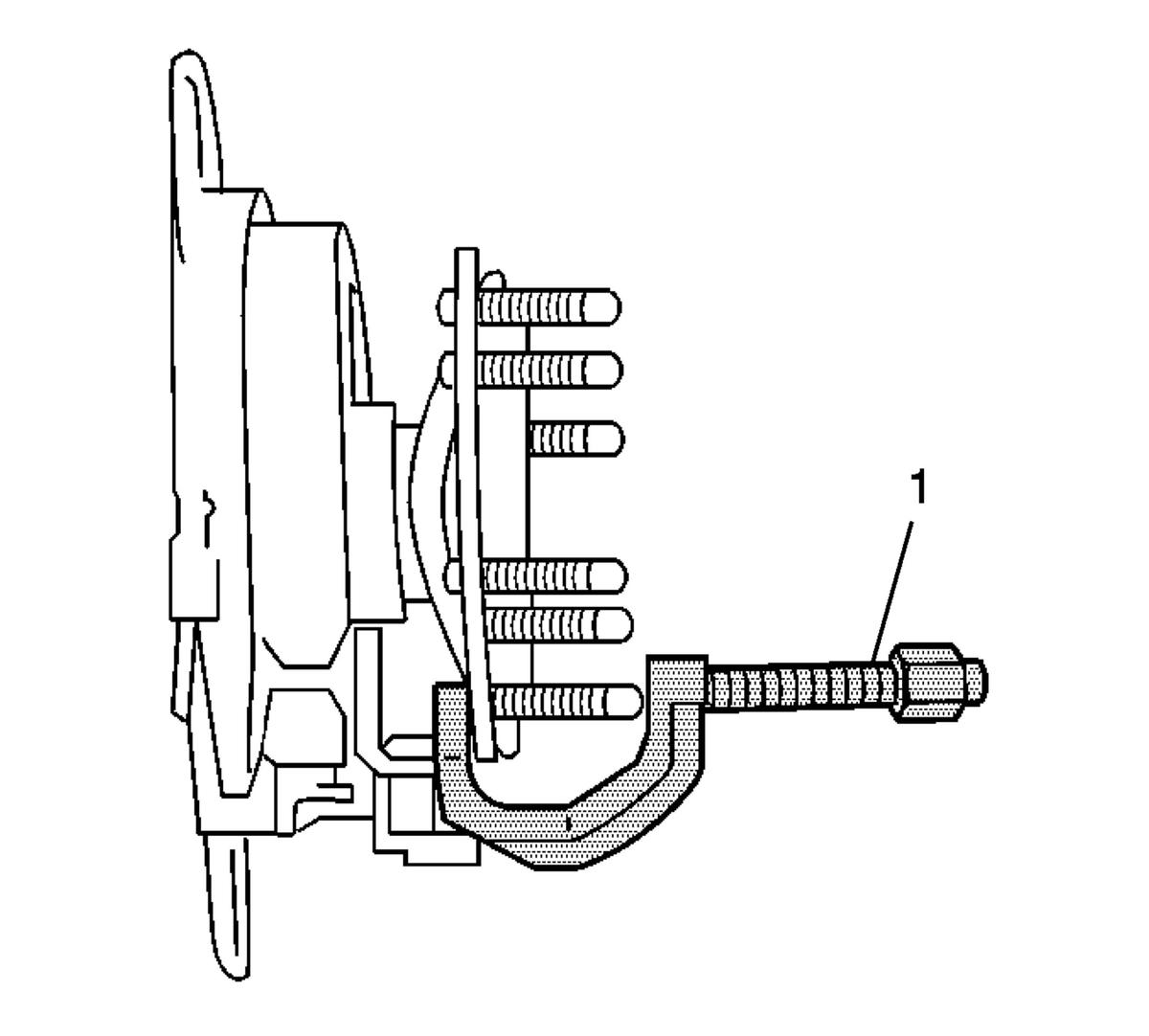

    4. Fig 1: Removing The Wheel Stud From The Hub Flange
    GM361843Courtesy of GENERAL MOTORS CORP.
  4. Remove the wheel stud from the hub flange using the J 43631  .
  5. Remove the wheel stud from the hub flange.
