Vehicle Speed Sensor (Transmission): Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 GMC C3500 HD, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Coat a new O-ring seal with a thin film of transmission fluid. Replace the O-ring on the vehicle speed sensor assembly and install the vehicle speed sensor assembly. See Fig 2-Fig 4 . Tighten the vehicle speed sensor retaining bolt to specification. See TORQUE SPECIFICATIONS . Connect the harness connector to the sensor. See Fig 1. Lower the vehicle.

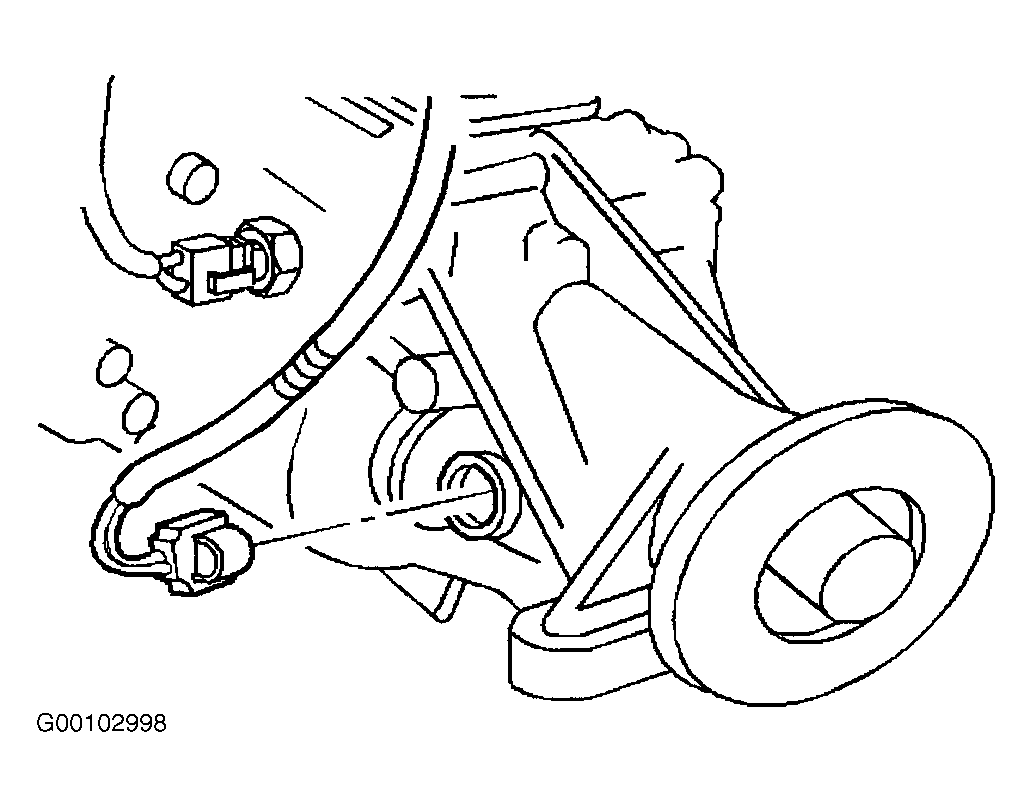

Fig 1: Removing & Installing VSS Harness Connector (NV3500)

Courtesy of GENERAL MOTORS CORP.

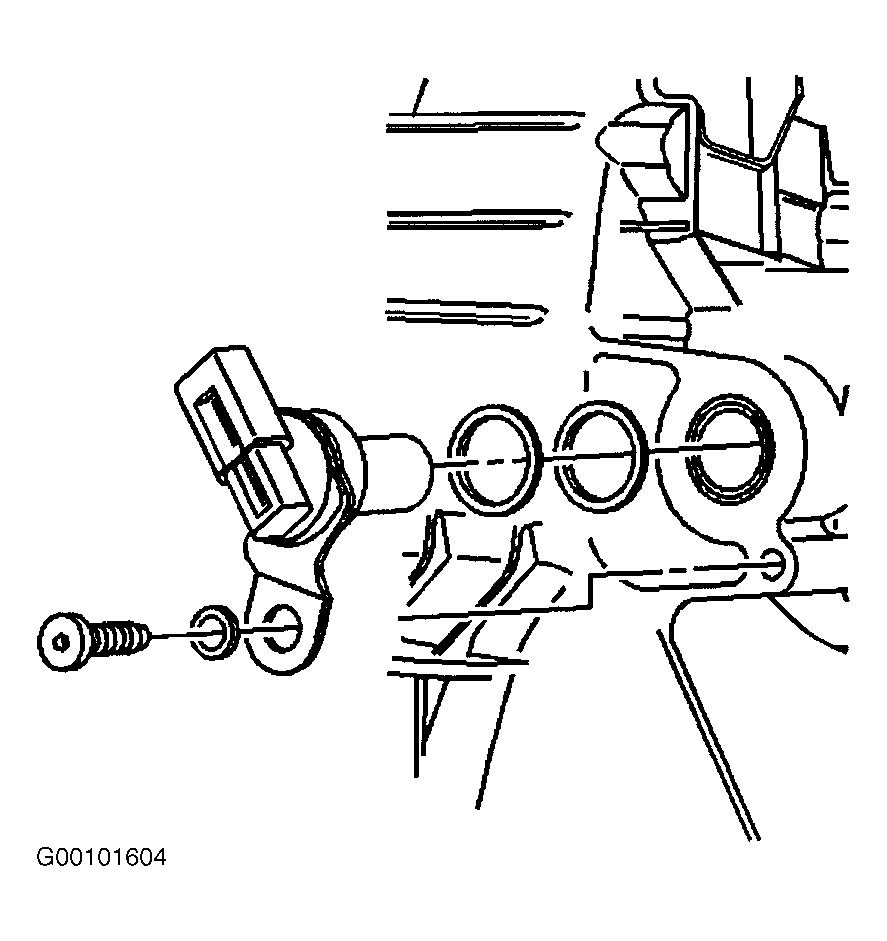

Fig 2: Removing & Installing VSS Assembly (NV3500)

Courtesy of GENERAL MOTORS CORP.

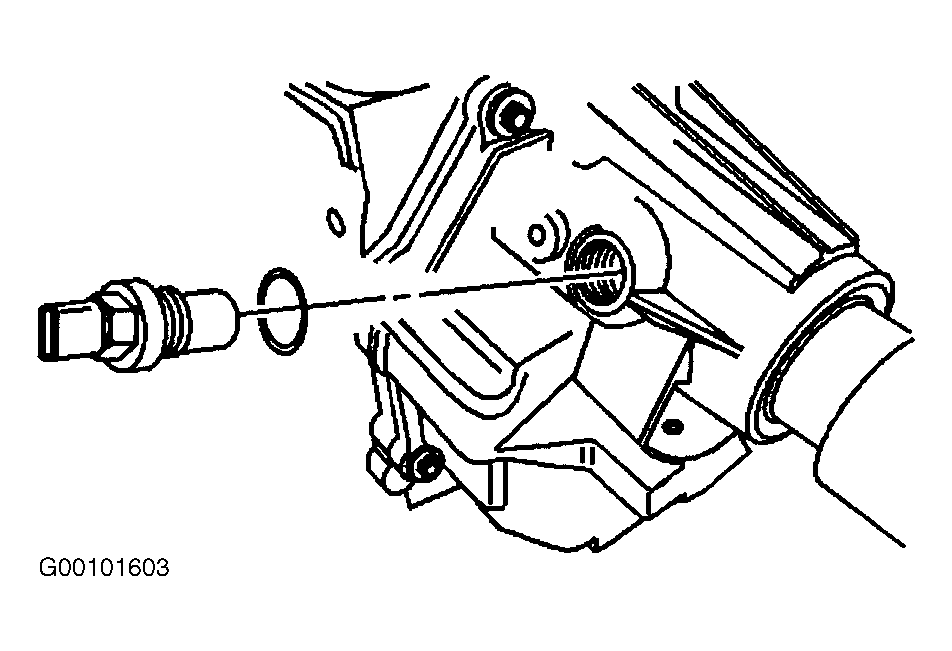

Fig 3: Removing & Installing VSS Assembly (NV4500)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Removing & Installing VSS Assembly (ZF S6-650)

Courtesy of GENERAL MOTORS CORP.
