Vehicle Speed Sensor (Transfer Case): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 GMC C3500 HD, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Remove the harness connector from the speed sensor. Remove the speed sensor from the transfer case. See Fig 1 and Fig 2 .

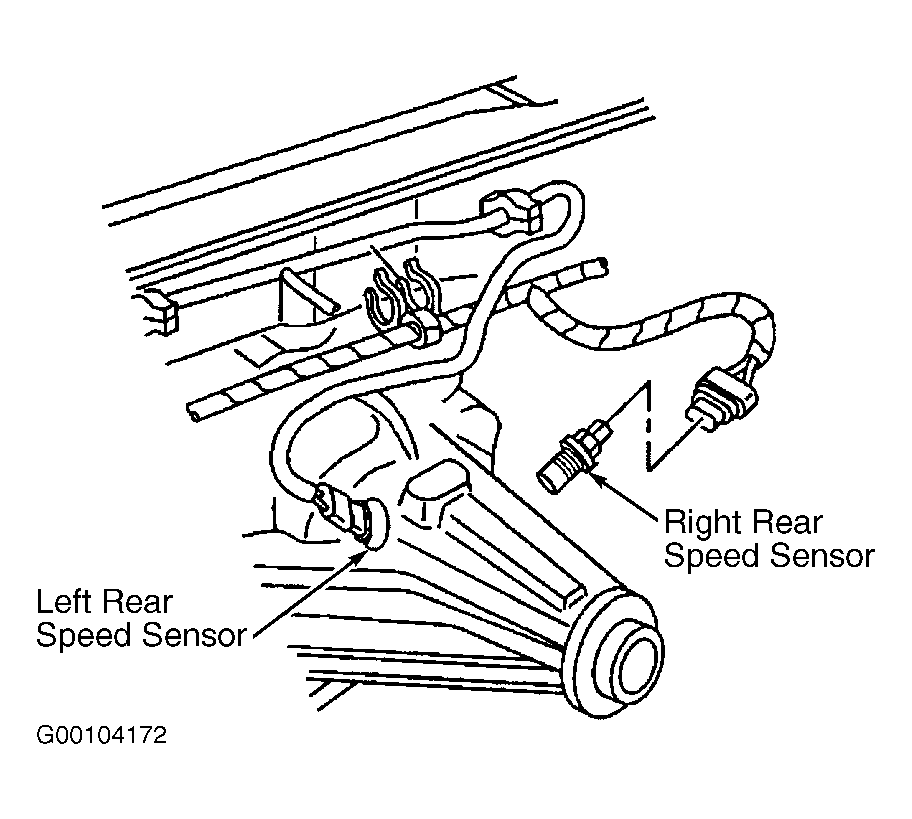

Fig 1: Removing & Installing Transfer Case Vehicle Speed Sensor

Courtesy of GENERAL MOTORS CORP.

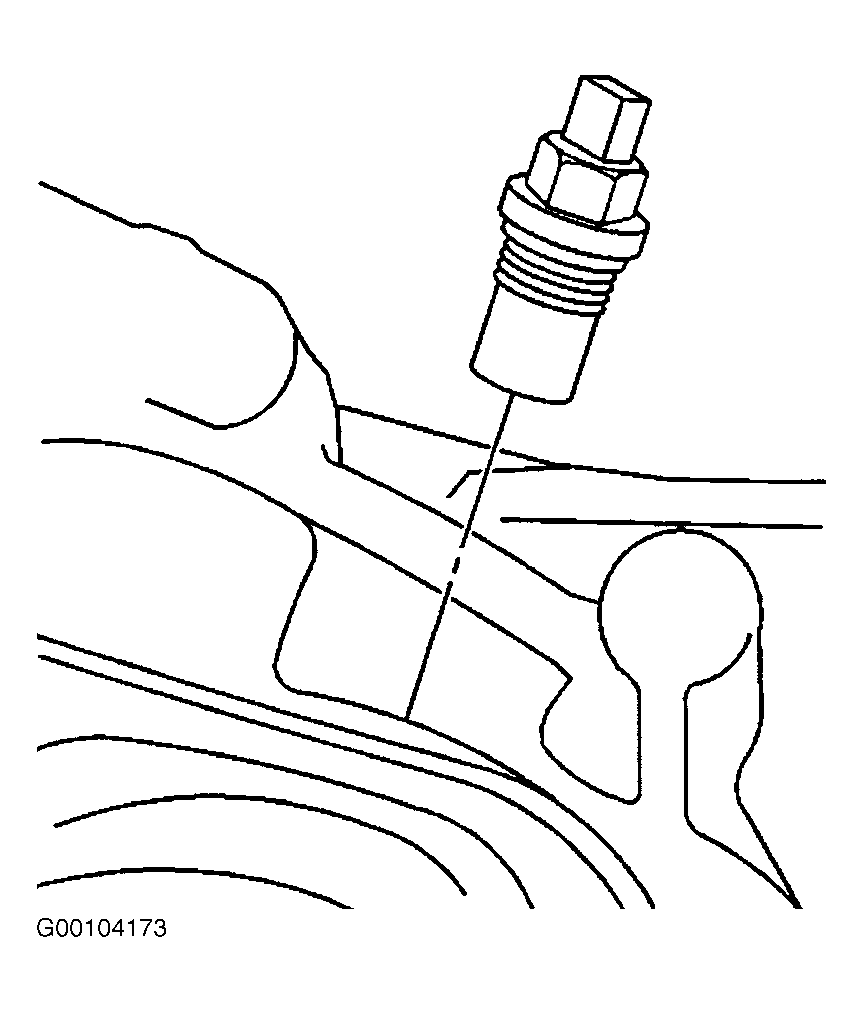

Fig 2: Removing & Installing Right & Left Transfer Case Vehicle Speed Sensor (NV246)

Courtesy of GENERAL MOTORS CORP.
