Transmission Rear Oil Seal (NV4500 & ZF S6-650): Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 GMC C3500 HD, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
The Output Shaft Oil Seal Installer (J-44732) will set the oil seal to the proper depth. Failure to use the output shaft oil seal installer will cause improper installation of the oil seal.

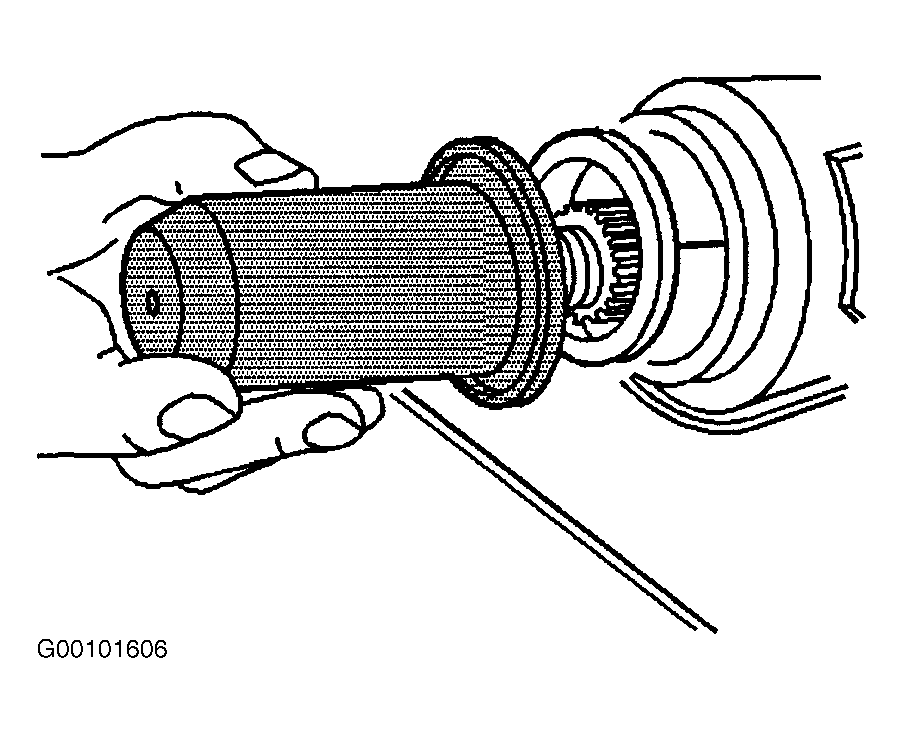

- Using output shaft oil seal installer install the rear oil seal. See Fig 1. Install the yoke. Use the pinion flange holder in order to hold the yoke.

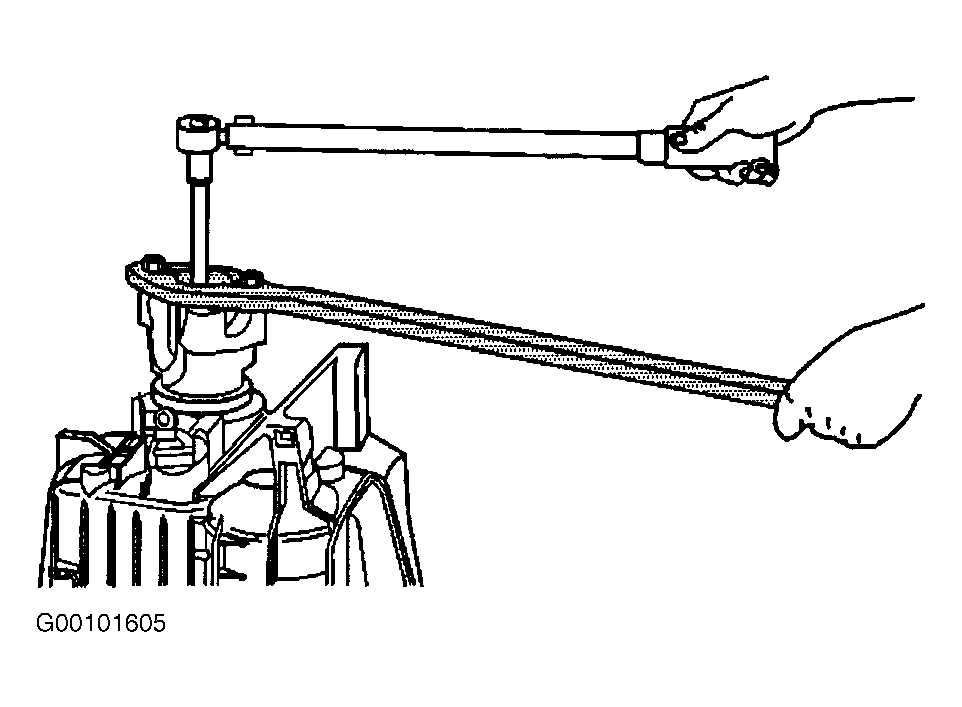

- Install a NEW yoke nut. Tighten the yoke nut to specification. See TORQUE SPECIFICATIONS . See Figure. Install the rear propeller shaft. See appropriate DRIVE SHAFTS & UNIVERSAL JOINTS article in DRIVE AXLES.
- Fill transmission with appropriate fluid to proper level. See LUBRICATION . Lower the vehicle.
