Back-Up Light Switch: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 GMC C3500 HD, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Raise and suitably support the vehicle. Disconnect the back-up light switch harness connector. Remove the back-up light switch. See Fig 1-Fig 3 .

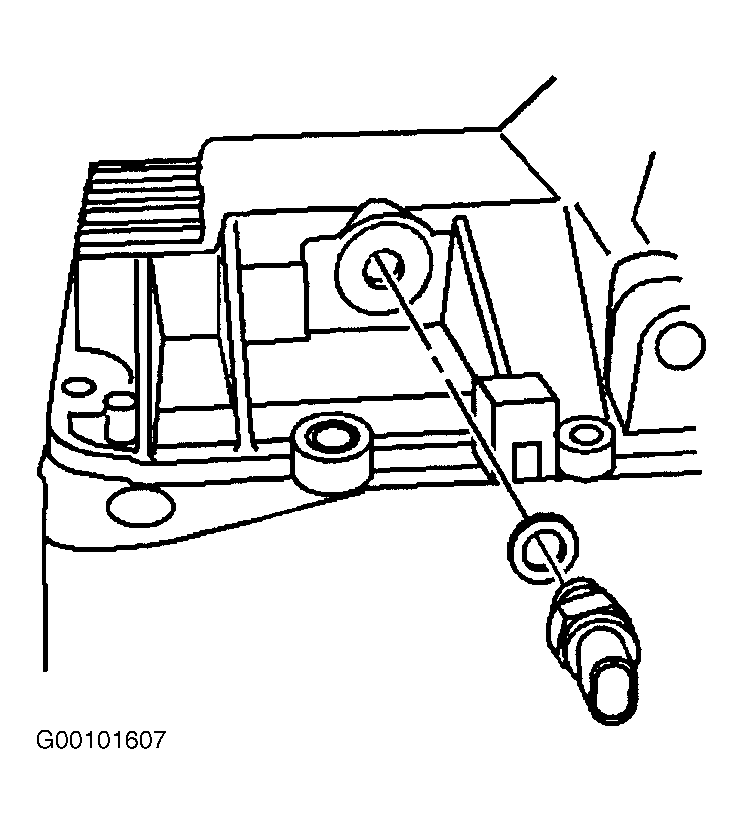

Fig 1: Removing & Installing Back-Up Light Switch (NV3500)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Removing & Installing Back-Up Light Switch (NV4500)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Removing & Installing Back-Up Light Switch (ZF S6-650)

Courtesy of GENERAL MOTORS CORP.
