Back-Up Light Switch: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 GMC C3500 HD, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

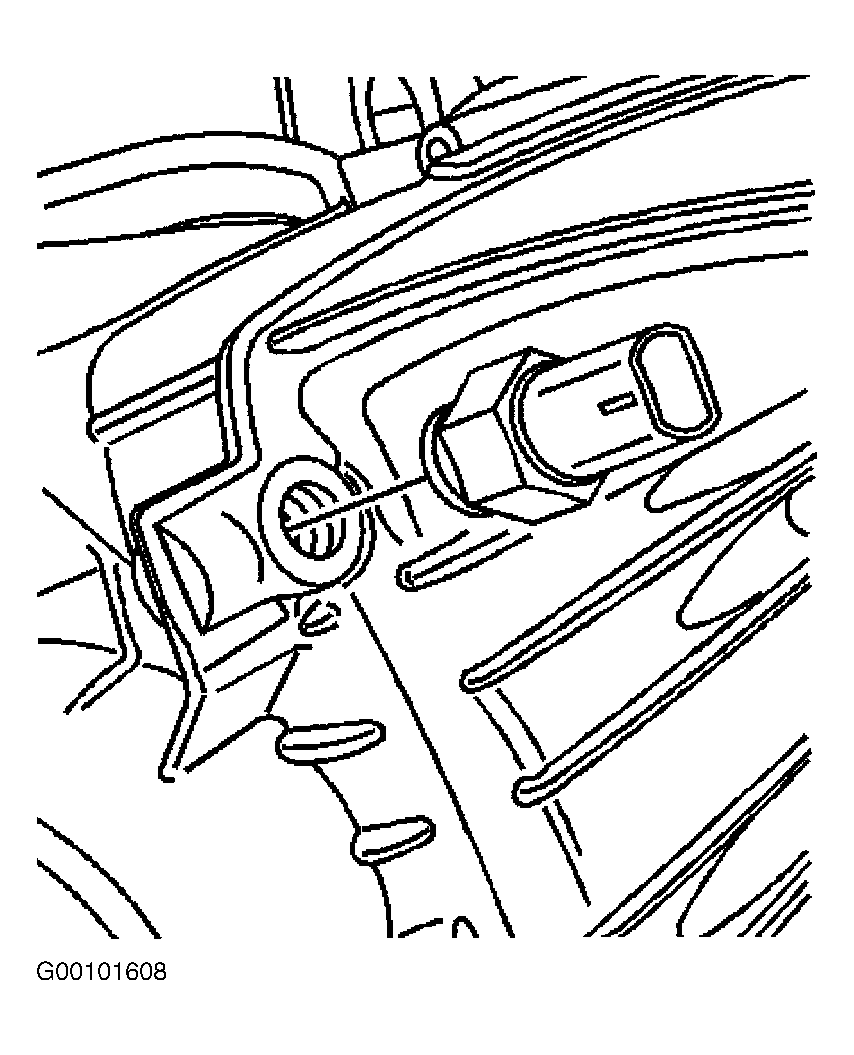

The back-up light switch has pre-applied thread sealant on the threads. Install the back-up light switch. See Figure-Figure . Tighten the back-up light switch to specification. See TORQUE SPECIFICATIONS . Connect the back-up light switch harness connector. Lower the vehicle.
