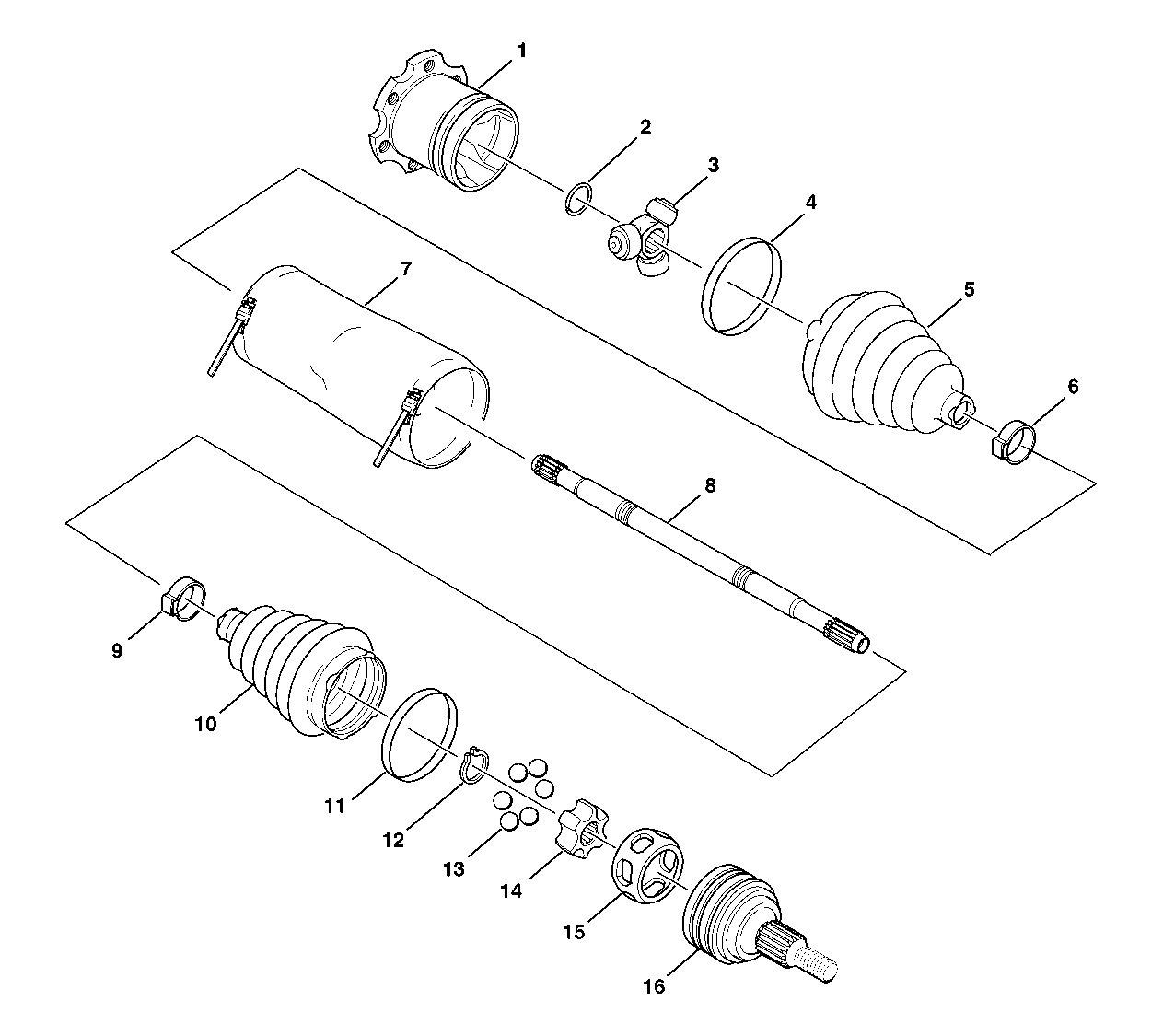

Wheel Drive Shafts Disassembled Views
WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Tripot Housing Assembly |
| 2 | Spacer Ring |
| 3 | Tripot Joint Spider Assembly |
| 4 | Swage Ring |
| 5 | Tripot Joint Boot |
| 6 | Small Boot Retaining Clamp |
| 7 | Halfshaft Boot Cover (Optional) |
| 8 | Halfshaft Bar |
| 9 | Small Boot Retaining Clamp |
| 10 | CV Joint Boot |
| 11 | Swage Ring |
| 12 | Race Retaining Ring |
| 13 | Ball |
| 14 | CV Joint Inner Race |
| 15 | CV Joint Cage |
| 16 | CV Joint Outer Race |
